Remove and install/replace lower part of steering column shroud (Cooper)

Preliminary work needed:

• Adjust steering column to "extended" and "top" position.

Removal:

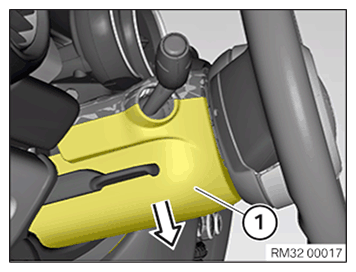

Detach steering column shroud lower section (1) downwards.

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip emergency start antenna (1).

Remove steering column shroud lower section (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

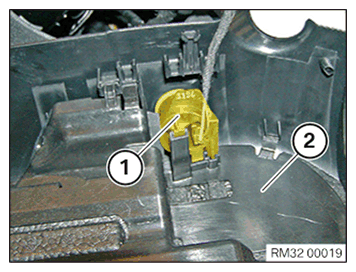

Insert emergency start antenna (1) into steering column shroud lower section (2).

Courtesy of BMW OF NORTH AMERICA, INC.

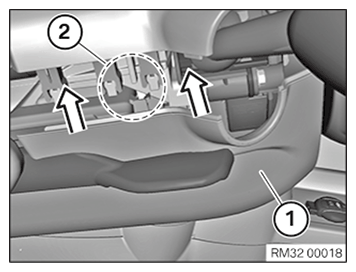

Connect and lock steering column shroud lower section (1) onto steering column.

• Make sure when doing this that guide of the steering column is inserted into guide of steering column shroud (2)!

Courtesy of BMW OF NORTH AMERICA, INC.
