51 46 000 Removing and installing/replacing trim for rear parcel shelf

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim panels for roof pillar at rear (C-pillar) left/right, refer to 51 43 255 REMOVING AND INSTALLING / REPLACING TRIM FOR REAR LEFT OR RIGHT ROOF PILLAR (FRONT)
Remove trim on C-pillar at bottom left/right, refer to 51 43 230 REMOVING AND INSTALLING / REPLACING TRIM ON C-PILLAR AT BOTTOM LEFT OR RIGHT
Remove ski bag cover, refer to 52 25 030 REMOVING AND INSTALLING COMPLETE ARMREST FOR REAR SEAT BACKREST
Remove decorative strip on parcel shelf, refer to 51 46 009 REMOVING AND INSTALLING/REPLACING DECORATIVE STRIP FOR ODDMENTS TRAY (BACK SHELF)
Remove speaker at rear left/right, refer to 65 13 180 REMOVING AND INSTALLING/REPLACING REAR SPEAKER BOX (IN REAR SHELF)
Remove ventilation grille, refer to 63 25 000 REMOVING AND INSTALLING/REPLACING ADDITIONAL STOP LIGHT

Version without electric rear seat adjustment

Remove backrest for rear seat, refer to 52 24 015 REMOVING AND INSTALLING/REPLACING BACKREST FOR LEFT OR RIGHT REAR SEAT (NORMAL)

Version with electric rear seat adjustment

Unclip cover on rear seat backrests at top, refer to 52 25 010 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR SEAT
Remove rear head restraints, refer to 52 25 390 REMOVING AND INSTALLING OR REPLACING LEFT OR RIGHT REAR HEAD RESTRAINT

E67 with roller sun blind only:

Additional work depending on optional extras

Version with roller sun blind only:

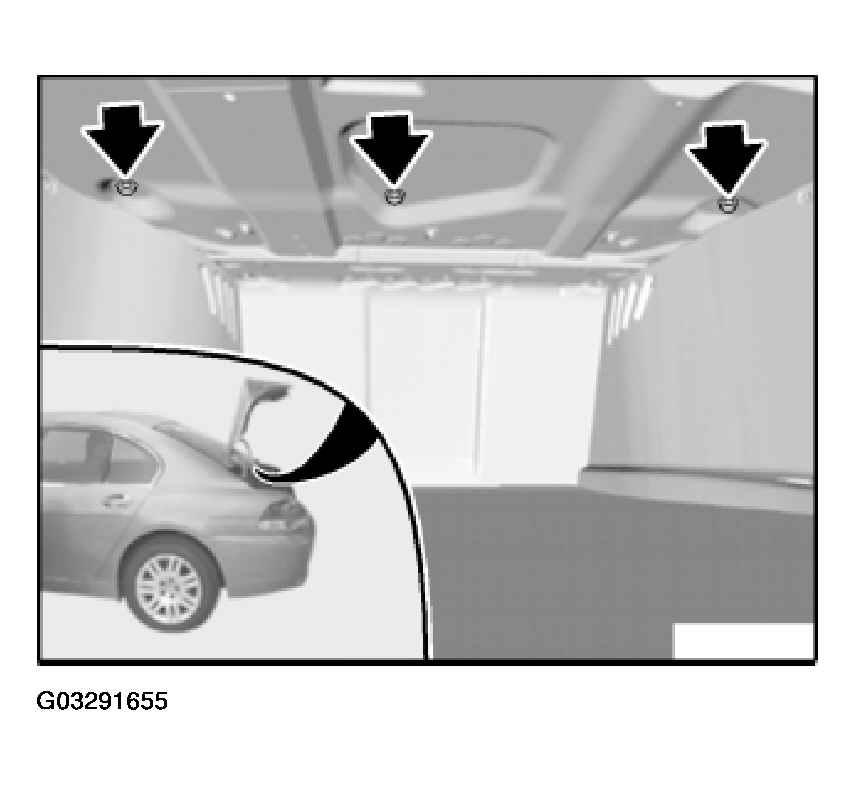

Unfasten screws.

Fig 1: Unfastening Screws

G03291655

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 51 46 3AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

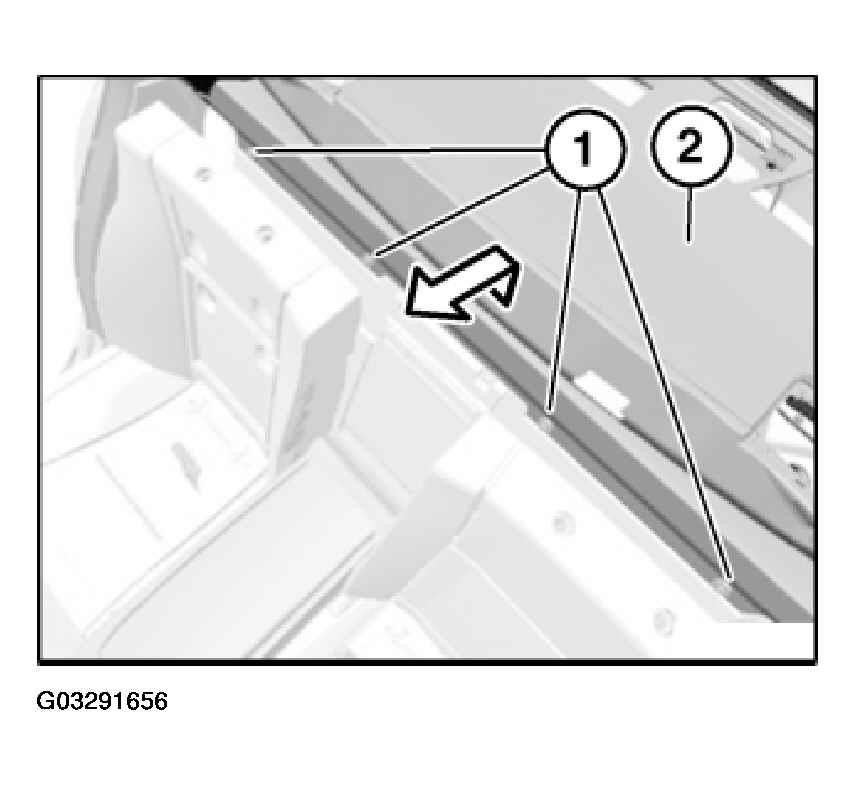

Release screws (1).

Fig 2: Releasing Screws

G03291656

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 51 46 1AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

IMPORTANT: Version with roller sun blind:
Disconnect plug connection before removing parcel shelf (2).

Remove parcel shelf (2) towards front.

The work step "Removing and installing trim for parcel shelf" ends here.

The work step "Replacing trim for parcel shelf" for version without roller sun blind ends here.

Replacement With Roller Sun Blind Version:

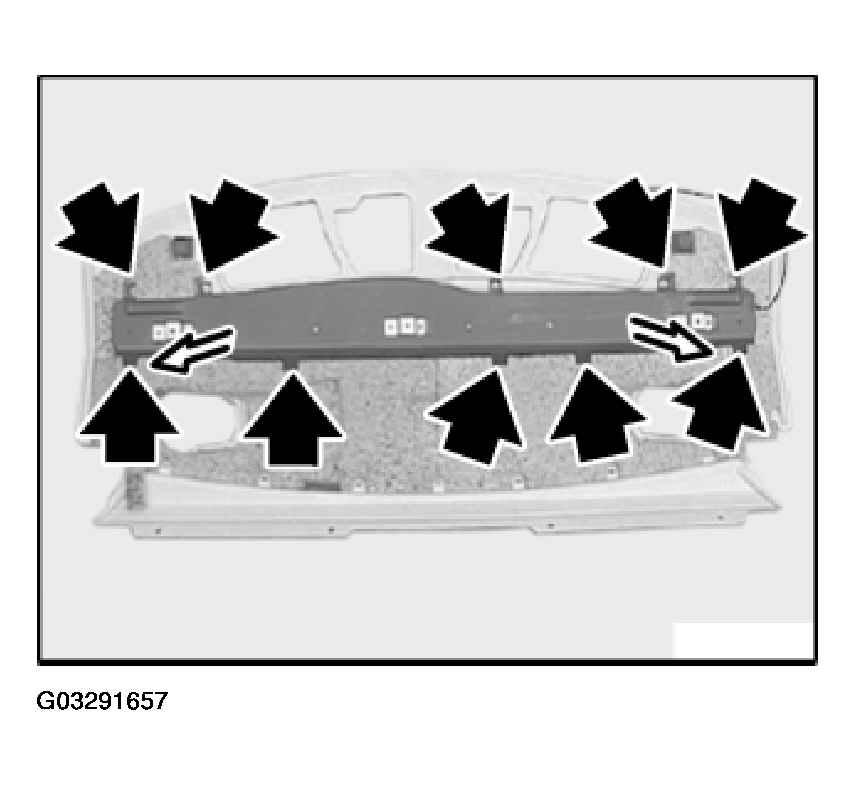

Unscrew nuts.

Fig 3: Unscrewing Nuts

G03291657

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 51 46 2AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Replacement with roller sun blind version:

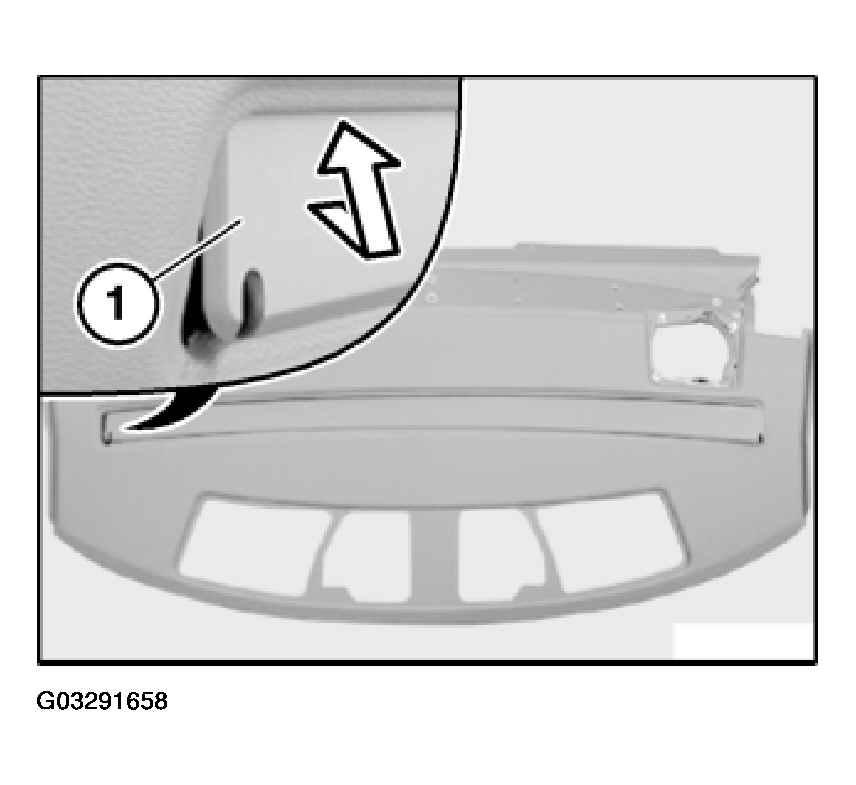

IMPORTANT: Carefully feed cover (1) out and in as there is a risk of bending.

Feed out cover (1) downwards.

Fig 4: Feeding Out Cover

G03291658

Courtesy of BMW OF NORTH AMERICA, INC.

Remove roller sun blind.

Installation:

Before feeding cover (1) in, only secure roller sun blind with nuts.
