52 25 010 Removing and installing/replacing left or right rear seat

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove flap in luggage compartment trim panel. Refer to 51 47 172 REMOVING AND INSTALLING / REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .
Remove rear head restraint. Refer to 52 25 390 REMOVING AND INSTALLING OR REPLACING LEFT OR RIGHT REAR HEAD RESTRAINT .
Remove padding for rear seat completely. Refer to 52 25 002 REMOVING AND INSTALLING PADDING FOR LEFT OR RIGHT REAR SEAT .
Remove rear entrance cover strip. Refer to 51 47 030 REMOVING AND INSTALLING/REPLACING ENTRANCE COVER STRIP, REAR (INSIDE) LEFT OR RIGHT .
Remove supplementary trim on C-pillar at bottom. Refer to 51 43 240 REMOVING AND INSTALLING/REPLACING SUPPLEMENTARY TRIM ON C-PILLAR AT BOTTOM (WITH ELECTRIC REAR SEAT ADJUSTMENT) ON LEFT OR RIGHT .
Remove trim for armrest at rear. Refer to 52 25 030 REMOVING AND INSTALLING COMPLETE ARMREST FOR REAR SEAT BACKREST .

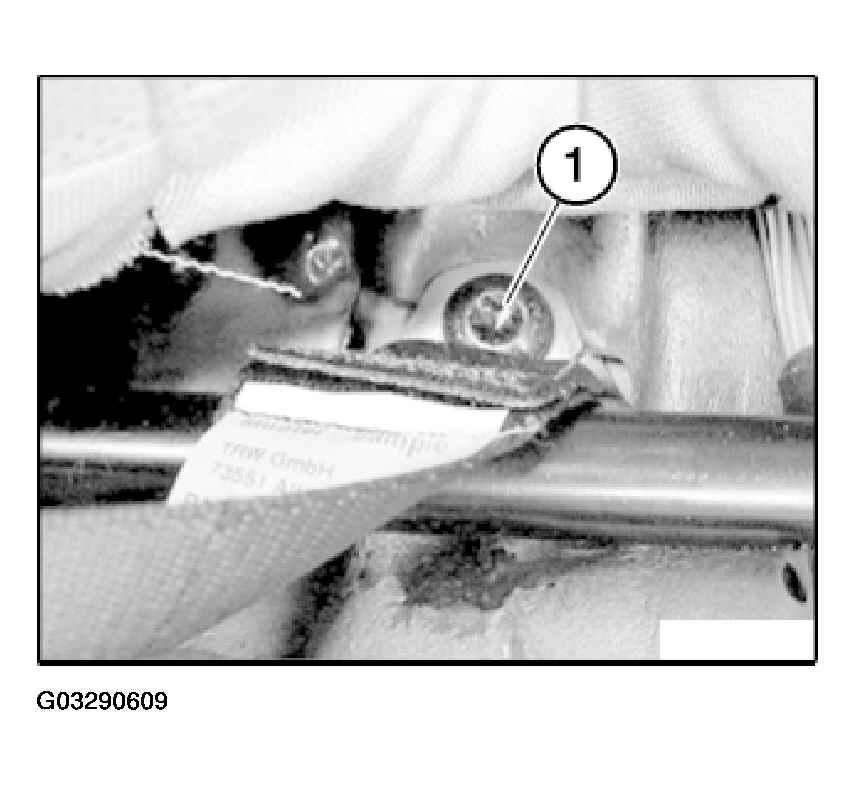

Release screw (1) for seat belt, center.

Fig 1: Removing Screw For Seat Belt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, 48 Nm.

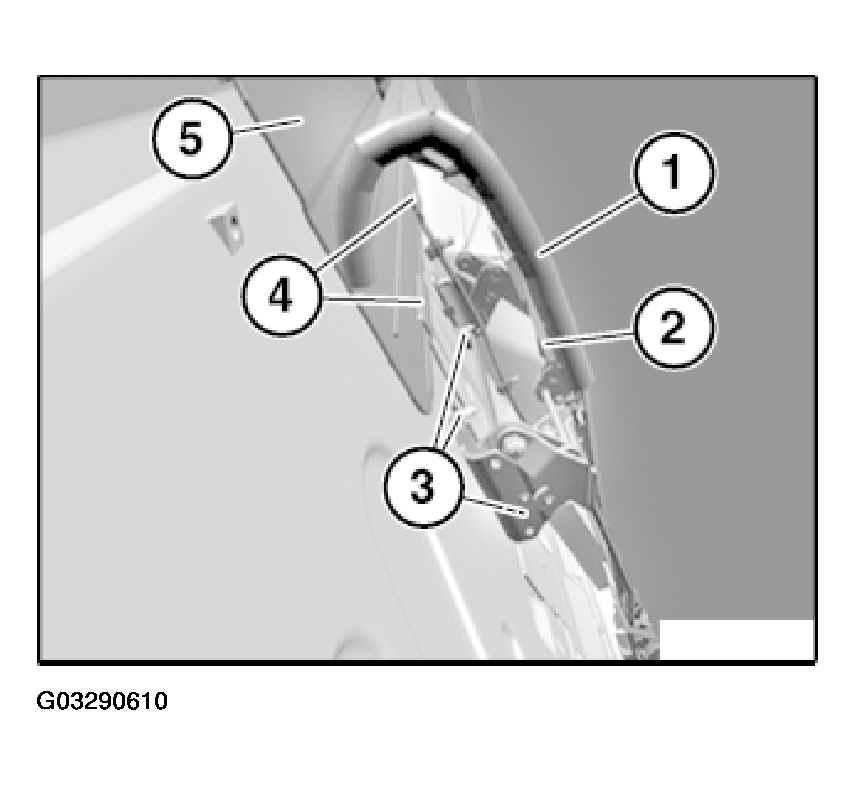

Remove cover (1) upwards out of guide (2).

Fig 2: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cover (1) from Velcro-type fastener (5), pull out of guide (4) and lift out completely.

Release screws (3).

NOTE: Backrest is secured with three nuts to body (nut at top/outside is not present).

Installation:

Insert nuts with Loctite, tightening torque 52 25 1AZ. Refer to SEATS - TIGHTENING TORQUES .

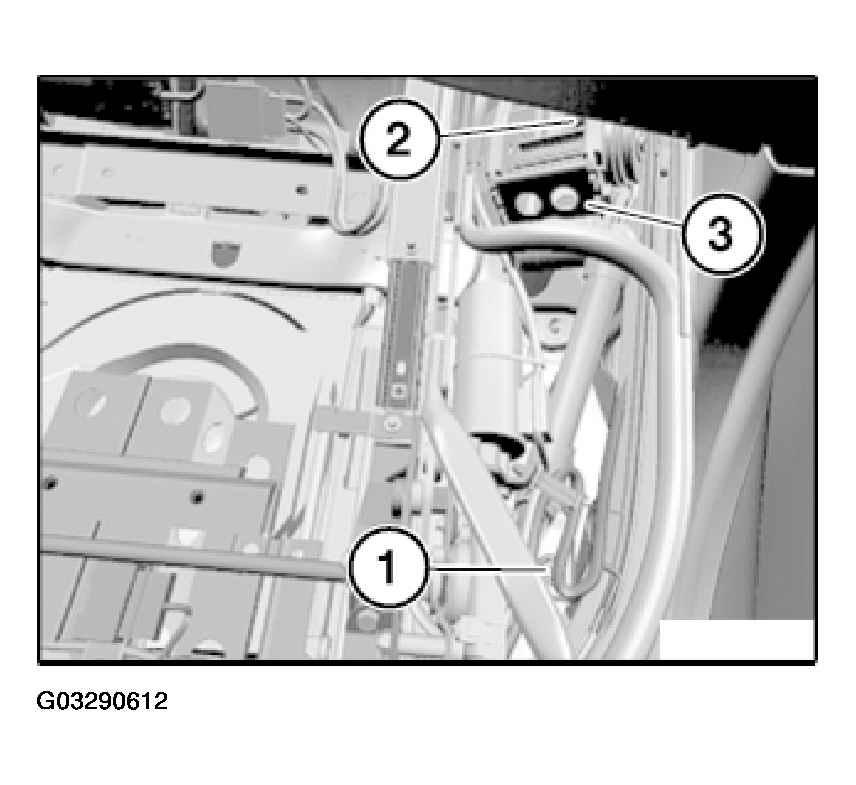

Remove cover (1) towards front.

Fig 3: Removing Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2).

Installation:

Tightening torque, 52 25 2AZ. Refer to SEATS - TIGHTENING TORQUES .

Disconnect all plug connections and feed out wiring harnesses.

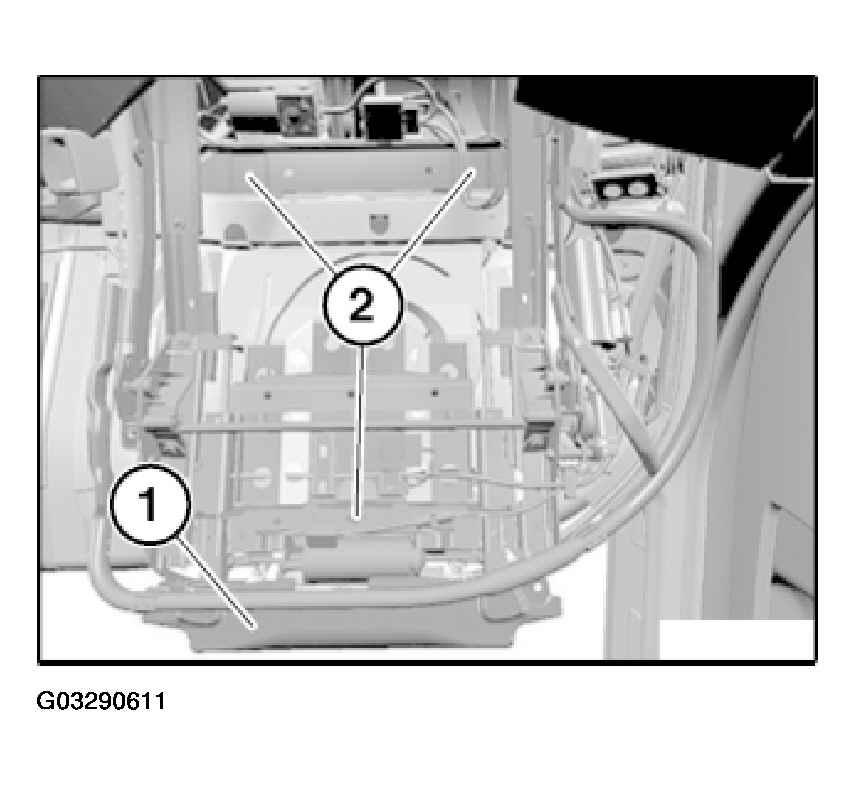

Release screw (1).

Fig 4: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2).

Installation:

Tightening torque, 48 Nm.

Lift complete seat with seat frame and set forward slightly.

Feed out belt with tensioner (3) towards rear. Remove complete seat.
