52 25 030 Removing and installing complete armrest for rear seat backrest

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove center cushion section for rear seat. Refer to 52 25 002 REMOVING AND INSTALLING PADDING FOR LEFT OR RIGHT REAR SEAT .

Unclip cover (2) in area (1) and remove towards front.

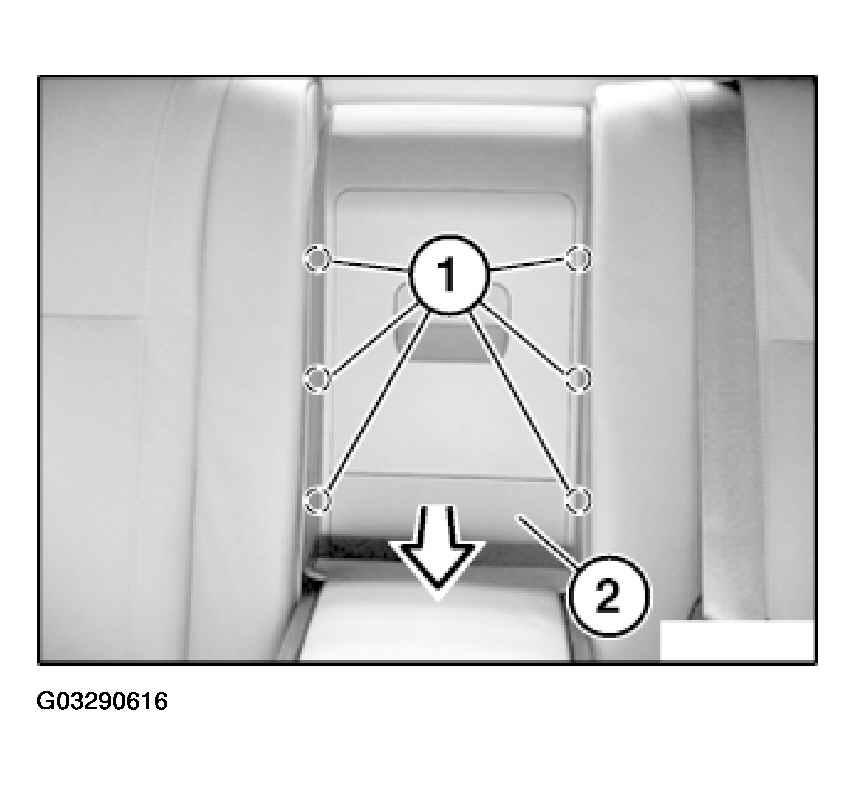

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (3).

Installation:

Tightening torque, 52 25 4AZ. Refer to SEATS - TIGHTENING TORQUES .

Disconnect plug connections.

Remove armrest (4).

Ski bag or cooler box option:

Unclip cover (2) in area (1) and remove towards front.

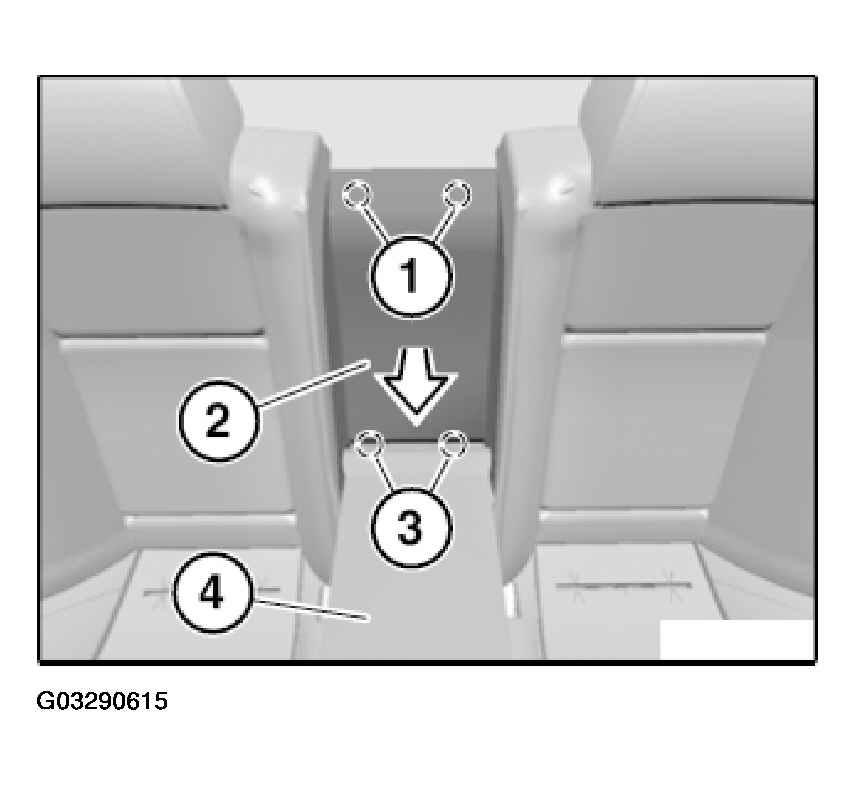

Fig 2: Unclipping Cover

Courtesy of BMW OF NORTH AMERICA, INC.
