51 43 255 Removing and installing / replacing trim for rear left or right roof pillar (front)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Version with head AIRBAG:
Follow safety instructions for working on cars with AIRBAG systems.

IMPORTANT: Do not use any sharp-edged tools to remove trim (risk of damage to head AIRBAG).

Necessary preliminary tasks:

Remove trim for rear roof pillar (rear), refer to 51 43 251 Removing and installing / replacing trim for rear left or right roof pillar (rear)

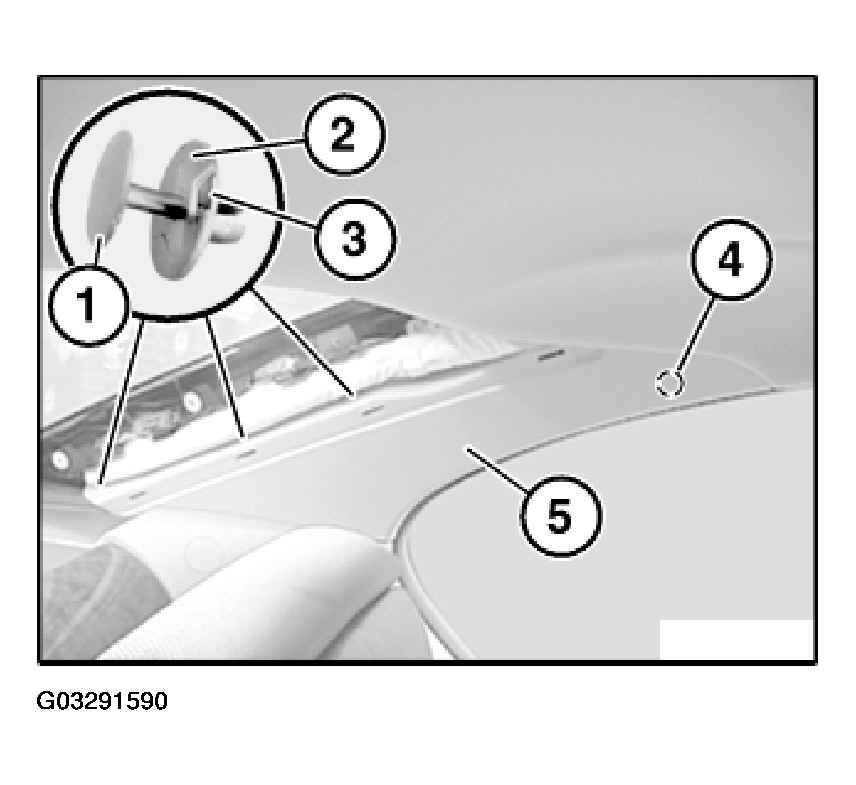

IMPORTANT: Lever out expander rivet heads (1) only over groove (3) on lower section (2). If necessary, turn lower section (2) with groove (3) towards front.

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release clip (4) and remove trim (5) towards inside/top.

Installation:

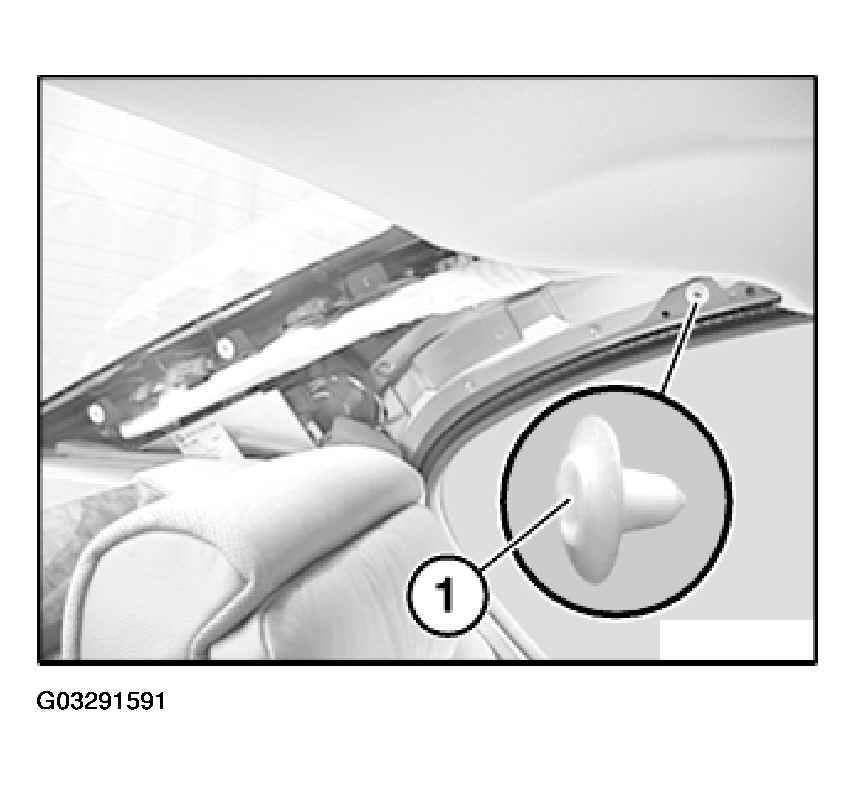

If necessary, replace defective grommet (1).

Fig 2: Replacing Defective Grommet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

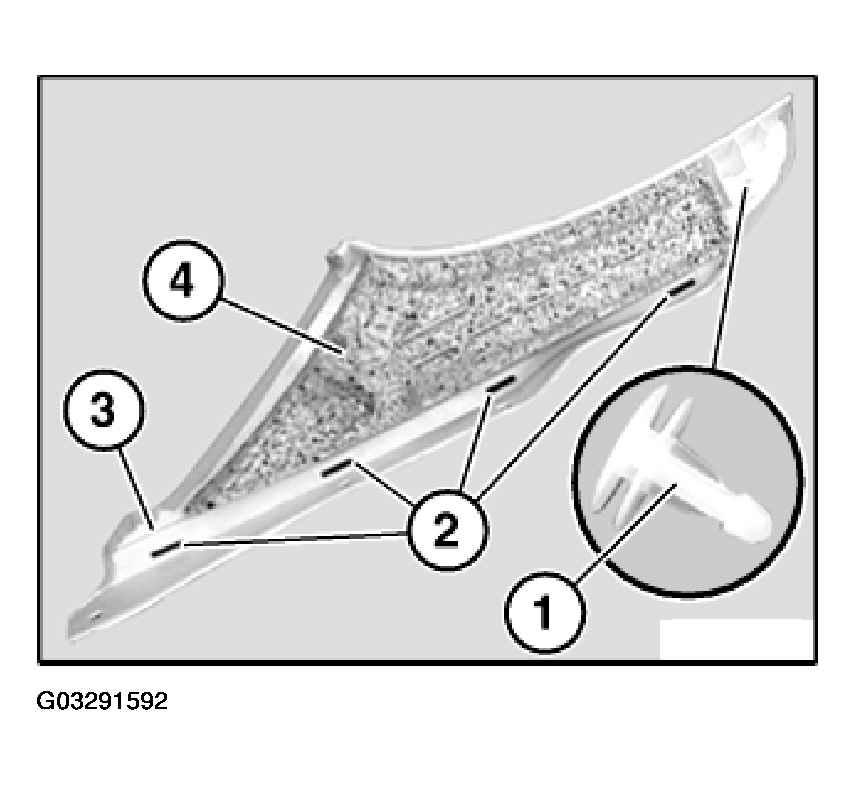

If necessary, replace faulty clip (1).

Bores (2) and insulating mat (4) of trim (3) must not be damaged.

Fig 3: View Of Trim Components

Courtesy of BMW OF NORTH AMERICA, INC.
