51 43 230 Removing and installing / replacing trim on C-pillar at bottom left or right
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 9 317
Necessary preliminary tasks:
- Remove rear entrance cover strip, refer to 51 47 030 REMOVING AND INSTALLING/REPLACING ENTRANCE COVER STRIP, REAR (INSIDE) LEFT OR RIGHT
- Remove rear trim (C-pillar), refer to 51 43 255 REMOVING AND INSTALLING / REPLACING TRIM FOR REAR LEFT OR RIGHT ROOF PILLAR (FRONT)
Version without electric rear seat adjustment only:
- Remove rear seat back, refer to 52 24 015 REMOVING AND INSTALLING/REPLACING BACKREST FOR LEFT OR RIGHT REAR SEAT (NORMAL)
Version with electric rear seat adjustment only:
- Remove supplementary trim on C-pillar at bottom, refer to 51 43 240 REMOVING AND INSTALLING/REPLACING SUPPLEMENTARY TRIM ON C-PILLAR AT BOTTOM (WITH ELECTRIC REAR SEAT ADJUSTMENT) ON LEFT OR RIGHT

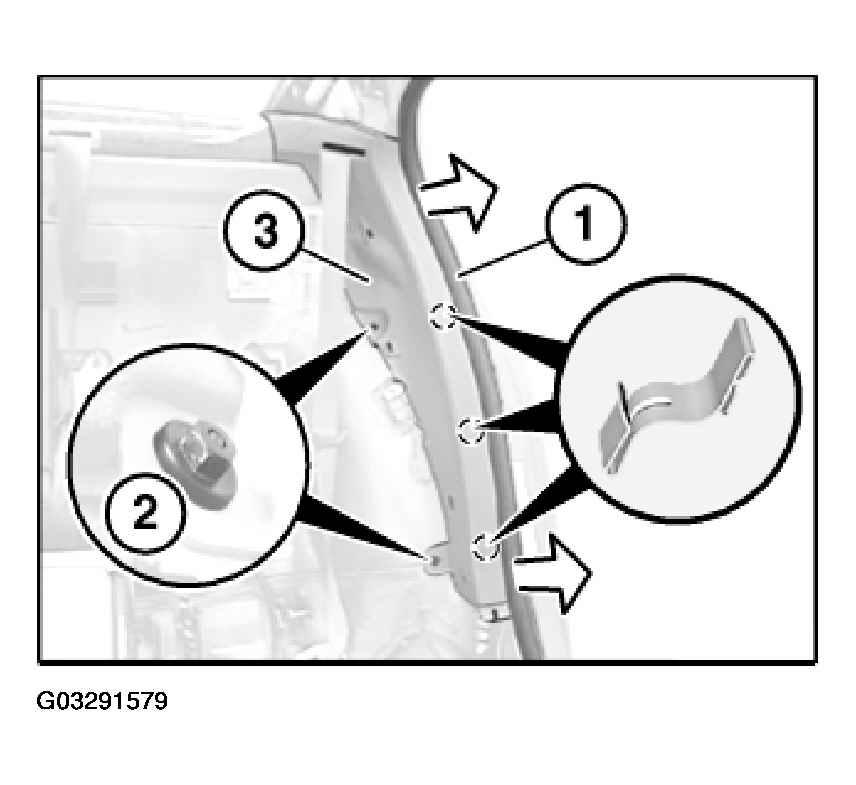

Partially detach mucket (1).
Release screw (2).
Detach side trim (3) in direction of arrow from retainers (4).

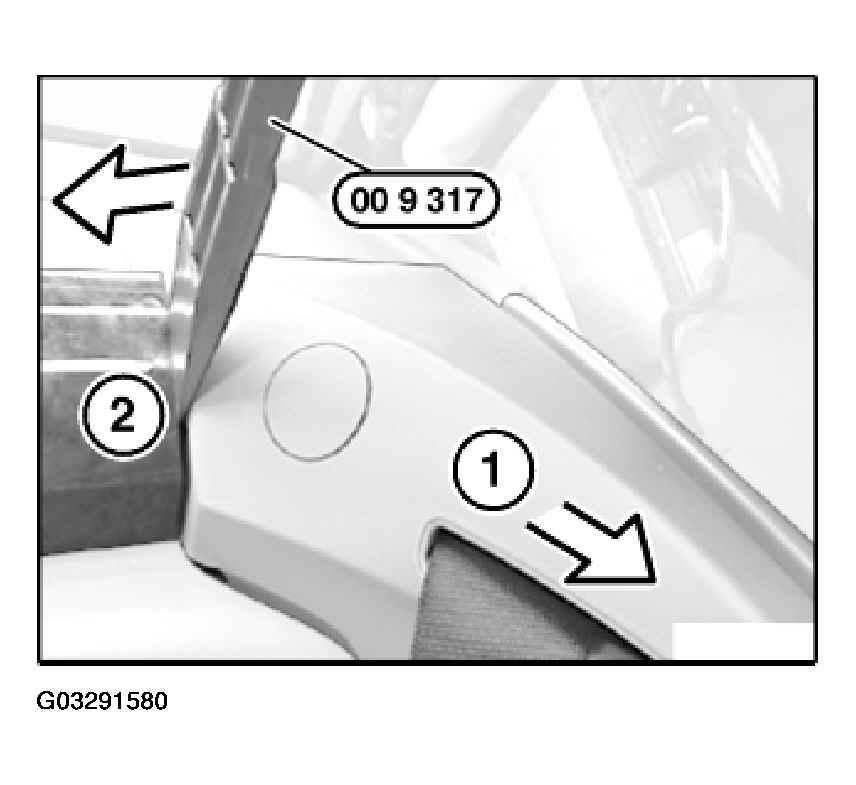

Unclipping side trim (1):
- Carefully insert special tool 00 9 317 between decorative strip (2) and side trim (1)
- Carefully press special tool to middle
- Carefully pull off side trim (1) towards front
- If necessary, disconnect plug connection for C-pillar trim
Installation:

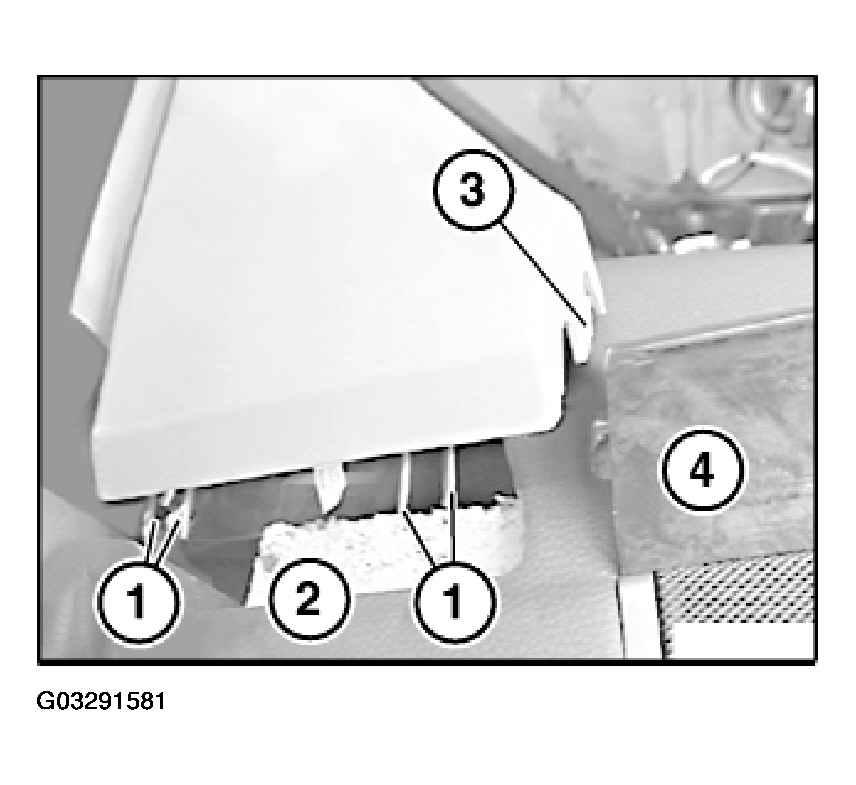

Feed in pin (1) of side trim under oddments tray (2).
Make sure catch (3) is correctly engaged on decorative strip (4).

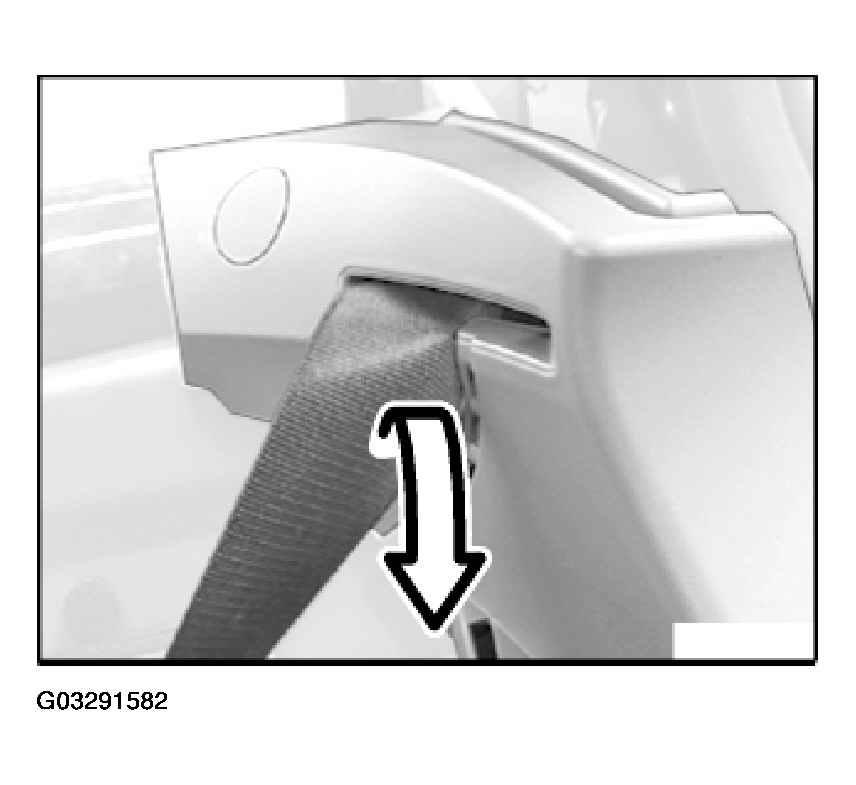

Feed out seat belt and remove trim.
