52 24 015 Removing and installing/replacing backrest for left or right rear seat (normal)

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear seat. Refer to 52 24 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (NORMAL) .

Release screws (1).

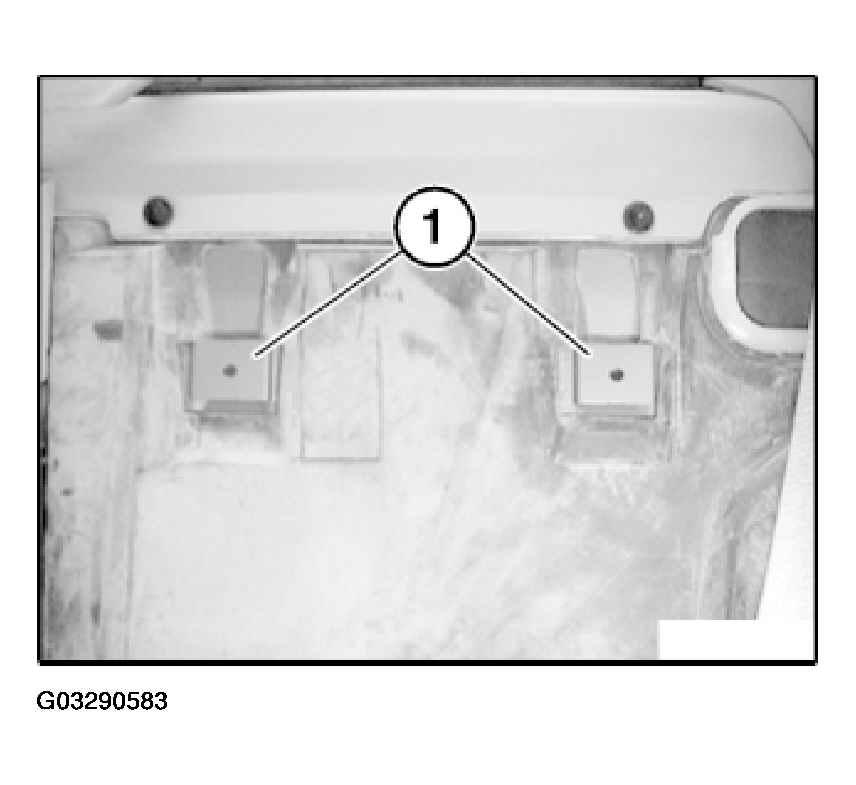

Fig 1: Removing Backrest

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out backrest (2) at bottom and slide upwards out of guide.

Feed backrest (2) out of belt straps and remove.

Rear seat with seat heater:

Disconnect plug connections (1).

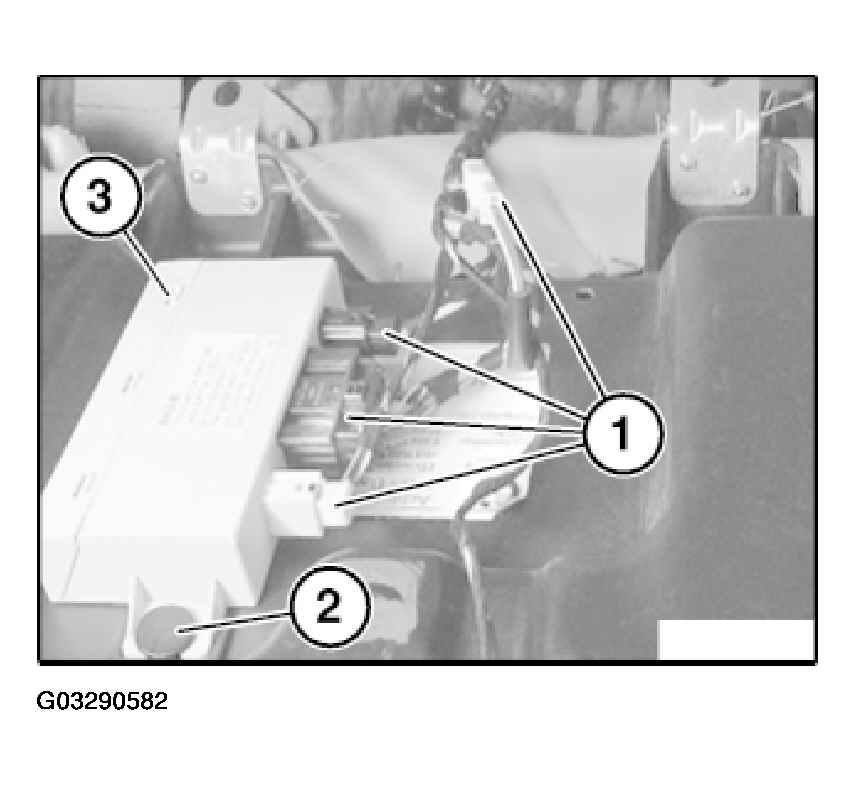

Fig 2: Removing Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Remove clip (2) and remove control unit (3).

Installation:

First engage backrest in guides (1).

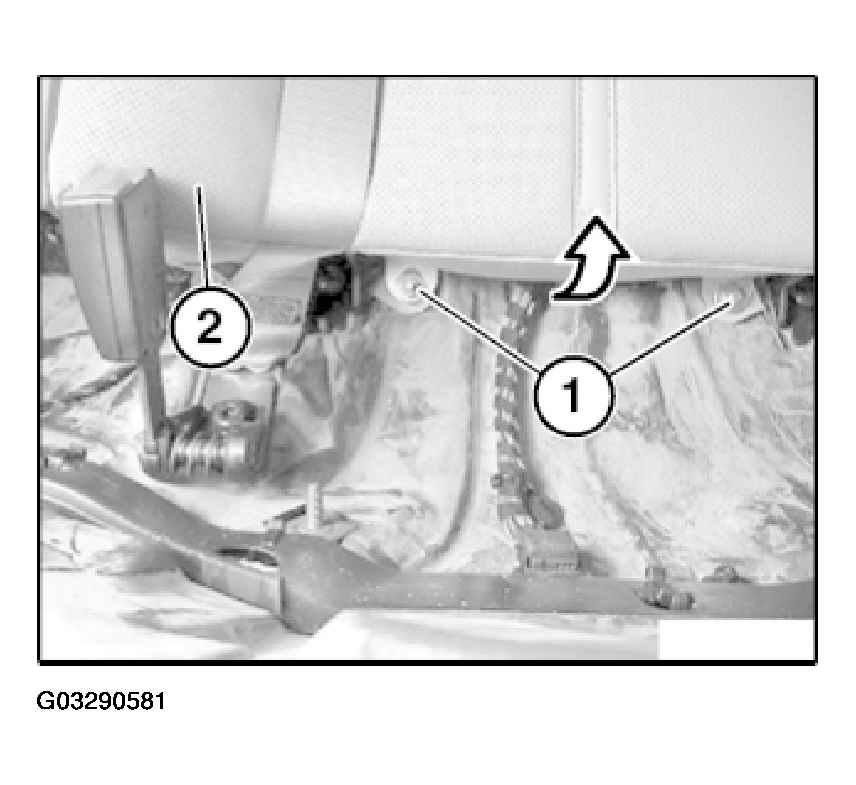

Fig 3: Installing Backrest In Guides

Courtesy of BMW OF NORTH AMERICA, INC.
