65 13 180 Removing and installing/replacing rear speaker box (in rear shelf)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 341

Necessary preliminary tasks:

Remove decorative strip on rear shelf. Refer to 51 46 009 REMOVING AND INSTALLING/REPLACING DECORATIVE STRIP FOR ODDMENTS TRAY (BACK SHELF) .

Carefully lever out catches (1) of speaker trim (2) with special tool 00 9 341.

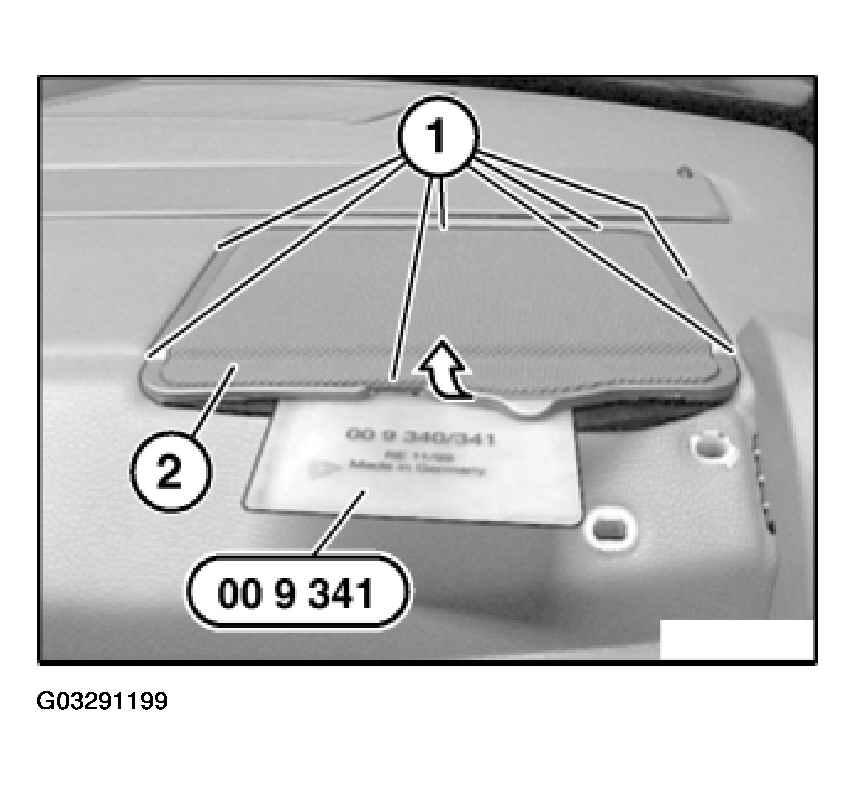

Fig 1: Removing Speaker Trim

G03291199

Courtesy of BMW OF NORTH AMERICA, INC.

Remove speaker trim (2) in direction of arrow.

Installation:

Catches (1) on speaker trim (2) must not be damaged.

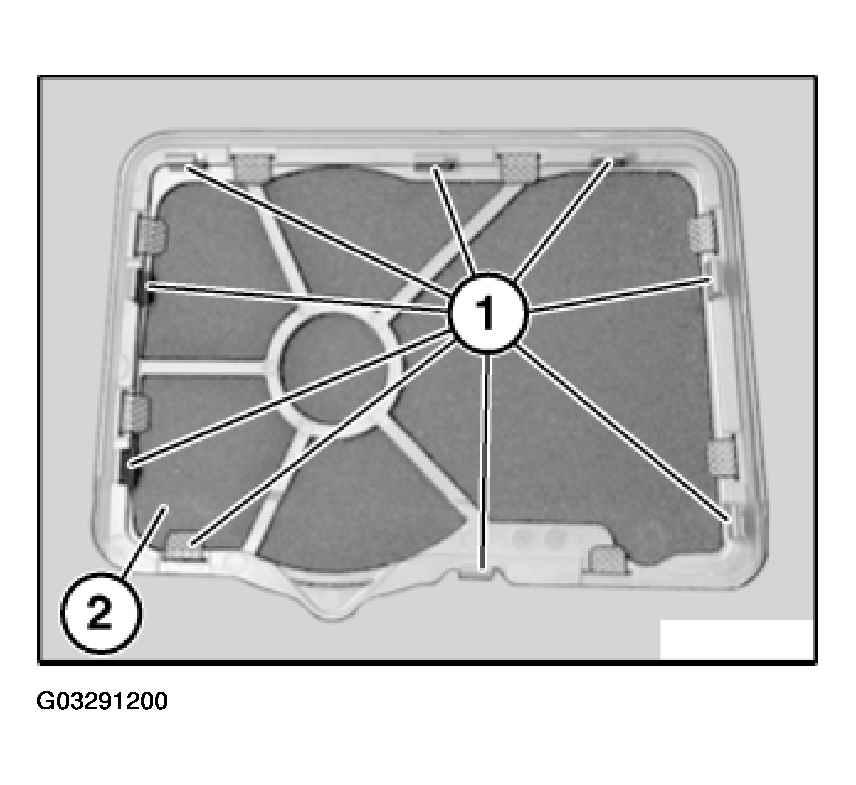

Fig 2: Identifying Catches On Speaker Trim

G03291200

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

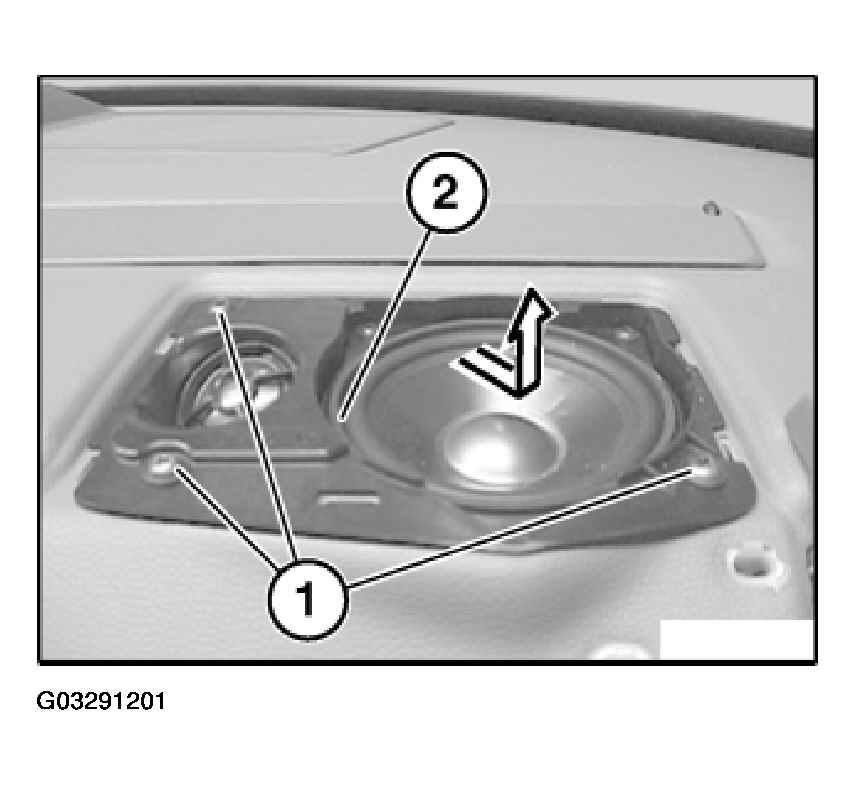

Fig 3: Removing Speaker Box

G03291201

Courtesy of BMW OF NORTH AMERICA, INC.

Turn speaker box (2) in direction of arrow and remove.

Disconnect plug connection underneath and remove speaker box (2).

Installation:

Mounting (1) of speaker box (2) must be seated exactly in fold of rear shelf.

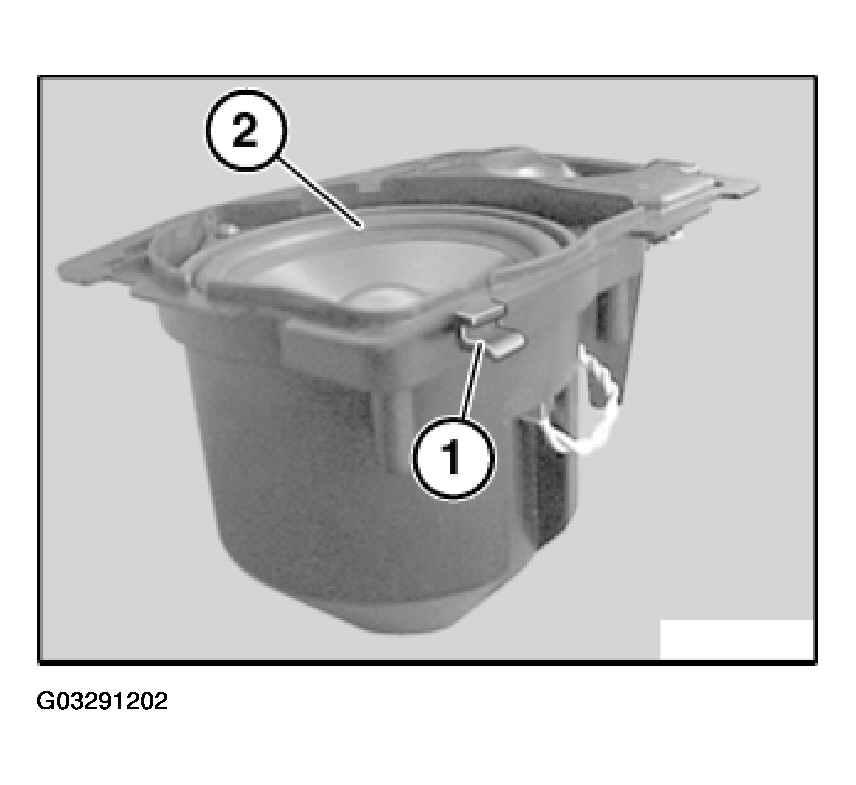

Fig 4: Identifying Location Of Speaker Box

G03291202

Courtesy of BMW OF NORTH AMERICA, INC.
