51 16 180 Removing and installing (replacing) center console support

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Disconnect NEGATIVE BATTERY CABLE
Remove SIDE TRIM PANEL (CARPET) ON CENTER CONSOLE on left and right
Remove TRIM ON CENTER CONSOLE ON SIDE on left/right
Remove REAR CENTER CONSOLE TRIM
Remove SIDE CLIP ON CENTER CONSOLE
Version with automatic transmissions only:
- Remove GEAR SELECTOR SWITCH
Depending on optional equipment:
- Remove CENTER ARMREST STORAGE COMPARTMENT

Procedure with installed center armrest storage compartment:

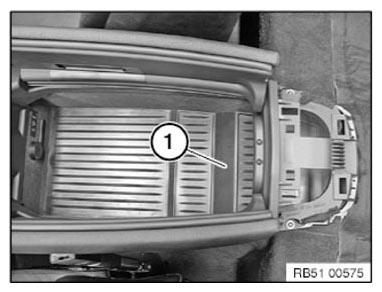

Remove rear insert mat (1).

Fig 1: Identifying Rear Insert Mat
Courtesy of BMW OF NORTH AMERICA, INC.

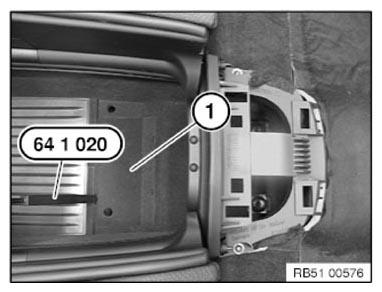

Pry out floor cover (1) with special tool 64 1 020 and remove.

Fig 2: Removing Floor Cover
Courtesy of BMW OF NORTH AMERICA, INC.

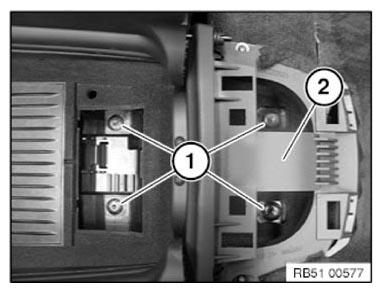

Release screws (1) from center console support (2).
Tightening torque 51 16 4AZ .

Fig 3: Identifying Center Console Support Screws
Courtesy of BMW OF NORTH AMERICA, INC.

Procedure with removed center armrest storage compartment:

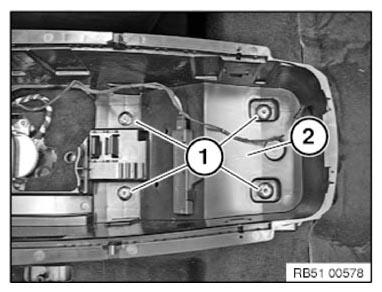

Release screws (1) from center console support (2).
Tightening torque 51 16 4AZ .
Unlock required plug connections and disconnect.

Fig 4: Identifying Center Console Support Screws
Courtesy of BMW OF NORTH AMERICA, INC.

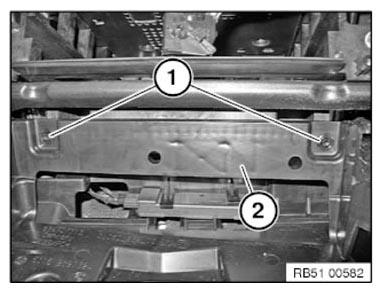

Release center screws (1) from center console support (2).

Tightening torque 51 16 24AZ .

Fig 5: Identifying Center Screws

Courtesy of BMW OF NORTH AMERICA, INC.

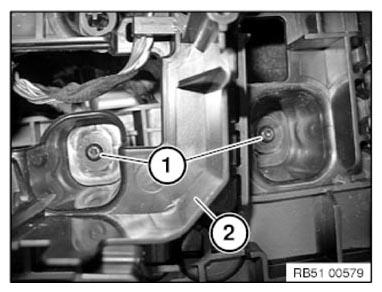

Release front screws (1) from center console support (2).

Tightening torque 51 16 10AZ .

Fig 6: Identifying Front Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock remaining plug connections and disconnect.

Feed wiring harness out of center console support and remove center console support.

Replacement:

If necessary, modify CENTER ARMREST STORAGE COMPARTMENT
With Car Access version only:
- Modify interior aerials/antennas for Comfort Access system. See INTERIOR AERIAL (FRONT CENTER CONSOLE) or INTERIOR AERIAL (REAR CENTER CONSOLE) .
