51 16 172 Removing and installing/replacing center armrest storage compartment

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Remove CENTER ARMREST COVER

NOTE: Similar to graphic.

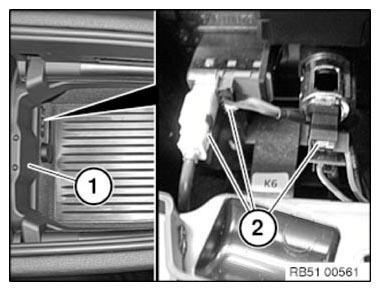

Unlock and disconnect all front plug connections (2) on center console storage compartment (1).

Fig 1: Identifying Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

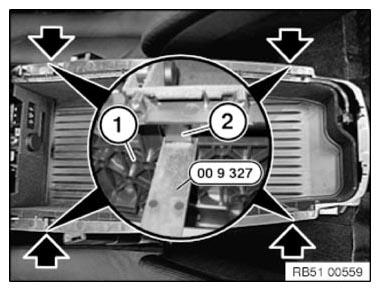

Unlock retaining tabs (2) all the way around with special tool 00 9 327 .

Fig 2: Unlocking Retaining Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Version with LED only:

Disconnect plug connection (2) from LED.

Lift out center console storage compartment (1) from top.

Replacement

Modify charging socket cover
Modify front and rear insert mat
Modify floor cover
Version with LED only:
Modify light guide

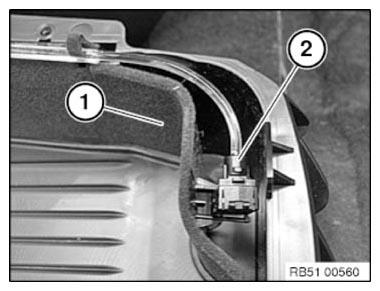

Fig 3: Identifying Storage Compartment And LED Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.
