51 16 178 Removing and installing (replacing) side clip at center console

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 325

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Remove CENTER CONSOLE COVER
Remove SIDE TRIM ON CENTER CONSOLE (passenger side).
Remove SIDE TRIM PANEL (CARPET) ON CENTER CONSOLE (passenger side)

Release screws (1) from side clip (2) inside and outside.

Tightening torque 51 16 25AZ .

Slightly raise the rear side clip (2) and slide forward until the side clip (2) detaches from the front top of the hook (3).

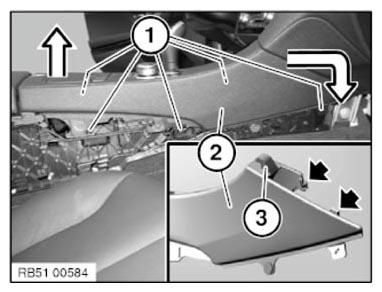

Fig 1: Removing Rear Side Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt the side clip (1) to the side and release and remove the plug connections (2).

Remove side clip (1).

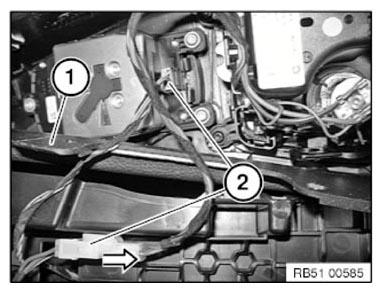

Fig 2: Identifying Side Clip And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Modify CONTROLLER (1)
Modify drinks holder/ashtray (2)

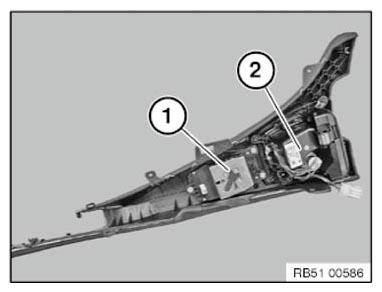

Fig 3: Identifying Beverage Holder/Ashtray And Controller
Courtesy of BMW OF NORTH AMERICA, INC.
