51 16... Removing and installing/replacing side trim panels (carpet) on center console on left or right

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Release screw (1).

Pull the trim panel (2) forward until the retaining clips disengage.

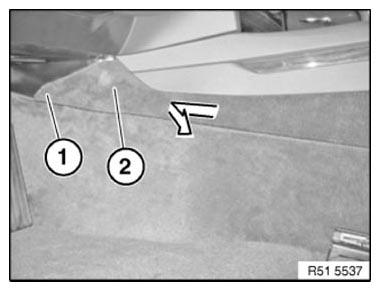

Fig 1: Pulling Trim Panel Forward

Courtesy of BMW OF NORTH AMERICA, INC.

Lever clip (1) out of the front of the center console support (2).

Fig 2: Identifying Clip At Front Of Center Console Support

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retainers (3) must be correctly seated in panel guides (1).

Clip (2) must not be damaged or missing.

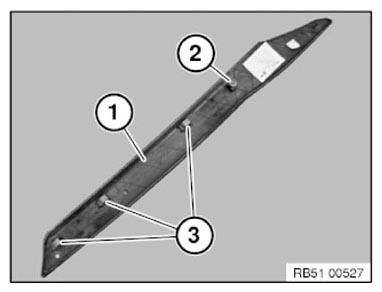

Fig 3: Identifying Panel Guide, Retainers, And Clip

Courtesy of BMW OF NORTH AMERICA, INC.
