61 35 953 Removing and installing/replacing interior aerial for comfort access system (front center console) (after vehicle diagnosis)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CENTER CONSOLE COVER

Unclip interior aerial for comfort access system (1) from center console support part (2).

Disconnect plug connection (3).

Installation note:

Make sure interior aerial for comfort access system seat adjustment (1) is correctly seated.

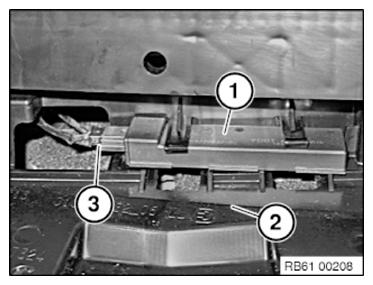

Fig 1: Identifying Interior Aerial, Center Console Support Part, And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
