51 45 030 Removing and installing instrument panel trim
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove Storage Compartment
- Move front seats back completely and lower
- Disconnect Battery Negative Lead
- Remove Fixture For Steering Column Stalk
- Remove both Trims For Front Roof Pillar
- Remove Trim Panel For Pedal Assembly
- Remove Instrument Cluster
- Remove Light Operator Unit
- Remove Decorative Strip On Instrument Panel On Right
- Remove Operator Unit For Heater/Air Conditioner
- Remove Insert For Radio Control Key
- In appropriate version:
- Remove Radio Receiver
- Remove Audio System Controller
- Remove Car Communication Computer
- If necessary, remove On-Board Monitor
- Remove Right Glovebox With Housing
- Remove Speaker
- If necessary, remove Solar Sensor

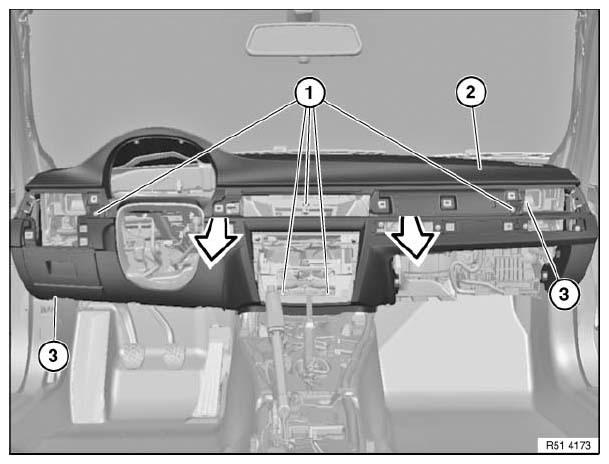

Release screws (1).
Release screw (3).
Pull back instrument panel trim (2) in direction of arrow.
Disconnect available plug connections and remove instrument panel trim (2).
Installation:

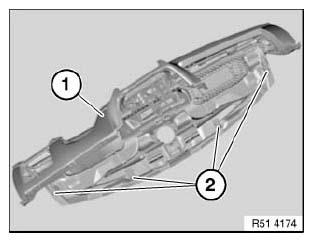

Make sure guides (2) of instrument panel trim (1) are correctly seated in mountings.
Make sure seals are correctly seated on air ducts.
