51 45 380 Removing and installing (replacing) right decorative strip on instrument panel

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

IMPORTANT: Risk of damage!

Do not turn special tool 00 9 317 when levering out and pay attention to pressure points.

Lever out right decorative strip (2) from left side beginning at retaining points (1) with special tool 00 9 317.

Disconnect associated plug connection and remove decorative strip (2).

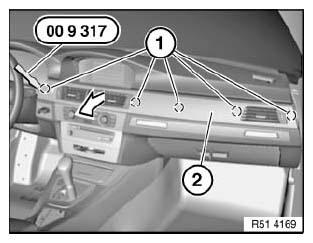

Fig 1: Identifying Decorative Strip, Retaining Points And Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) must be seated in associated mountings.

If necessary, remove clips (1) remaining on decorative strip.

Replace damaged clips (1):

Turn clip (1) with screwdriver to left by approx. 90°.
Lever out clip (1) from below.

Fig 2: Removing Clips
Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove Start/Stop Switch
Remove Switch For Hazard Warning System /central locking
Remove Right Fresh-Air Grill
Remove Center Fresh Air Grill
