65 82 050 Removing and installing (replacing) on-board monitor

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection) .

IMPORTANT: Proceed with care so as to avoid damaging the on-board monitor and adjoining trims.

Release screws (1).

Fold out on-board monitor (2) in direction of arrow.

Fig 1: Identifying On-Board Monitor And Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Installation:

Ensure correct cable routing.

Remove on-board monitor (2).

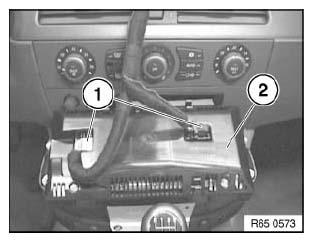

Fig 2: Identifying On-Board Monitor Plug Connections And On-Board Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding.
