65 13 060 Removing and installing/replacing speaker (mid-range speaker, in instrument panel)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

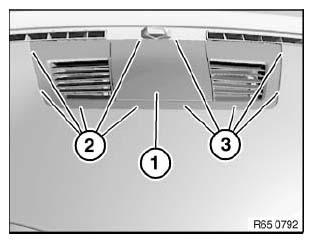

Unclip trim for speaker cover (1) at fastening points (2) and (3) and remove

Fig 1: Identifying Speaker Cover And Fastening Points

Courtesy of BMW OF NORTH AMERICA, INC.

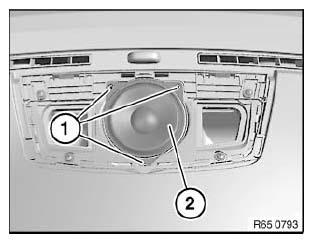

Release screws (1).

Remove speaker (2).

Disconnect associated plug connection and remove speaker (2) towards top.

Fig 2: Identifying Speaker And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
