65 11 080 Removing and installing/replacing radio receiver

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection) .

Necessary preliminary tasks:

Disconnect Battery Negative Lead
Remove Operator Unit For Heater/Air Conditioner

NOTE: Comply with Notes And Instructions On Handling Optical Waveguides .

Release screws (1).

Pull back radio receiver (2) slightly.

Disconnect associated plug connections and remove radio receiver (2).

Installation:

Make sure the rear guide pin of the radio receiver (2) is correctly seated in the associated mounting.

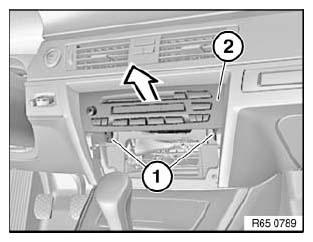

Fig 1: Identifying Radio Receiver And Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding.
