51 16 366 Removing and installing right glovebox with housing

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Version with can holder:

Remove both front Cup Holders

Release screws (1).

Pull out glovebox (1) slightly.

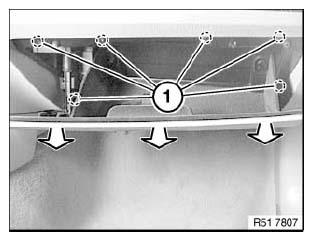

Fig 1: Identifying Glovebox And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (2) and feed cable out of guide (3).

Depending on version, disconnect further plug connections.

Remove glovebox (1).

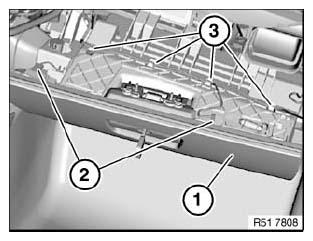

Fig 2: Identifying Plug Connections, Guide And Glovebox

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) for glovebox must not be damaged or missing.

Version with can holder:

Guides (2) for cup holders must not be damaged or missing.

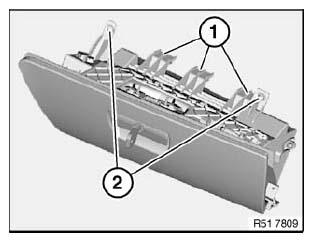

Fig 3: Identifying Guides

Courtesy of BMW OF NORTH AMERICA, INC.
