Remove/Install Front Axle Differential Propeller Shaft - AR41.10-P-0070SVZ

Model 223 with engine 279

with code M005 (Vehicles with 4MATIC/all-wheel drive)

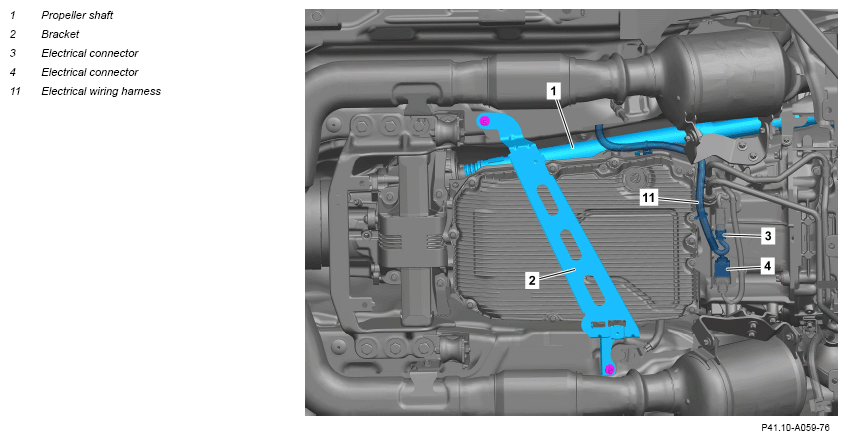

Fig 1: Front Axle Differential Propeller Shaft Components Location - Model 223 With Engine 279 With Code M005

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Remove/install
1	Put transmission into neutral position.
2	Release parking brake.
3	Remove right catalytic converter.		AR49.20-P-0102SVZ
4	Remove holder (2).
5	Disconnect electrical connectors (3, 4).
6	Remove electrical wiring harness (11) from automatic transmission and position outside the working area.

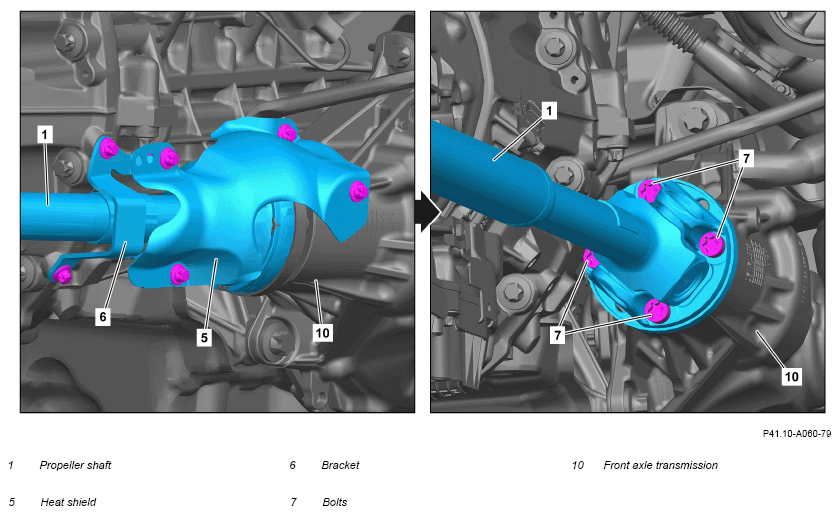

7	Remove the heat shield (5).	Collar bolt, heat shield to holder of heat shield/retaining plate/front axle differential	*BA33.30-P-1009-03G
8	Remove bracket (6).	Collar bolt, holder for heat shield to transmission/holder for exhaust system	*BA33.30-P-1010-03G
9	Operate service brake and remove screws (7).	Do not counterhold the propeller shaft (1) at the universal joint. The needle roller bearings and seals of the propeller shaft (1) will otherwise be damaged. Aid of helper required. : Replace the bolts (7). Screw/bolt, propeller shaft to front axle gear	*BA33.30-P-1012-03G
10	Remove propeller shaft (1) together with transfer case.		AR28.10-P-0100S

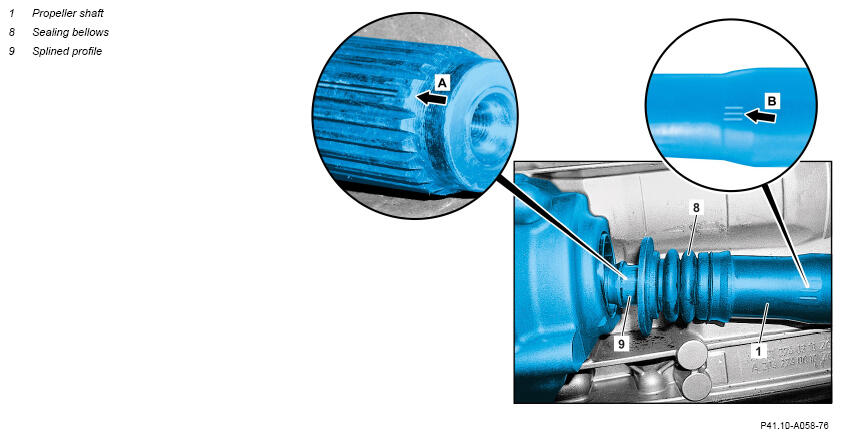

11	Remove propeller shaft (1) from transfer case.	: Grease splined profile (9). The marking (arrow A) on the splined profile (9) must line up exactly with the marking (arrow B) on the propeller shaft (1). Klueber Microlube GNY 202	*BR00.45-Z-1071-06A
12	Check sealing bellows (8) for damage.	If sealing bellows (8) is damaged, ↓ replace sealing bellows (8).	AR41.10-P-0070-01A
13	Install in the reverse order.
