Remove/Install Transfer Case - AR28.10-P-0100S

Transmission 725.0, 725.1 (except 725.163) in model 223

with code M005 (Vehicles with 4MATIC/all-wheel drive)

Courtesy of MERCEDES-BENZ USA

Shown on vehicle with engine 256

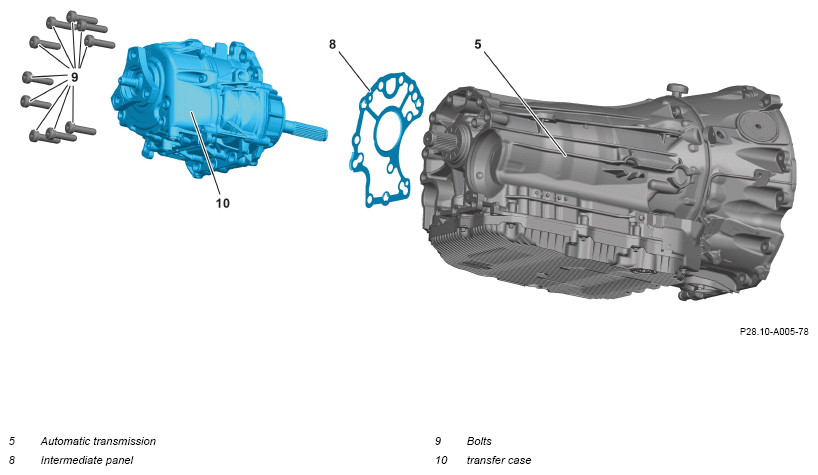

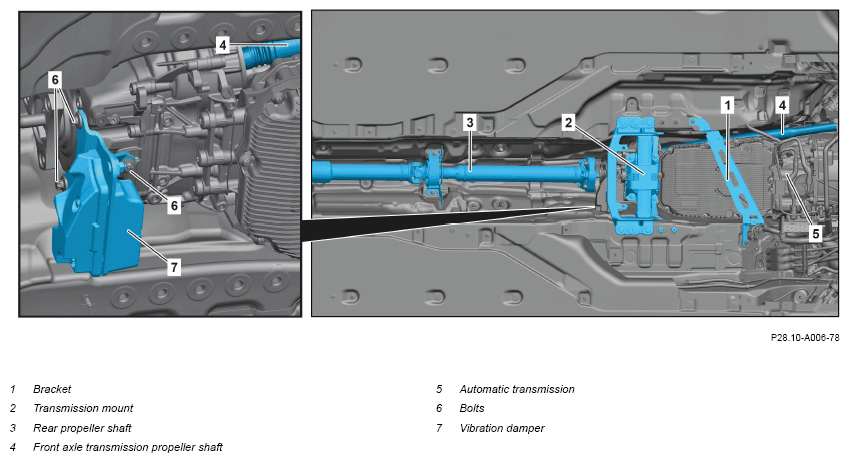

Fig 1: Transfer Case Components Location - Transmission 725.0, 725.1 (Except 725.163) In Model 223 With Code M005 (Shown With Engine 256)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on threaded connections with aluminum screws/bolts		AH00.00-P-0006-01RM
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Secure vehicle on vehicle lift.		AR00.60-P-1006A
2	Remove rear propeller shaft (3).	Transmission 725.0 in model 223 with engine 656 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR41.10-P-0050SB
		Transmission 725.0 in model 223 with engine 256 with code M005 (Vehicles with 4MATIC/all-wheel drive) Transmission 725.1 in model 223 with engine 176 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR41.10-P-0050S
		Transmission 725.0 in model 223 with engine 279 with code M005 (Vehicles with 4MATIC/all-wheel drive) Only install engine compartment paneling after a leak test.	AR41.10-P-0050SVZ
3	Release coolant lines from front axle carrier.	Transmission 725.1 in model 223 with engine 176 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR08.50-P-0244S
4	Remove transmission mount (2).	Transmission 725.0 in model 223 with engine 656 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR22.10-P-0007S
		Transmission 725.0 in model 223 with engine 256.9 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR22.10-P-0007SB
		Transmission 725.1 in model 223 with engine 176 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR22.10-P-0007SC
		Transmission 725.0 in model 223 with engine 279 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR22.10-P-0007SVZ
5	Remove screws (6) and remove vibration damper (7).	Transmission 725.0, 725.1 (except 725.163) in model 223 (except 223.179/979) with code M005 (Vehicles with 4MATIC/all-wheel drive) Screw/nut, vibration damper to transfer case	*BA28.10-P-1008-01G
6	Lower automatic transmission (5) until all screws (9) around circumference of transfer case (10) are accessible.
7	Support transfer case (10).
	000 588 24 62 00 Major assembly mount		WS01.00-P-0253B
	000 588 23 62 00 Mounting plate		WS26.00-P-0415B
8	Remove screws (9) and detach transfer case (10) from automatic transmission and front axle differential propeller shaft (4).	The marking on the power output flange gearing must line up exactly with the marking on the front axle differential propeller shaft (4). A second person is required to help with detaching and attaching front axle differential propeller shaft (4). Screw/bolt, transfer case to automatic transmission	*BA28.10-P-1001-01G
9	Check intermediate panel (8) for damage.	If damage is found, ↓ Replace intermediate panel (8).
10	Install in the reverse order.
11	Check and correct oil level of transfer case (10).		AR28.10-P-0100-06S
		Oil level sight glass to transfer case	*BA28.10-P-1007-01G
		Drain screw to transfer case	*BA28.10-P-1003-01G
		Transfer case oil	*BF28.10-P-1001-01F
		Assembly cleaner	*BR00.45-Z-1028-04A
		Hand pump	Fig 2
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone.	AS49.00-Z-0001-01A
12	Perform engine test run and check transfer case (10) for proper operation and leak tightness.

Fig 2: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA
