Remove/Install Transmission Mount - AR22.10-P-0007SVZ
Engine 279 in model 223 with transmission 725.0
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on bolted connections with self tapping screws | AH00.00-P-0007-01SF | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Remove/install | |||
| 1 | Secure vehicle on vehicle lift. | AR00.60-P-1006A | |
| 2 | Remove rear bottom engine compartment lining. | AR61.20-P-1105S | |

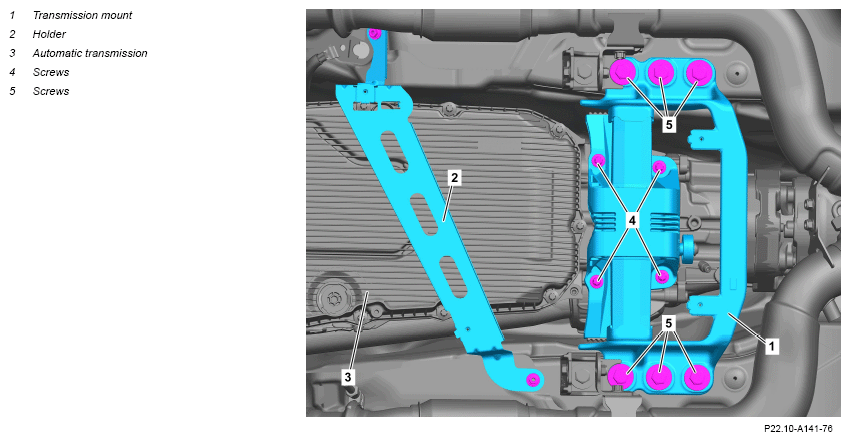

| 3 | Remove holder (2). | ||
| 4 | Remove automatic transmission (3). | ||
| 000 588 24 62 00 Major assembly mount | WS01.00-P-0253B | ||
| 000 588 23 62 00 Mounting plate | WS26.00-P-0415B | ||
| 5 | Remove screws (4). | ||
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| *BA22.10-P-1004-03S | |||
| 6 | Remove the screws (5). | *BA22.10-P-1003-03S | |
| 7 | Remove transmission mount (1). | ||
| 8 | Install in the reverse order. |
ENGINE MOUNT, ENGINE SUPPORT (VEHICLE SIDE)
| Number | Designation | Model 223 except code M005 (Vehicles with 4MATIC/all-wheel drive) | Model 223 with code M005 (Vehicles with 4MATIC/all-wheel drive) | ||
|---|---|---|---|---|---|
| BA22.10-P-1003-03S | Screw, Transmission carrier to Frame floor assembly | Stage 1 | Nm | 80 | 80 |
| Stage 2 | Nm | - | - | ||
ENGINE MOUNT, ENGINE SUPPORT (VEHICLE SIDE)
| Number | Designation | Model 223 except code M005 (Vehicles with 4MATIC/all-wheel drive) | Model 223 with code M005 (Vehicles with 4MATIC/all-wheel drive) | |||
|---|---|---|---|---|---|---|
| BA22.10-P-1004-03S | Screw, Transmission mount to bracket/transmission | M9 | Stage 1 | Nm | 15 | - |
| Stage 2 | ∠° | 90 | - | |||
| M8 | Nm | - | 28 | |||
