Remove/Install Transmission Mount - AR22.10-P-0007SB

Engine 256 in model 223

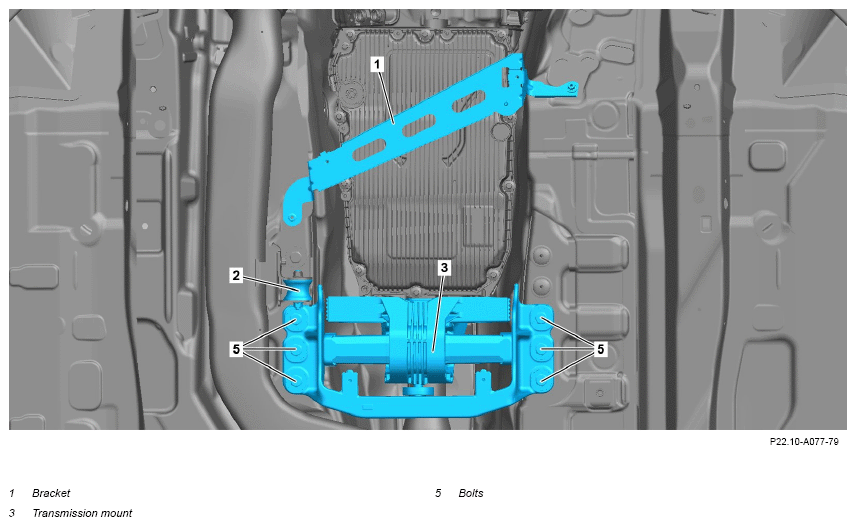

Fig 1: Transmission Mount Components Location - Model 223 With Engine 256 (Shown Without Code M005)

Courtesy of MERCEDES-BENZ USA

Shown without code M005 (Vehicles with 4MATIC/all-wheel drive)

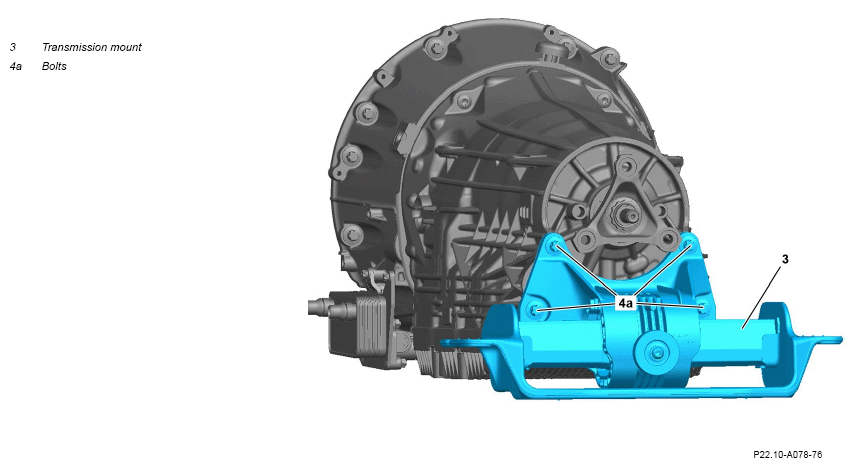

Shown without code M005 (Vehicles with 4MATIC/all-wheel drive)

Courtesy of MERCEDES-BENZ USA

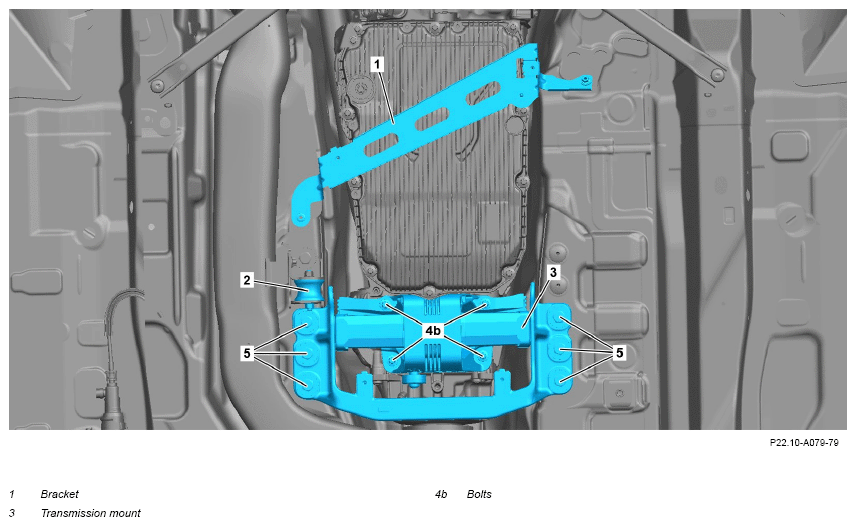

Fig 2: Transmission Mount Components Location - Model 223 With Engine 256 (Shown With Code M005)

Courtesy of MERCEDES-BENZ USA

Shown with code M005 (Vehicles with 4-MATIC/all-wheel drive)

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
Notice	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Remove/install
1	Remove center and rear sections of lower engine compartment lining.		AR61.20-P-1105S
2	Remove bracket (1) of rear lower engine compartment lining.
3	Support the transmission.
	000 588 24 62 00 Major assembly mount		WS01.00-P-0253B
	000 588 23 62 00 Mounting plate		WS26.00-P-0415B
4.1	Remove bolts (4a).	Engine 256 in model 223 except code M005 (Vehicles with 4MATIC/all-wheel drive)
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
		Screw, Transmission mount to bracket/transmission	*BA22.10-P-1004-03S
4.2	Remove bolts (4b).	Engine 256 in model 223 with code M005 (Vehicles with 4MATIC/all-wheel drive) Screw, Transmission mount to bracket/transmission	*BA22.10-P-1004-03S
5	Remove bolts (5) and remove transmission mount (3).	Screw, Transmission carrier to Frame floor assembly	*BA22.10-P-1003-03S
6	Install in the reverse order.
