Check/Correct Transmission Oil Level On Transfer Case - AR28.10-P-0100-06S
Transmission 725.0, 725.1 (except 725.163) in model 223
with code M005 (Vehicles with 4MATIC/all-wheel drive)
COMPLETE TRANSFER CASE
| Number | Designation | Model 205 with transmission 725.0 Model 206 (except 206.080/087/280/287) with transmission 725.1 Model 213 (except 213.061/088/089/261/2 88/289) with transmission 725.0/1 Model 214 (except 214.063/064/263/264) with transmission 725.1 Model 217, 218, 222 with transmission 725.0 Model 223 (except 223.182) with transmission 725.0/1 Model 236 (except 236.380/480) with transmission 725.1 Model 238 (except 238.361/461) with transmission 725.0/1 Model 253 (except 253.388/389/988/989) with transmission 725.0 Model 254 (except 254.380/387/680/687) with transmission 725.1 Model 257 with transmission 725.0/1 Model 290 (except 290.661/688) with transmission 725.0/1 | |
|---|---|---|---|
| BA28.10-P-1003-01G | Drain screw to transfer case | Nm | 25 |
COMPLETE TRANSFER CASE
| Number | Designation | Model 205 with transmission 725.0 Model 206 (except 206.080/087/280/287) with transmission 725.1 Model 213 (except 213.061/088/089/261/2 88/289) with transmission 725.0/1 Model 214 (except 214.063/064/263/264) with transmission 725.1 Model 217, 218, 222 with transmission 725.0 Model 223 (except 223.182) with transmission 725.0/1 Model 236 (except 236.380/480) with transmission 725.1 Model 238 (except 238.361/461) with transmission 725.0/1 Model 253 (except 253.388/389/988/989) with transmission 725.0 Model 254 (except 254.380/387/680/687) with transmission 725.1 Model 257 with transmission 725.0/1 Model 290 (except 290.661/688) with transmission 725.0/1 | |
|---|---|---|---|
| BA28.10-P-1007-01G | Oil level sight glass to transfer case | Nm | - |
COMPLETE TRANSFER CASE
| Number | Designation | Model 205, 213, 217, 218, 222, 223, 232, 238, 253, 257, 290 with transmission 725.0 | Model 213, 223, 232, 290 with transmission 725.1 | ||
|---|---|---|---|---|---|
| BF28.10-P-1001-01F | Transfer case oil | Filling capacity | Liter | 0, 65 | 0, 65 |
| Specifications | BB00.40-P-0236-15A | BB00.40-P-0236-15A | |||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
Cleaning

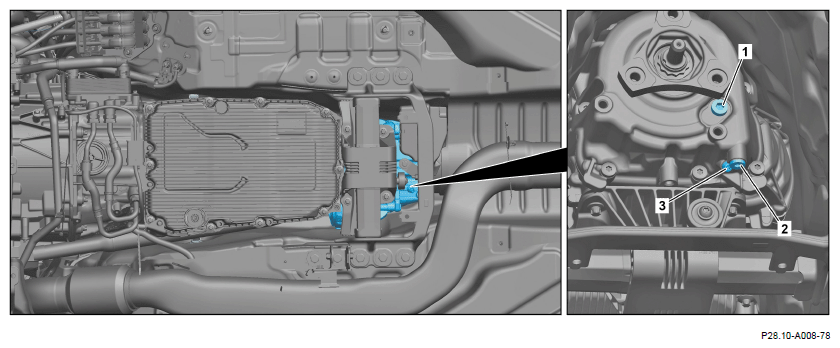

- Clean area surrounding drain screw (2) and level screw (3).
Remove
- Unscrew level screw (3) far enough until it makes contact with the drain screw (2).
- Remove drain screw (2).
Cleaning
- Clean threaded hole of drain screw (2).
Fill
- Inset filler hose of
hand pump into threaded hole of drain screw (2) until it is positioned at the upper edge of the overflow pipe.
- Fill transfer case with transfer case gear oil using
- Drain transfer case oil from threaded hole of drain screw (2) until the flow of transfer case oil stops.
Install
- Screw drain screw (2) into transfer case and tighten
.
Install new drain screw (2).
- Screw in level screw (3) and tighten
