Remove/Install Front Elastomer Bearing For Rear Axle Differential Mounting - AR35.10-P-0053S
Model 223
except code Z07 (B7 armoring on special protection version)
MODIFICATION NOTES
| 02.11.2023 | Front cross bridge to rear axle carrier | BA35.10-P-1004-01R |

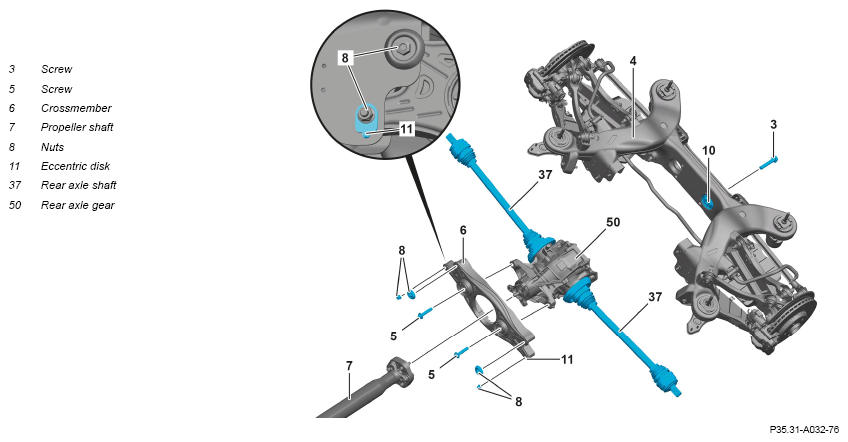

Shown except code 216 (Rear axle steering with large steering angle), except code 201 (Rear axle steering), except code Z07 (B7 armoring for special protection version)

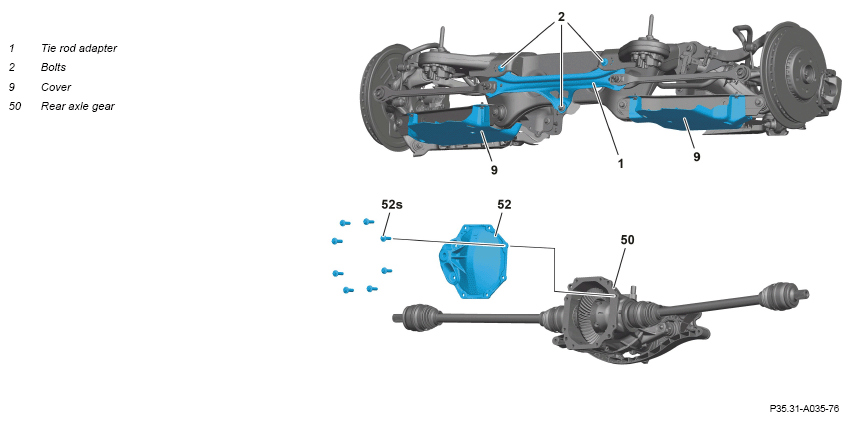

Shown except code 216 (Rear axle steering with large steering angle), except code 201 (Rear axle steering), except code Z07 (B7 armoring for special protection version)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Raise vehicle using vehicle lift and secure in place. | AR00.60-P-1006A | |
| 2.1 | Remove rear muffler. | Model 223 with engine 656 except code Z07 (B7 armoring on special protection version) |
AR49.10-P-4952S |
| 2.2 | Remove rear mufflers. | Model 223 with engine 176, 256, 279 except code Z07 (B7 armoring on special protection version) Remove/install left rear muffler Model 223 with engine 176, 256 except code Z07 (B7 armoring on special protection version) |
AR49.10-P-4824S |
| Remove/install right rear muffler Model 223 with engine 176, 256 except code Z07 (B7 armoring on special protection version) |
AR49.10-P-4825S | ||
| Remove/install left rear muffler Model 223 with engine 279 except code Z07 (B7 armoring on special protection version) |
AR49.10-P-4824SVZ | ||
| Remove/install right rear muffler Model 223 with engine 279 except code Z07 (B7 armoring on special protection version) |
AR49.10-P-4825SVZ | ||
| 3 | Detach propeller shaft (7) from joint flange on rear axle differential (50). | Model 223 with engine 176, 256 except code Z07 (B7 armoring on special protection version) |
AR41.10-P-0050S |
| Model 223 with engine 656 except code Z07 (B7 armoring on special protection version) |
AR41.10-P-0050SB | ||
| Model 223 with engine 279 except code Z07 (B7 armoring on special protection version) |
AR41.10-P-0050SVZ | ||
| 4 | Remove covers (9). | ||
| 5.1 | Lower the steering gear of the rear axle steering until screw (3) is accessible and secure the steering gear to prevent it from falling down. | Model 223 with code 201 (Rear axle steering) except code Z07 (B7 armoring on special protection version) Model 223 with code 216 (Rear axle steering with large angle) except code Z07 (B7 armoring on special protection version) |
AR46.80-P-4000S |
| 5.2 | Remove screws (2) and lower tie rod adapter (1) until screw (3) is accessible. | Model 223 except code 201 (Rear axle steering) except code 216 (Rear axle steering with large angle) except code Z07 (B7 armoring on special protection version) |
*BA35.20-P-1004-04P |
| 6 | Prop up rear axle differential (50) and lash down securely. | ||
| 000 588 24 62 00 Major assembly mount | WS01.00-P-0253B | ||
| 000 588 23 62 00 Mounting plate | WS26.00-P-0415B | ||
| 7 | Remove screw (3). | *BA35.10-P-1011-01R | |
| 8 | Remove nuts (8) and remove eccentric disks (11). | *BA35.10-P-1004-01R | |
| 9 | Lower rear axle differential (50) until the cross bridge (6) can be removed. | ||
| 000 588 24 62 00 Major assembly mount | WS01.00-P-0253B | ||
| 000 588 23 62 00 Mounting plate | Do not lower the rear axle differential (50) too far. Otherwise, the rear axle shafts (37) will get damaged. |
WS26.00-P-0415B | |
| 10 | Remove screws (5) and remove cross bridge (6) from rear axle differential (50). | *BA35.10-P-1006-01R | |
| 11 | Check elastomer bearings of cross bridge (6) for wear and damage. | If problems are found, ↓ replace cross bridge (6). |
|
| 12 | Install in the reverse order. | ||
| 13 | Perform wheel alignment measurement. | AR40.20-P-0200S |
REAR AXLE CARRIER
| Number | Designation | Model 223 except code Z07 (B7 armoring on special protection version) | ||||
|---|---|---|---|---|---|---|
| BA35.10-P-1004-01R | Front cross bridge to rear axle carrier | Screw | M10 | Stage 1 | Nm | 40 |
| Stage 2 | ∠° | 180 | ||||
| M14 | Nm | 170 | ||||
| Nut | Stage 1 | Nm | 40 | |||
| Stage 2 | ∠° | 180 | ||||
REAR AXLE CARRIER
| Number | Designation | Model 223 except code Z07 (B7 armoring on special protection version) | ||
|---|---|---|---|---|
| BA35.10-P-1006-01R | Bolt, rear axle differential to front cross member | Stage 1 | Nm | 90 |
| Stage 2 | ∠° | 90 | ||
REAR AXLE CARRIER
| Number | Designation | Model 223 except code Z07 (B7 armoring on special protection version) | ||
|---|---|---|---|---|
| BA35.10-P-1011-01R | Bolt, rear axle differential to rear transverse bridge | Stage 1 | Nm | 120 |
| Stage 2 | ∠° | 90 | ||
TIE ROD
| Number | Designation | Model 223 except code Z07 | ||
|---|---|---|---|---|
| BA35.20-P-1004-04P | Screw, tie rod adaptor to top left/right of rear axle carrier | Stage 1 | Nm | 50 |
| Stage 2 | ∠° | 90 | ||
