Remove/Install Steering Gear Of Rear Axle Steering - AR46.80-P-4000S
Model 223
with code 201 (Rear axle steering)
Model 223
with code 216 (Rear axle steering with large angle)
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Evaluating steering gear when repairing accident vehicles | AH46.20-P-9409-01A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Remove rear wheels. | AR40.10-P-1102A | |
| 2 | Remove rear mufflers of exhaust system. | If a dual-flow exhaust system is installed. Remove/install right rear muffler Model 223 with engine 279 with code 201 (Rear axle steering) Model 223 with engine 279 with code 216 (Rear axle steering with large angle) |
AR49.10-P-4825SVZ |
| Remove/install right rear muffler Model 223 with engine 176, 256 with code 201 (Rear axle steering) Model 223 with engine 176, 256 with code 216 (Rear axle steering with large angle) |
AR49.10-P-4825S | ||
| Remove/install right rear muffler Model 223 with engine 177.8 with code 201 (Rear axle steering) Model 223 with engine 177.8 with code 216 (Rear axle steering with large angle) |
AR49.10-P-4825SCA | ||
| Remove/install left rear muffler Model 223 with engine 279 with code 201 (Rear axle steering) Model 223 with engine 279 with code 216 (Rear axle steering with large angle) |
AR49.10-P-4824SVZ | ||
| Remove/install left rear muffler Model 223 with engine 176, 256 with code 201 (Rear axle steering) Model 223 with engine 176, 256 with code 216 (Rear axle steering with large angle) |
AR49.10-P-4824S | ||
| Remove/install left rear muffler Model 223 with engine 177.8 with code 201 (Rear axle steering) Model 223 with engine 177.8 with code 216 (Rear axle steering with large angle) |
AR49.10-P-4824SCA | ||
| 3 | Remove rear diagonal struts. | Model 223 with code 201 (Rear axle steering) except code Z07 (B7 armoring on special protection version) Model 223 with code 216 (Rear axle steering with large angle) except code Z07 (B7 armoring on special protection version) |
AR61.10-P-5142S |
| 4 | Remove covers from spring links. | ||

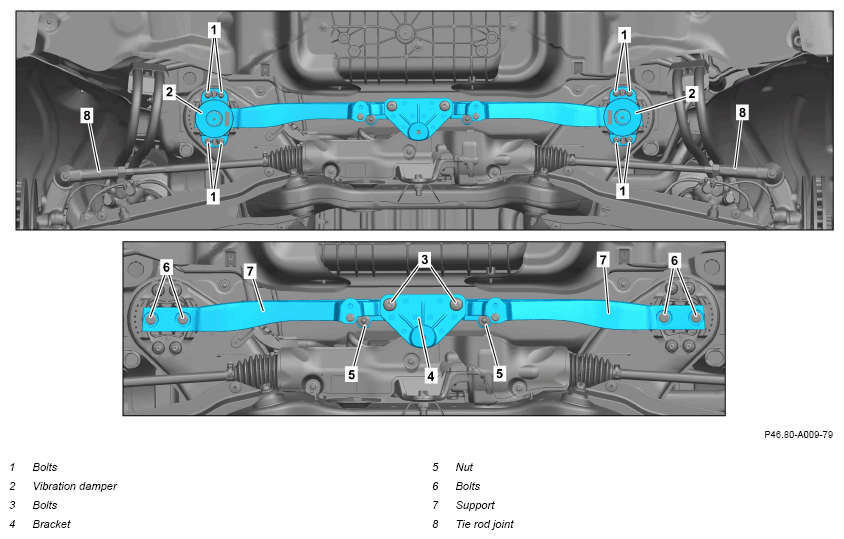

| 5 | Remove screws (1) from vibration damper (2). | If a dual-flow exhaust system is installed. | |
| *BA35.10-P-1012-01R | |||
| 6 | Remove vibration dampers (2). | If a dual-flow exhaust system is installed. | |
| 7 | Remove screws (3) and remove bracket (4). | *BA35.10-P-1010-01R | |
| 8 | Remove bolts (6). | *BA35.10-P-1008-01R | |
| 9 | Remove nut (5). | *BA35.10-P-1009-01R | |
| 10 | Remove supports (7). | ||
| 11 | Remove tie rod joint (8) from wheel carrier. | *BA35.20-P-1007-04P | |

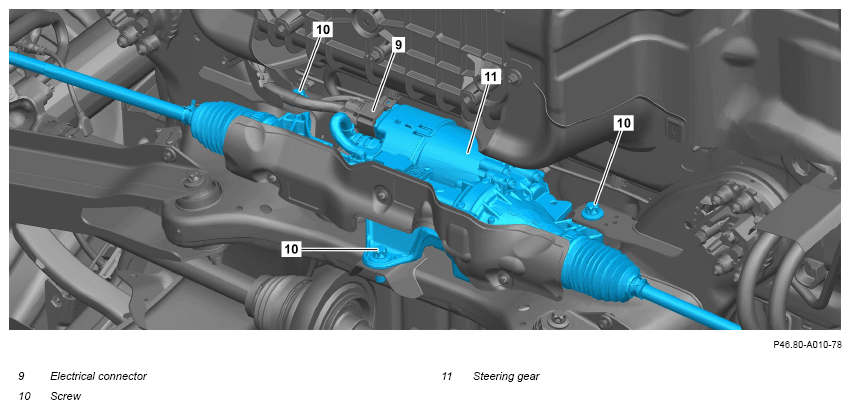

| 12 | Remove screws (10). | *BA46.80-P-1001-01C | |
| 13 | Detach electrical connection (9). | ||
| 14 | Remove steering gear (11) of rear axle steering. | ||
| Check | |||
| 15 | Check steering gear (11). | After repairing an accident vehicle. If there is a problem, ↓ Replace steering gear (11). |
|
| 16 | Install in the reverse order. | ||
| 17 | Commission rear axle steering control unit. | ||
| AD00.00-P-2000-06FR | |||
| Measure | |||
| 18 | Perform wheel alignment measurement. | AR40.20-P-0200S |
REAR AXLE CARRIER
| Number | Designation | Model 223 with code Z07 (B7 armoring on special protection version) | Model 223 except code Z07 (B7 armoring on special protection version) |
|
|---|---|---|---|---|
| BA35.10-P-1008-01R | Screw, support to rear axle carrier | Nm | 50 | 50 |
REAR AXLE CARRIER
| Number | Designation | Model 223 with code Z07 (B7 armoring on special protection version) | Model 223 except code Z07 (B7 armoring on special protection version) | |
|---|---|---|---|---|
| BA35.10-P-1009-01R | Nut, support to rear-end floor | Nm | 50 | 50 |
REAR AXLE CARRIER
| Number | Designation | Model 223 with code Z07 (B7 armoring on special protection version) | Model 223 except code Z07 (B7 armoring on special protection version) | |
|---|---|---|---|---|
| BA35.10-P-1010-01R | Screw, diagonal struts holder to support | Nm | 50 | 50 |
REAR AXLE CARRIER
| Number | Designation | Model 223 with code Z07 (B7 armoring on special protection version) | Model 223 except code Z07 (B7 armoring on special protection version) | |
|---|---|---|---|---|
| BA35.10-P-1012-01R | Screw, vibration damper to rear elastomer bearing of rear axle carrier | Nm | 9 | 9 |
TIE ROD
| Number | Designation | Model 223 except code Z07 | Model 223 with code Z07 | ||
|---|---|---|---|---|---|
| BA35.20-P-1007-04P | Nut, tie rod to wheel carrier | Stage 1 | Nm | 40 | - |
| Stage 2 | ∠° | 45 | - | ||
REAR AXLE AUXILIARY STEERING (HZL)
| Number | Designation | Model 223 | ||
|---|---|---|---|---|
| BA46.80-P-1001-01C | Screw, steering gear for rear axle steering to rear axle carrier | Stage 1 | Nm | 50 |
| Stage 2 | ∠° | 90 | ||
