Remove/Install Right Rear Muffler - AR49.10-P-4825SVZ
Engine 279 in model 223
| Risk of burn injuries, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. | AS49.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Remove/install | |||
| 1 | Remove underfloor paneling at left and right side. | Engine 279 in model 223 except code Z07 (B7 armoring on special protection version) |
AR61.30-P-1001S |

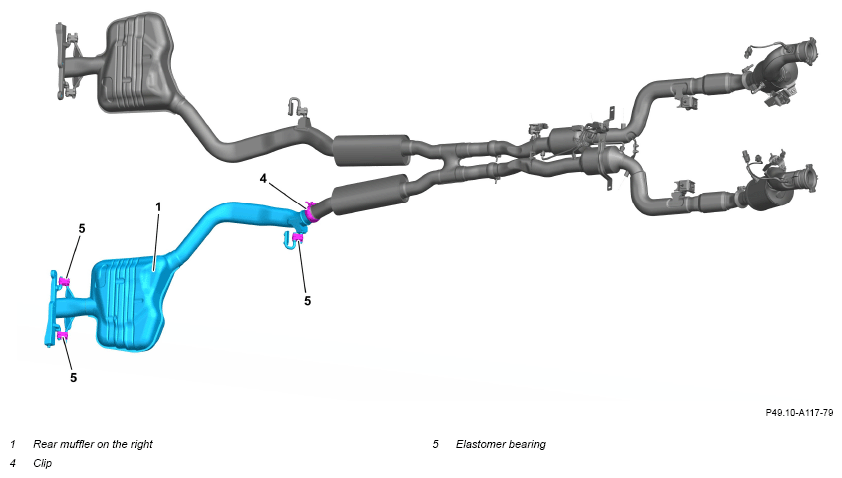

| 2 | Remove clamp (4). | ||
| *BA49.10-P-1020-02Y | |||
| 3 | Support right rear muffler (1) using a major assembly mount. | ||
| 000 588 23 62 00 Mounting plate | WS26.00-P-0415B | ||
| 000 588 24 62 00 Major assembly mount | WS01.00-P-0253B | ||
| 4 | Remove elastomer bearings (5) from the right rear muffler (1). | ||
| Antifriction paste, rubber parts 2.5 kg, DBL 6867.00 | *BR00.45-Z-1002-06A | ||
| 5 | Remove right rear muffler (1) from the major assembly mount. | ||
| 6 | Remove combustion and corrosion residues from connecting points and flange connections. | ||
| Check | |||
| 7 | Check elastomer bearings (5) for damage. | If there is a problem, Replace corresponding elastomer bearings (5). |
|
| 8 | Install in the reverse order. | ||
| Check | |||
| 9 | Check installation position and unobstructed movement of the right rear muffler (1). | If there is a problem, ↓ Align right rear muffler (1). |
|
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Perform engine test run and check exhaust system for leak tightness. |
EXHAUST SYSTEM
| Number | Designation | Engine 279 in model 223 | |
|---|---|---|---|
| BA49.10-P-1020-02Y | Clamp, rear left exhaust line to rear right exhaust line | Nm | 35 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1002-06A | Antifriction paste, rubber parts 2.5 kg, DBL 6867.00 | A 000 989 01 60 |
