Remove/Install Fuel Distributor With Injection Valves (ME-SFI) - AR07.03-P-1451SVZ

Engine 279 in model 223

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of explosion caused by fuel igniting. Risk of injury to skin and eyes caused by fuel spraying out at high pressure	Keep all ignition sources out of hazard area. Do not carry out any work on system when it is pressurized.	AS07.16-Z-0001-01A
	Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove ground line of battery.		AR54.10-P-0051S
2	Remove left and right charge air coolers.	Remove/install left water-cooled charge air cooler	AR09.41-P-6827SVZ
		Remove/install right water-cooled charge air cooler	AR09.41-P-6828SVZ
3	Remove low-temperature circuit expansion reservoir.		AR09.41-P-0001SVZ
4	Remove the throttle valve actuator.		AR07.51-P-1404SVZ
5	Remove purge valve.		AR47.30-P-8252SVZ
6	Remove purging pressure sensor with purge line.		AR47.30-P-8260SVZ
7	Remove left and right air pump switchover valves.	Mark installation position of vacuum hoses (2, 3, 4, 5).	AR14.30-P-7255SVZ
8	Remove boost pressure control pressure transducer.	Mark installation position of vacuum hoses (6, 7).	AR07.17-P-7004SVZ

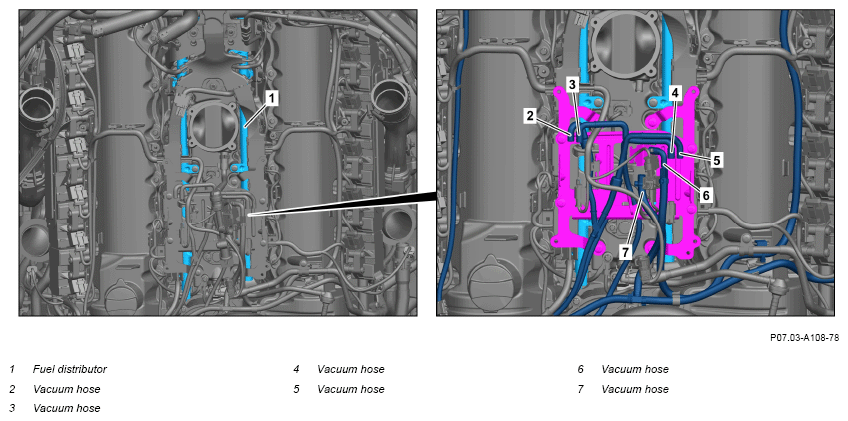

9	Expose vacuum hoses (2, 3, 4, 5, 6, 7) and place to one side.	: Observe the marking for the installation position.

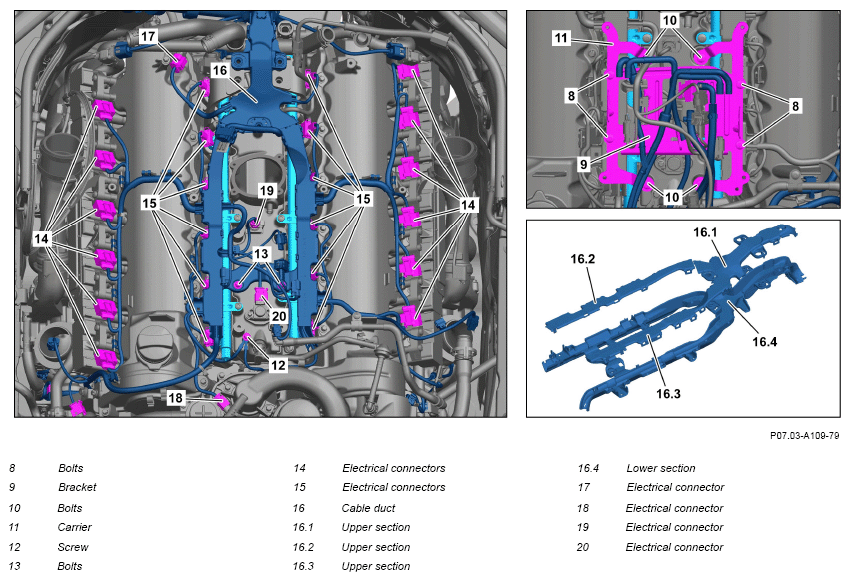

10	Unscrew the bolts (8) and remove the bracket (9).	Screw/bolt, switchover valve bracket to carrier	*BA09.41-P-1008-01Q
11	Unscrew screws (10) and remove carrier (11).	Screw/bolt, carrier to charge air distributor	*BA09.41-P-1007-01Q
12	Unscrew screw (12) and remove ground lines.
13	Release and disconnect electrical connectors (14, 15, 17, 18, 19, 20).
14	Unscrew screws (13).	Screw/bolt, cable duct to charge air distributor	*BA15.18-P-1001-01D
15	Open upper sections (16.1, 16.2, 16.3) and remove.	The line duct (16) consists of the upper sections (16.1, 16.2, 16.3) and the lower section (16.4).
16	Expose engine wiring harness and remove lower section (16.4).	Mark installation position of engine wiring harness. : Observe the marking for the installation position.
17	Remove holders (21, 22).
18	Position air extraction system in working area and switch on.
	000 588 00 85 00 Air extraction system		WS47.00-P-0039B
19	Release fuel pressure via service connection.		AR07.03-P-1460-01SVZ
		Cap on diagnostic socket	*BA07.03-P-1005-01G
		Pressure hose	Fig 2
20	Remove fuel hose (23) from fuel line (26) and place to one side.	Plug openings. Union nut, fuel hose to fuel line	*BA07.03-P-1004-01G
		Record plug	Fig 1
21	Unscrew screws (24, 25).	Screw/bolt, clamp for fuel line to charge air distributor	*BA07.03-P-1002-01G
		Screw/bolt, clamp for fuel line to bracket	*BA07.03-P-1003-01G
22	Remove fuel line (26) from fuel distributor (1).	Plug openings. Union nut, fuel line to fuel distributor	*BA07.03-P-1001-01G
		Record plug	Fig 1
23	Unscrew screws (27) and remove left and right engine lifting lugs (28, 29).	Screw/bolt, engine suspension lug to cylinder head	*BA01.30-P-1006-01Z
24	Remove screws (30).	Screw/bolt, fuel distributor to charge air distributor	*BA07.52-P-1001-01I
25	Remove fuel distributor (1) together with injection valves.	Plug openings. : Replace O-rings. Apply lubricant paste O-rings. Antifriction paste, rubber parts 2.5 kg, DBL 6867.00	*BR00.45-Z-1002-06A
		Record plug	Fig 1
26	Remove injection valves from fuel distributor (1).	If fuel distributor (1) is replaced.	AR07.03-P-6520SVZ
	Check
27	Check fuel distributor (1) with injection valves for wear and damage.	If damage or wear is present, ↓ Replace corresponding component. Remove/install injection valves (ME)	AR07.03-P-6520SVZ
28	Install in the reverse order.
	Check
29	Read out and delete fault memory using diagnostic system.
			AD00.00-P-2000-06FR
	Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
30	Perform engine test run and check engine for proper operation and leak tightness.
