Remove/Install Low-Temperature Circuit Expansion Reservoir - AR09.41-P-0001SVZ
Engine 279 in model 223
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove/install | |||
| 1 | Remove engine cover. | AR01.10-P-2405SVZ | |
| 2 | Carefully open cap (2) of low-temperature circuit expansion reservoir (1), release overpressure, and remove cap (2). | ||

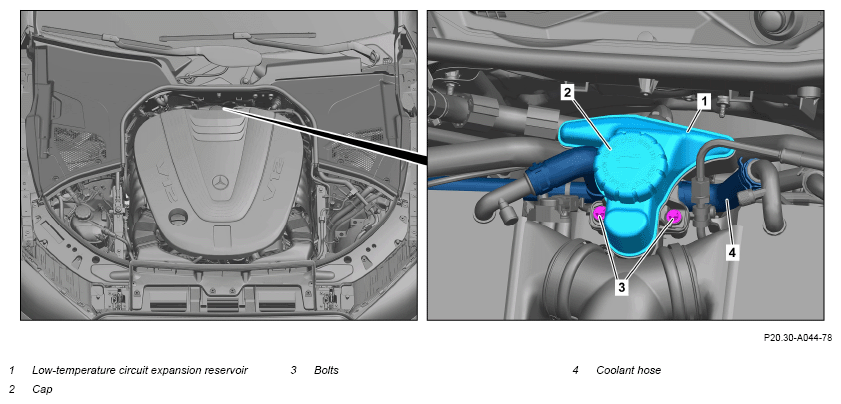

| 3 | Suction off the coolant out of the low-temperature circuit expansion reservoir (1). | Fig 1 | |
| 4 | Remove screws (3). | ||
| 5 | Remove low-temperature circuit expansion reservoir (1) from coolant hose (4) and take off. | AR20.20-P-7441-01RQ | |
| 6 | Seal coolant hose (4) with suitable protective cover. | Fig 2 | |
| 7 | Install in the reverse order. | ||
| Check | |||
| 8 | Check coolant level and correct if necessary. | *BF20.00-P-1001-02GA | |
| 9 | Check low-temperature circuit for leak tightness. | AR09.41-P-1011SVZ |
COOLING SYSTEM
| Number | Designation | Engine 279 in model 223 | |||
|---|---|---|---|---|---|
| BF20.00-P-1001-02GA | Cooling system | Workshop replacement amount | Main circuit | Liter | ≈16, 0 |
| Low-temperature circuit | Liter | ≈5, 0 | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | ||
| -38°C and below | % | 55/45 | |||
| Specifications | BB00.40-P-0310-01A | ||||
| Specifications | BB00.40-P-0325-06A | ||||
| Specifications | BB00.40-P-0326-06A | ||||
