Remove/Install Left Turbocharger - AR09.40-P-6026SC

Engine 176 in model 223

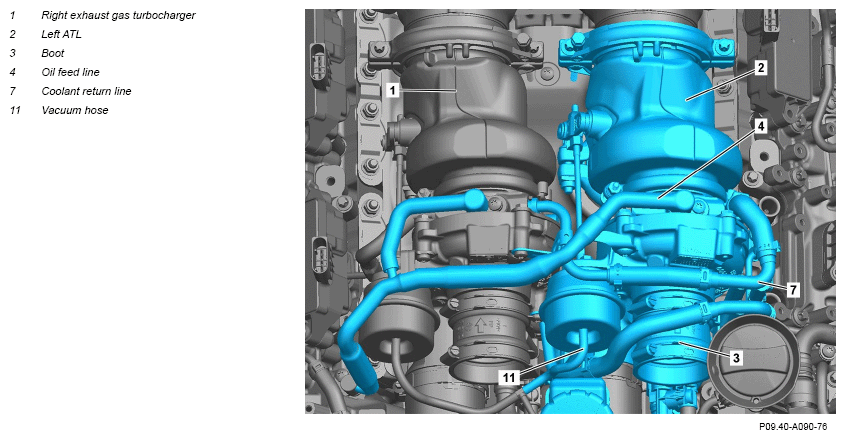

G16190104Courtesy of MERCEDES-BENZ USA

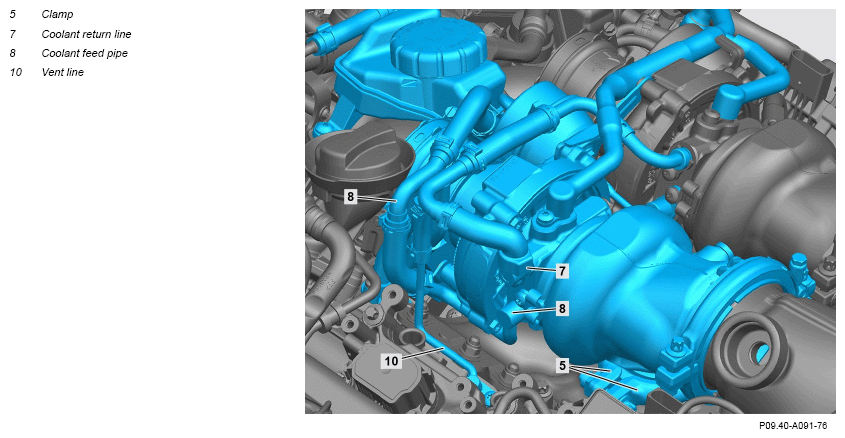

G16190105Courtesy of MERCEDES-BENZ USA

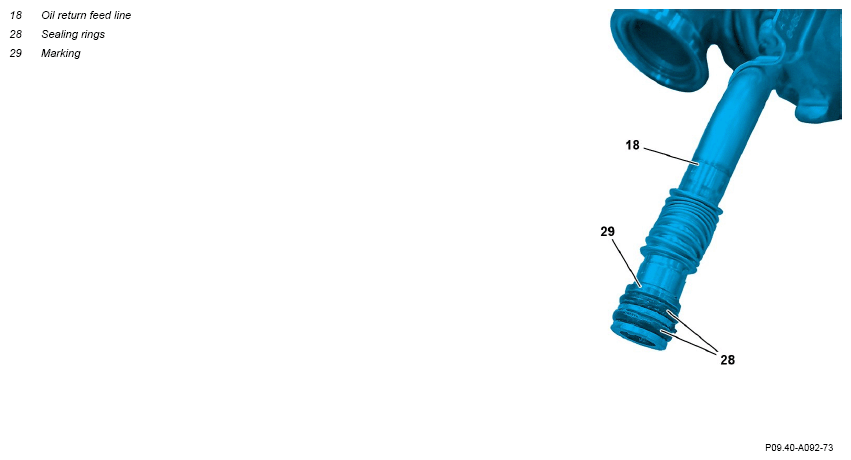

G16190106Courtesy of MERCEDES-BENZ USA

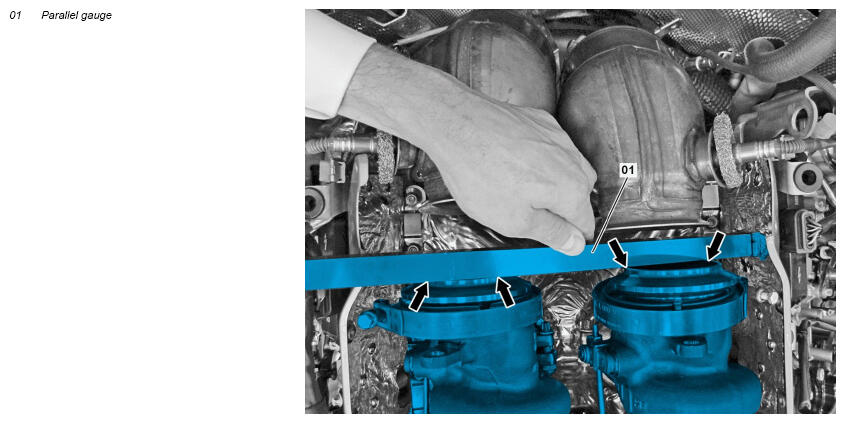

G16190107Courtesy of MERCEDES-BENZ USA
WARNING Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust. Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. AS49.00-Z-0001-01A
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
WARNING Risk of injury  due to fan starting unexpectedly Do not reach into the rotation or hazard area of the fan. Wear closed and close-fitting work clothes. AS20.40-Z-0001-01A
WARNING Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.
AS20.00-Z-0001-01A
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.
AS18.00-Z-0001-01A
Notice  Notes on coolant   AH20.00-P-2080-01KOA
Notice  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
REMOVINGINSTALLING Remove/install
1 Drain coolant of the engine cooling circuit. INSTALLATION IMPORTANT : Only install lower engine compartment lining after leak test. AR20.00-P-1142SC
2 Remove heat shield from exhaust gas turbocharger.   AR09.40-P-6044SC
3 Remove ignition coil for cylinders 5+6 (T4/3).   AR15.12-P-2008SC
4 Remove left heat shield at left exhaust gas turbocharger (2).   AR09.40-P-6026-01SC
    TORQUE SPECIFICATION Bolt, side heat shield to cylinder head cover *BA09.40-P-1007-01ZA
    SPECIAL TOOL Dismantling tool Fig 2
5 Remove left catalytic converter from left exhaust gas turbocharger (2). INSTALLATION IMPORTANT : Only install lower engine compartment lining after leak test. AR49.20-P-0101S
6 Remove right catalytic converter from right exhaust gas turbocharger (1). INSTALLATION IMPORTANT : Only install lower engine compartment lining after leak test. AR49.20-P-0102S
7 Remove boot (3) from left exhaust gas turbocharger (2). TORQUE SPECIFICATION Clamp, boot to exhaust gas turbocharger/air filter *BA01.20-P-1003-01J
8 Remove oil feed line (4) from left exhaust gas turbocharger (2).   AR09.40-P-6040SC
9 Remove coolant return line (7) with bleed line (10).   AR20.20-P-1101SC
10 Remove coolant feed pipe (8) on left exhaust gas turbocharger (2) and on left cylinder head.   AR20.20-P-1100SC
11 Remove top coolant expansion reservoir for low-temperature circuit and place to one side with connected lines. INSTALLATION IMPORTANT : Do not install upper engine cover until after the leak test. AR09.41-P-0050SC
12 Remove vacuum hose (11) from left exhaust gas turbocharger (2).
13 Remove charge air hose from left exhaust gas turbocharger (2). TORQUE SPECIFICATION Screw, clamp for charge air hose to exhaust gas turbocharger/air filter housing/charge air cooler *BA09.41-P-1018-01X
14 Remove clamp (5). INSTALLATION IMPORTANT : Install new clamp (5).
INSTALLATION IMPORTANT : Parallel gauge (01) must be flush with contact surfaces (arrows) so that alignment of right exhaust gas turbocharger (1) to left exhaust gas turbocharger (2) is equal.
TORQUE SPECIFICATION Bolt, turbocharger clamp to exhaust manifold
*BA09.40-P-1001-01ZA
    SPECIAL TOOL Parallel support Fig 3
15 Remove left exhaust gas turbocharger (2) with oil return feed line (18) upward. INSTALLATION NOTES :
Ensure that marking (29) at oil return feed line (18) is flush with crankcase.
Leaks will occur otherwise on the oil return line (18).
INSTALLATION IMPORTANT : Install new seal on left exhaust manifold.
INSTALLATION IMPORTANT : Replace sealing rings (28) and wet with lubricant.
Lubricant, rubber assembly 1 L
*BR00.45-Z-1010-06A
    SPECIAL TOOL Assembly tool Fig 1
16 Remove oil return feed line (18) from left exhaust gas turbocharger (2). When replacing the left exhaust gas turbocharger (2). AR09.40-P-6041SC
17 Install in the reverse order.
INSPECT Check
18 Check engine oil level and correct if necessary.
REFER TO MAINTENANCE     AP18.00-P-1812A
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
19 Perform engine test run. While doing so, check engine for proper operation and leak tightness.
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER

Number Designation Engine 176
BA01.20-P-1003-01J Clamp, boot to exhaust gas turbocharger/air filter Nm 1, 5
TURBOCHARGER

Number Designation Engine 176
BA09.40-P-1001-01ZA Bolt, turbocharger clamp to exhaust manifold Nm 21
TURBOCHARGER

Number Designation Engine 176
BA09.40-P-1007-01ZA Bolt, side heat shield to cylinder head cover Nm 9
CHARGE AIR LINE/CHARGE AIR COOLING

Number Designation Engine 176
BA09.41-P-1018-01X Screw, clamp for charge air hose to exhaust gas turbocharger/air filter housing/charge air cooler Nm 4
Fig 1: Identifying Assembly Tool (000 589 93 63 00)
G12939678Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Dismantling Tool (000 589 95 63 00)
G12619044Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Parallel Support (168 589 03 21 00)
G07494713Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1010-06A Lubricant, rubber assembly 1 L A 000 989 03 67
