Remove/Install Left Heat Shield On Left Turbocharger - AR09.40-P-6026-01SC

Engine 176 in model 223

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

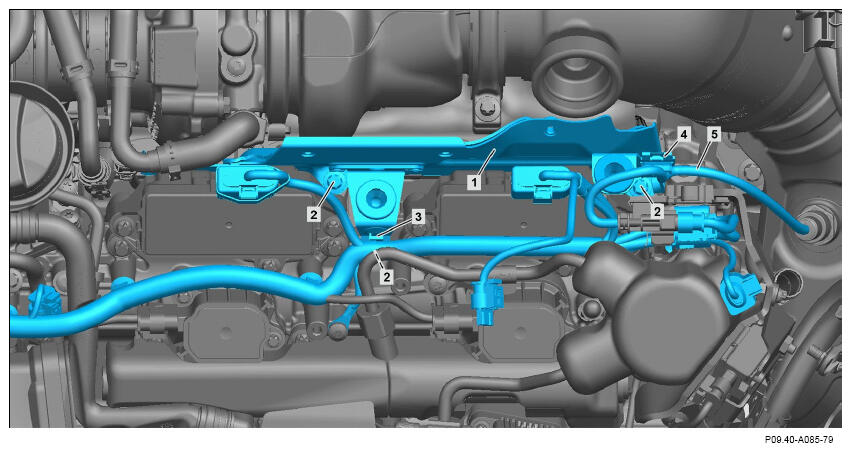

1. Unclip retaining clip (3) using disassembly tool.
2. Remove bracket (4) from heat shield (1) and place electric line (5) to one side.
3. Remove screw/bolts (2) .
4. Remove heat shield (1) upwards.
5. Check elastomer bearings of heat shield (1) for damage.

   If damage is present,

   ↓

   replace elastomer bearing.

6. Install in the reverse order
