Remove/Install Right Catalytic Converter - AR49.20-P-0102S
Model 223 with engine 176
MODIFICATION NOTES
| 24.05.2023 | Screw, exhaust system to exhaust gas turbocharger | Engine 176 in model 223 | BA49.10-P-1002-02Y |
| 20.10.2023 | Screw, exhaust system to exhaust gas turbocharger | Engine 176 in model 223 | BA49.10-P-1002-02Y |
| Risk of burn injuries, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. | AS49.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||

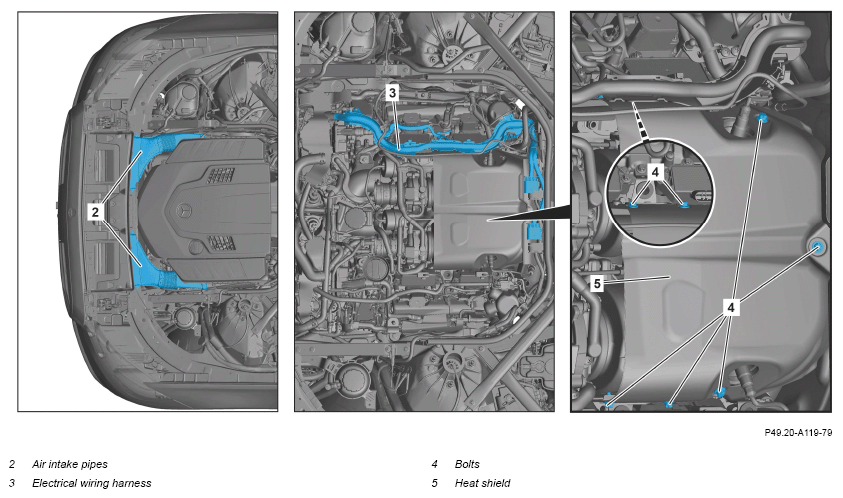

| 1 | Remove air intake pipes (2). | ||
| 2 | Remove air filter housing. | Remove/install right air filter housing | AR09.10-P-1152SC |
| Remove/install left air filter housing | AR09.10-P-1151SC | ||
| 3 | Remove left lambda sensor upstream of catalytic converter. | AR07.04-P-0081SC | |
| 4 | Remove electrical wiring harness (3) from engine until screws (4) can be accessed.. | ||
| 5 | Unscrew screws (4) and remove heat shield (5). | *BA09.40-P-1006-01ZA | |
| 6 | Unclip wiring harness of right lambda sensor upstream of catalytic converter at right heat shield bracket. | AR07.04-P-0083SC | |
| 7 | Remove inerting system line. | Model 223 with engine 176 with code 2U8 (Alternative refrigerant) |
AR86.10-P-0419S |
| 8 | Release, disconnect electrical connector of left lambda sensor downstream of catalytic converter and remove from engine. | AR07.04-P-0082SC | |
| 9 | Secure vehicle on the vehicle lift. | AR00.60-P-1006A | |
| 10 | Remove center and rear sections of lower engine compartment lining. | AR61.20-P-1105S | |
| 11 | Remove gasoline particulate filter temperature sensor (B163/2) from right catalytic converter (1r) and expose electric line. | Model 223 with engine 176 with code 961 (Exhaust system with OPF, generation 2.0) |
AR49.20-P-0200SB |

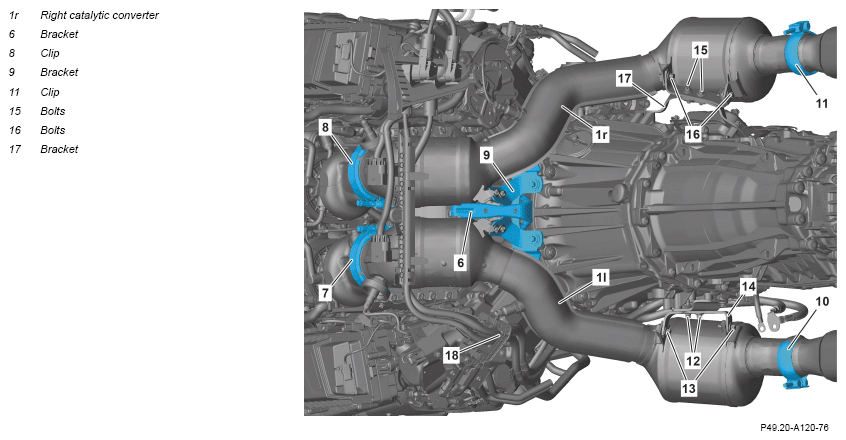

| 12 | Remove bracket (6) from crankcase. | *BA09.40-P-1005-01ZA | |
| 13 | Remove clamp (8) of right catalytic converter (1 r). | Leaks can occur otherwise. In the case of a two-piece clamp (8), replace screws and nuts. |
|
| *BA49.10-P-1002-02Y | |||
| 14 | Remove right catalytic converter (1r) from bracket (9). | *BA49.10-P-1008-02Y | |
| 15 | Remove bracket (9) from crankcase. | *BA49.10-P-1007-02Y | |
| 16 | Remove clamp (11). | Otherwise, leaks will occur in the exhaust system. |
|
| 17 | Unscrew screws (15, 16) and remove bracket (17). | *BA49.10-P-1005-02Y | |
| *BA49.10-P-1004-02Y | |||
| 18 | Secure left catalytic converter (11) and right catalytic converter (1r) with cable strap against falling down. | ||
| 19 | Remove automatic transmission. | Model 223 with engine 176 with transmission 725.1 | AR27.10-P-0005S |
| 20 | Remove right lambda sensor upstream of catalytic converter. | AR07.04-P-0083SC | |
| 21 | Release, disconnect electrical connector of gasoline particulate filter differential pressure sensor (B163/6) and remove gasoline particulate filter differential pressure sensor (B163/6) with bracket from cylinder head. | Model 223 with engine 176 with code 961 (Exhaust system with OPF, generation 2.0) |
AR07.04-P-0025SC |
| 22 | Release, disconnect electrical connector of right lambda sensor downstream of catalytic converter and remove from engine. | AR07.04-P-0084SC | |
| 23 | Remove brackets (6, 9) downward. | ||
| 24 | Release right catalytic converter (1 r) and remove downward. | ||
| 25 | Remove combustion and corrosion residues on flange connections. | ||
| 26 | Install in the reverse order. | ||
| 27 | Check installation position and unobstructed movement of exhaust system. | If there are problems: Align the exhaust system. | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 28 | Perform engine test run and in this connection check exhaust system for leaks. | ||
| 29 | Install center and rear lower engine compartment lining. | AR61.20-P-1105S |
TURBOCHARGER
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.40-P-1005-01ZA | Bolt, rear heat shield bracket to crankcase | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.40-P-1006-01ZA | Bolt, upper heat shield to bracket/side heat shield | Nm | 9 |
EXHAUST SYSTEM
| Number | Designation | Engine 176 in model 223 | |
|---|---|---|---|
| BA49.10-P-1002-02Y | Screw, Exhaust system to Exhaust gas turbocharger | Nm | 8 |
EXHAUST SYSTEM
| Number | Designation | Engine 176 in model 223 | |
|---|---|---|---|
| BA49.10-P-1004-02Y | Screw, Exhaust system bracket to transmission | Nm | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 176 in model 223 | |
|---|---|---|---|
| BA49.10-P-1005-02Y | Screw, Catalytic converter bracket to exhaust system | Nm | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 176 in model 223 | |
|---|---|---|---|
| BA49.10-P-1007-02Y | Screw, Exhaust system to Crankcase bracket | Nm | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 176 in model 223 | |
|---|---|---|---|
| BA49.10-P-1008-02Y | Screw, butterfly bracket to catalytic converter | Nm | 20 |
