Service Sheet For Service A (15,000 Km) Or Service B (30,000 Km) - AP00.20-D-1551TS

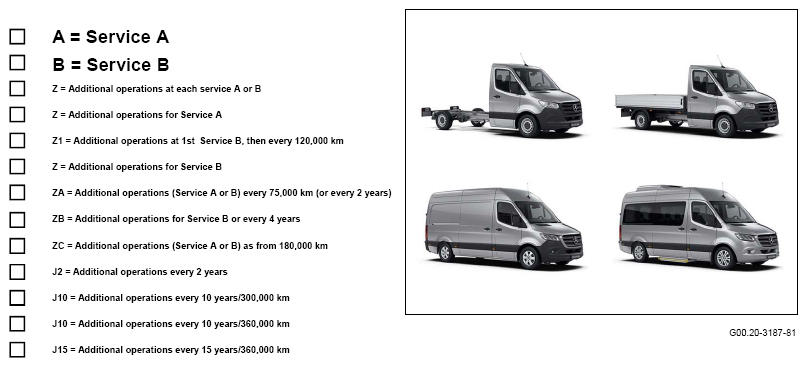

Model 907 with engine 651

with code JI2 (Starting distance for maintenance interval 15,000 km)

Customer.............................................

VIN/license plate number.............................................

Completion time/date.............................................

Notes/explanations.............................................

The following activities are hereby confirmed:

• Completion of relevant service operations

Order number.............................................

Current mileage.............................................

Signature.............................................

A	B		Input condition not OK:	ⓧ
Completed
■	■
		Service reception
□	□	The complete reception report for service on the vehicle is available.	...............	◦
			If no vehicle inspection dialog is possible in XENTRY Mobile (with mobile terminal/tablet), ↓ process reception report.
			Model 907		AP00.20-D-0009TSC
			Model 907		AP00.20-D-0009TS
			To be performed by the Service Advisor  (where market-specific conditions require). Fully process all acceptance items and the maintenance items listed in the service sheet, only then is the service scope completely performed.
		Brake system
□	□	Perform brake test and enter result in table	...............	◦	AP42.00-D-4290TS
		Vehicle exterior
	□	Check exterior lighting for proper operation.	...............	◦
	□	Check headlamp range adjustment for proper operation.	...............	◦	AP82.10-D-8252TS
□	□	Correct tire pressure, including spare wheel and enter adjusted tire pressure into table.	...............		AP40.15-D-4060TS
		Vehicle interior
	□	Check windshield wipers, rear window wiper, windshield washer system and headlamp cleaning system for proper operation.	...............	◦
□	□	Check seat belts, seat belt buckles and seat belt buckle extensions on driver's seat and front passenger seat for external damage and proper function.	...............	◦	AP82.30-D-8252TS
			If components are damaged, ↓ Replace damaged parts with new parts. After obtaining special order.		AP91.40-D-9150TS
	□	Check first-aid kit (soft sided).	...............	◦
			Enter expiration date for first-aid kit (soft sided) here: _______ If the expiration date has been reached, exceeded or will be reached or exceeded within the next service interval, ↓ replace first-aid kit (soft sided). After obtaining special order.
	□	Check water drain bores in floor area of sliding door	...............	◦
			With CODE T16 (Right sliding door) or with CODE T19 (Left sliding door)		AP72.00-D-7254TS
		Engine compartment
□	□	Engine: Change oil and oil filter.	...............
			Engine 651		AP18.00-D-0101TS
□	□	Brake system: Check fluid level.	...............	◦
	□	Power steering system: Check fluid level.	...............	◦	AP42.10-D-4210TS
			With code ZG1 (Engageable all-wheel drive) or with code ZG3 (Engageable all-wheel drive with gear reduction)		AP46.00-D-4612TS
□	□	Windshield washer system: Check/correct fluid level	...............	◦
	□	Check poly-V-belt in visible area for wear and damage.	...............	◦	AP82.35-D-8210TS
					AP13.22-D-1351TS
			If poly-V-belt is damaged, ↓ replace poly-V belt. After obtaining special order.
	□	Check all visible parts in engine compartment for damage and leaks.	...............	◦
			If fluid loss or damage is present, ↓ determine cause and correct. After obtaining special order.		AP00.20-D-0053TS
		Underside of vehicle
	□	Check all visible parts of vehicle underside for damage and leaks.	...............	◦
			If fluid loss or damage is present, ↓ determine cause and correct. After obtaining special order.		AP00.20-D-0054TS
	□	Check tie rod and drag link ball joints play, check boots.	...............	◦
			If parts are damaged, ↓ determine cause and correct. After obtaining special order.		AP46.00-S-4651E
	□	Check front axle and front axle joint.	...............	◦
			With code ZG1 (Engageable all-wheel drive) or with code ZG3 (Engageable all-wheel drive with gear reduction) If fluid loss or damage is present, ↓ determine cause and correct. After obtaining special order.		AP33.10-S-3358E
	□	Check propeller shaft and flex disks.	...............	◦
			If components are damaged, ↓ determine cause and correct. After obtaining special order.		AP41.10-S-4152E
	□	Check suspension struts or shock absorber, springs and auxiliary rubber springs.	...............	◦
			If components are damaged, ↓ determine cause and correct. After obtaining special order.		AP32.25-S-3255E
□	□	Check tires for damage and crack formation and enter result in table.	...............	◦
			If tires are damaged, ↓ determine cause and correct. After obtaining special order.		AP40.10-S-4051E
		External refueling  Z = Additional operations at each service A or B
□	□	Fill up with AdBlue®.	...............
			After obtaining special order.		AP49.20-D-0101TS
		Underside of vehicle  Z = Additional operations for Service A
□		Check air suspension bellows for damage.	...............	◦
			with code CB2 (Air suspension comfort suspension) If air suspension bellows are damaged, ↓ Determine cause, rectify it and replace damaged parts. After obtaining special order.
		Engine compartment/vehicle interior  Z = Additional operations for Service A
□		Auxiliary battery: Check/correct fluid level.	...............	◦
			Only if fleece battery not installed. With code E2I (Auxiliary battery for retrofit consumer, interior) or with code E2M (Auxiliary battery for retrofit consumer, engine compartment)
□		Check seat belts, seat belt buckles and seat belt buckle extensions in the rear passenger compartment for external damage and proper function.	...............	◦
			Model 907 If components are damaged, ↓ Replace damaged parts with new parts. After obtaining special order.		AP91.40-D-9150TS
		Underside of vehicle  Z1 = Additional operations at 1 st Service B, then every 120,000 km
□	□	Automatic transmission: Change oil and oil filter.	...............
			Transmission 722.9		AP27.00-D-2702TS
			Transmission 725.0		AP27.00-D-2702TSC
			Oil quality to be used: Specifications for Operating Fluids (BeVo), Sheet 236.15 or 236.17. Mercedes-Benz oil recommended.
□	□	Transfer case: Change oil.	...............
			With code ZG1 (Engageable all-wheel drive) or with code ZG3 (Engageable all-wheel drive with gear reduction)		AP28.00-D-2801TSC
			Oil quality to be used: Specifications for Operating Fluids (BeVo), Sheet 236.12. Mercedes-Benz oil recommended.
□	□	Front axle: Change oil.	...............
			With code ZG1 (Engageable all-wheel drive) or with code ZG3 (Engageable all-wheel drive with gear reduction)		AP33.00-D-3301TSC
			Oil quality to be used: Specifications for Operating Fluids (BeVo), Sheet 235.8. Mercedes-Benz oil recommended.
		Vehicle exterior  Z = Additional operations for Service B
	□	Lubricate hinges of rear-end doors.	...............
			With code W54 (Rear-end door, two-wing, 270 degrees)		AP72.00-D-7225TS
	□	Lubricate trailer coupling.	...............
			With CODE Q20 (Trailer hitch (jaw-type))		AP00.20-D-0020TS
	□	Trailer coupling: Check function, play and mounting.	...............	◦
			With CODE Q20 (Trailer hitch (jaw-type))		AP31.10-D-3151TS
		Vehicle interior  Z = Additional operations for Service B
	□	Check seat belts, seat belt buckles and seat belt buckle extensions in the rear passenger compartment for external damage and proper function.	...............	◦
			Model 907 If components are damaged, ↓ Replace damaged parts with new parts. After obtaining special order.		AP91.40-D-9150TS
		Engine compartment/vehicle interior  Z = Additional operations for Service B
	□	Replace air filter element.	...............	◦
					AP09.10-D-0980TS
			Replace after 4 years at the latest. Note the installation date; refer to the confirmations in the maintenance booklet or DSB! Air filter insert replaced_____Yes_____No.
	□	Auxiliary battery: Check/correct fluid level.	...............	◦
			Only if fleece battery not installed. With code E2I (Auxiliary battery for retrofit consumer, interior) or with code E2M (Auxiliary battery for retrofit consumer, engine compartment)
		Underside of vehicle  Z = Additional operations for Service B
	□	Check air suspension bellows for damage.	...............	◦
			with code CB2 (Air suspension comfort suspension) If air suspension bellows are damaged, ↓ Determine cause, rectify it and replace damaged parts. After obtaining special order.
	□	Assess condition of brakepads and enter result in table.	...............	◦
			Model 907 with super single tires or with twin tires		AP42.10-D-4252TS
			Subject to separate repair order, remove/install rear wheels. If the brake pads have reached the wear limit, ↓ replace brake linings. After obtaining special order.
	□	Assess condition of brake disks.	...............	◦
			Model 907 with super single tires or with twin tires		AP42.10-D-4256TS
			Subject to separate repair order, remove/install rear wheels. If the brake disks have reached the wear limit or they are cracked, ↓ Replace brake disks. After obtaining special order.
	□	Check retarder.	...............	◦
			With code O01 (Retarder retrofitted) or with code PB2 (Master code for VMC retarder)		AP43.40-D-7107TS
		Engine compartment  ZB = Additional operations for Service B or every 4 years
	□	Replace fuel filter.	...............		AP47.20-D-0780TS
			Replace at least every 4 years. Note the installation date; refer to the confirmations in the maintenance booklet or DSB!
		Vehicle interior  ZC = Additional operations (Service A or B) as from 180,000 km
□	□	Diesel particulate filter (DPF): Check volumetric efficiency.	...............	◦	AP49.20-D-0004TS
			Note the installation date; refer to the confirmations in the maintenance booklet or DSB! DPF replaced_____Yes_____No.
		Engine compartment  J2 = Additional operations every 2 years
□	□	Hydraulic brake system: Replace brake fluid.	...............		AP42.00-D-4280TS
		Vehicle interior  ZA = Additional operations (Service A or B) every 75,000 km (or every 2 years)
□	□	Replace dust filter for heater/ventilation.	...............
			With CODE H81 (Ventilation system with filter)		AP83.00-D-8381TS
□	□	Replace activated charcoal particle filter for air conditioning system.	Replace after 2 years at the latest. Note the installation date; refer to the confirmations in the maintenance booklet or DSB!
			With code HH4 (THERMOTRONIC automatic air conditioning) or with code HH9 (TEMPMATIC semi-automatically regulated air conditioning)		AP83.00-D-8381TS
□	□	Replace dust filter for roof-mounted air conditioning system.	Replace after 2 years at the latest. Note the installation date; refer to the confirmations in the maintenance booklet or DSB!
			With code H08 (Roof-mounted air conditioning system, uprated) or with code HH7 (Roof-mounted air conditioning system, basic) or with code HK4 (Rear air conditioning system, uprated)		AP83.50-D-8386TS
		Underside of vehicle  J10 = Additional operations every 10 years/300,000 km
□	□	Rear axle: Change oil.
			Rear axle 741.4		AP35.00-D-3501TSR
			Oil quality to be used: Specifications for Operating Fluids (BeVo), Sheet 236.31. Mercedes-Benz oil recommended.
		Underside of vehicle  J10 = Additional operations every 10 years/360,000 km
□	□	Manual transmission: Change oil.	...............
			Oil quality to be used: Specifications for Operating Fluids (BeVo), Sheet 235.3 or 235.10. Mercedes-Benz oil recommended.
		Engine compartment  J15 = Additional operations every 15 years/360,000 km
□	□	Replace coolant.	...............		AP20.00-D-2080TS
			Pay attention to composition of coolant!
