Check Retarder - AP43.40-D-7107TS
Model 907
with code O01 (Retarder retrofitted.)
Model 907
with code PB2 (Mastercode retarder VMC)
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Check | |||

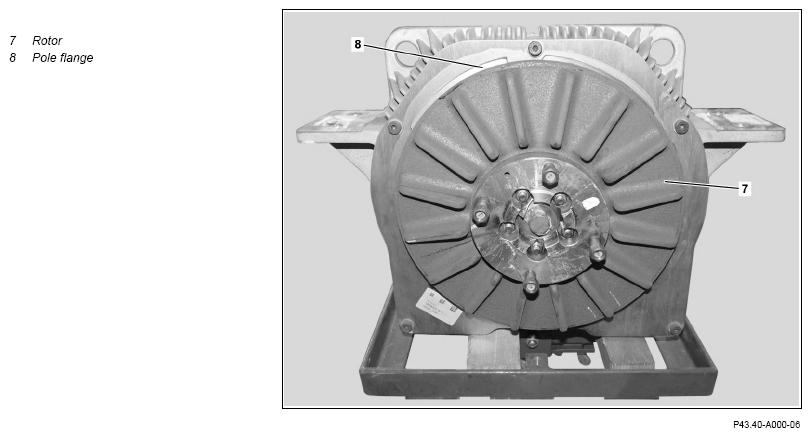

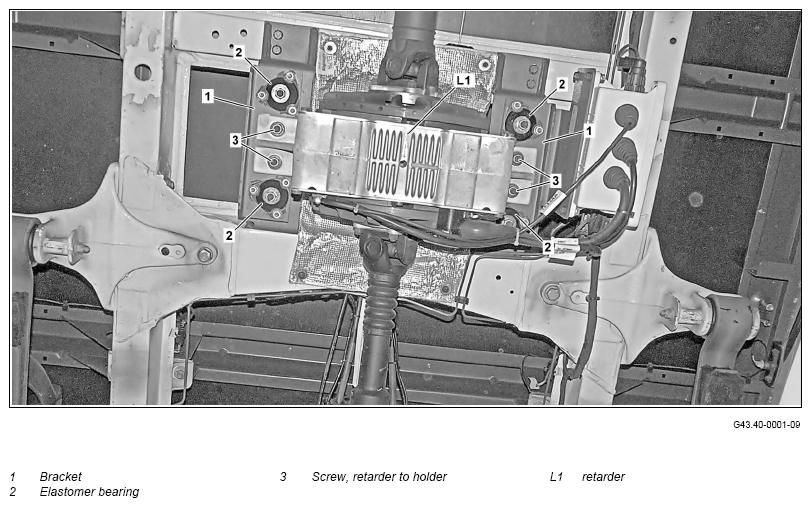

| 1 | Check mountings of retarder (L1) for damage. | If damage is present, Determine and rectify cause, and replace damaged parts. |
|
| 2 | Check mounts for firm seating. | *BA43.40-N-1001-01C | |
| *BA43.40-N-1002-01C | |||
| *BA43.40-N-1003-01C | |||
| 3 | Check electric lines to retarder (L1) for condition, routing and corrosion. | If problems are found, Determine and rectify cause, and repair or replace damaged parts. |
| Number | Designation | Model 907 with code O01 or PB2 | ||
|---|---|---|---|---|
| BA43.40-N-1001-01C | Retarder to bracket | M8X25 | Nm | 22 |
| M12X1.5 | Nm | - | ||
| Number | Designation | Model 907 with code O01 or code PB2 | ||
|---|---|---|---|---|
| BA43.40-N-1002-01C | Bracket to frame | M8X25 | Nm | 22 |
| M12X1.5 | Nm | - | ||
| Number | Designation | Model 907 with code O01 or PB2 | ||
|---|---|---|---|---|
| BA43.40-N-1003-01C | Elastomer bearing to holder | M8 | Nm | 22 |
| M12 | Nm | 90 | ||
