Lubricate Hinges Of Rear-End Door - AP72.00-D-7225TS
Model 907
with code W54 (2-wing rear-end door, 270 degrees)
| Lubricate | |||

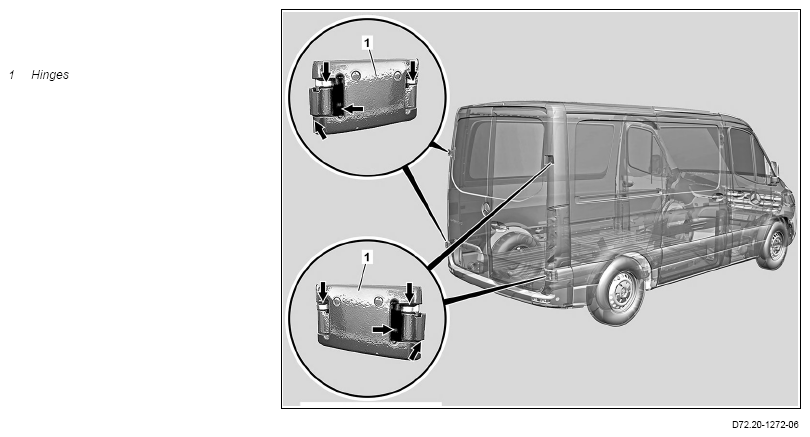

| 1 | Lubricate hinges (1) at points shown (arrows). | Synthetic grease, sliding roof 500 g, DB supply specification 6827.60 | *BR00.45-Z-1004-06A |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1004-06A | Synthetic grease, sliding roof 500 g, DB supply specification 6827.60 | A 001 989 46 51 |
