Remove/Install Front Axle Brake Caliper - Ar42.10-D-0070TS
Model 907
MODIFICATION NOTES
| 05.06.2020 | Work procedure revised | The whole document |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. | Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. | AS42.50-Z-0002-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on bleeding brake system | AH42.10-N-0002-01A | ||
| Remove | |||
| 1 | Clean area surrounding cap of brake fluid reservoir. | Assembly cleaner | *BR00.45-Z-1028-04A |
| 2 | Remove cap from brake fluid reservoir. | ||
| Check | |||
| 3 | Check fill level in brake fluid reservoir. | The fill level must not be above the maximum marking. This prevents the brake fluid reservoir from overflowing when the brake pistons are pushed back. |
|
| If the fill level in brake fluid reservoir is too high, ↓ extract brake fluid. Extraction bellows |
|||
| 4 | Remove each front wheel. | AR40.10-D-1100TS | |

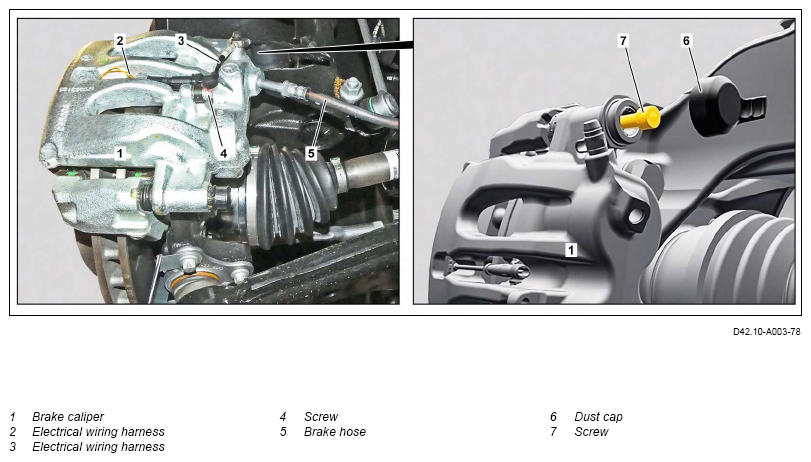

| 5 | Disconnect electrical wiring harness (2) from electrical wiring harness (3) to electrical connector. | If installed on affected side of vehicle. | |
| 6 | Remove electrical wiring harness (3) from brake caliper (1). | If installed on affected side of vehicle. |
|
| 7 | Remove brakepads on front axle. | AR42.10-D-1610TS | |
| 8 | Remove brake hose (5). | If cracks or chafe marks are present on brake hose (5), ↓ replace brake hose (5). |
AR42.10-D-0026TS |
| 9 | Remove dust cap (6). | ||
| 10 | Remove brake caliper (1). | To do so, remove upper guide pin. |
|
| Check | |||
| 11 | Check condition of brake disk and gauge degree of wear. | ||
| If the brake disk is outside the test tolerances, ↓ Replace brake disks in sets. |
AP42.10-D-4256TS | ||
| AR42.10-D-0230TS | |||
| 12 | Check existing version of brake caliper support. | When replacing the brake caliper (1) together with the brake caliper guide or when replacing the brake caliper guide. | |
| Front axle brake caliper support modified | BT42.10-D-0222-01TS | ||
| 13 | Check brake caliper (1) and dust boot on each brake piston for leak tightness and damage. | If a leak or damage is present, ↓ Replace brake caliper (1). |
|
| 14 | Check boots and brake caliper support for damage and ease of movement. | If damage or sluggishness is present, ↓ replace affected components. |
|
| Clean | |||
| 15 | Clean thread of upper guide pin. | Model 907 Assembly cleaner |
*BR00.45-Z-1028-04A |
| 16 | Check upper guide pin for damage. | Model 907 If damage is present, ↓ replace upper guide pin. |
|
| Install | |||
| 17 | Install brake caliper (1). | To do so, screw in upper guide pin. |
*BA42.10-N-1004-10TS |
| 18 | Install dust cap (6). | ||
| 19 | Install brake hose (5). | AR42.10-D-0026TS | |
| 20 | Install front axle brakepads. | AR42.10-D-1610TS | |
| 21 | Attach electrical wiring harness (3) to brake caliper (1). | If installed on affected side of vehicle. | |
| *BA42.10-N-1003-10TS | |||
| 22 | Connect electrical wiring harness (2) with electrical wiring harness (3) to electrical connector. | If installed on affected side of vehicle. | |
| 23 | Mount respective front wheel. | AR40.10-D-1100TS | |
| 24 | Bleed brake system. | AR42.10-D-0010TS | |
| Check | |||
| 25 | Perform brake test on test stand. | ||
| AP42.00-D-4290TS |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA42.10-N-1003-10TS | Bolt, wiring harness for wear indicator to brake caliper | Nm | 8 |
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA42.10-N-1004-10TS | Screw/guide pin, brake caliper to brake caliper support | Nm | 34 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
