Remove/Install Brake Hose To Front Axle - Ar42.10-D-0026TS

Model 907

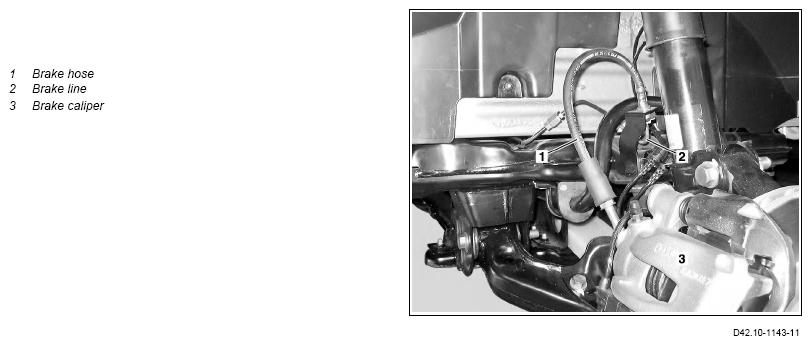

Shown on brake system on model 907, left front wheel removed

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of accident  when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work.	Before starting the engine, actuate brake pedal several times until pressure is built up and maintained in the brake system.	AS42.50-Z-0002-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on inspecting corrosion on brake lines	Minibus, leichte Transporter	AH42.50-Z-0002-01A
	Remove/install
1	Raise vehicle.		AR00.60-D-1000-04TS
	Special instructions for lifting and supporting vehicle		AH00.60-N-0100-01TS
2	Remove brake line (2) from respective brake hose (1).	Installation: Do not twist brake hose (1) when installing and make sure that it can move freely. Otherwise, the brake hose (1) may be damaged and the brake system may fail. Seal the connections immediately, collect escaping brake fluid. Retaining screw, brake line to brake hose	*BA42.10-N-1001-14TS
		Box wrench bit	Fig 3
		Record plug	Fig 2
3	Remove brake hose (1). Note on calculation of tightening torque when using insertion or socket tools with various effective lengths	To do so, remove threaded connection of brake hose (1) from brake caliper (3). Seal connections, collect escaping brake fluid.	AH00.00-P-0015-01CW
		Brake hose to brake caliper	*BA42.10-N-1002-14TS
		Box wrench socket	Fig 1
		Record plug	Fig 2
4	Install in the reverse order
5	Bleed brake system.		AR42.10-D-0010TS

BRAKE LINES, BRAKE HOSES

BRAKE LINES, BRAKE HOSES

Fig 1: Box Wrench Socket (000 589 77 03 00)

Fig 2: Record Plug (129 589 00 91 00)

Fig 3: Box Wrench Bit (000 589 75 03 00)
