Bleed Brake System - Ar42.10-D-0010TS
Model 907
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | ||
| Risk of poisoning from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid | Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | ||
| Notes on externally invisible brake fluid loss | AH42.10-P-9406-02A | |||
| Notes on bleeding brake system | AH42.10-N-0002-01A | |||
| Brake fluid notes | AH42.50-P-0001-01A | |||
| Notes on repairs to brake system | AH42.00-P-0003-01A | |||
| Bleeding | ||||
| 1 | Clean area surrounding brake fluid reservoir. | Assembly cleaner | *BR00.45-Z-1028-04A | |
| 2 | Remove cap from brake fluid reservoir. | |||
| 3 | Extract brake fluid from brake fluid reservoir. | Extraction bellows |
||
| 4 | Add new brake fluid up to "MAX" marking in brake fluid reservoir. | |||
| Brake fluids (DOT 4 plus) | BB00.40-P-0331-00A | |||
| 5 | Connect filling unit (5). | |||
| 000 588 01 82 00 Filling unit | WS25.00-P-0016B | |||
| 6 | Raise vehicle. | AR00.60-D-1000-04TS | ||
| Special instructions for lifting and supporting vehicle | AH00.60-N-0100-01TS | |||

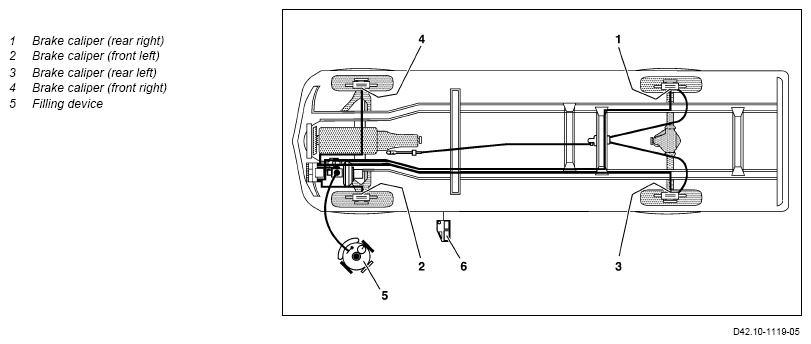

| 7 | Perform bleeding procedure in numerical sequence of brake calipers (1, 2, 3, 4). | AR42.10-D-0010-02TS | ||
| 000 588 01 82 00 Filling unit | WS25.00-P-0016B | |||
| *BA42.10-N-1003-12TS | ||||
| *BA42.10-N-1002-10TS | ||||
| 8 | Bleed clutch actuation system. | Model 907 | AR25.20-D-0072TS | |
| AR25.20-D-0072TSF | ||||
| 9 | Lower vehicle. | |||
| 10 | Remove filling unit (5) from brake fluid reservoir. | |||
| Check | ||||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | ||
| 11 | Check brake system for leaks. | AR42.10-D-0100-01TS | ||
| 12 | Check fluid level in brake fluid reservoir. | |||
| Brake fluids (DOT 4 plus) | If the brake fluid reservoir is not filled correctly. ↓ correct fluid level. |
BB00.40-P-0331-00A | ||
| 13 | Mount cap onto brake fluid reservoir. | |||
| Number | Designation | Model 907 | |
|---|---|---|---|
| BA42.10-N-1002-10TS | Vent valve at front axle brake caliper | Nm | 14 |
| Number | Designation | Model 907 except code IT5 (5.0 tonner) | Model 907 with code IT5 (5.0 tonner) | |
|---|---|---|---|---|
| BA42.10-N-1003-12TS | Bleed valve to brake caliper | Nm | 14 | 14 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
