Overview Of Interior Illumination (IBL) System Components - GF82.20-P-9997LF
Model 217, 222

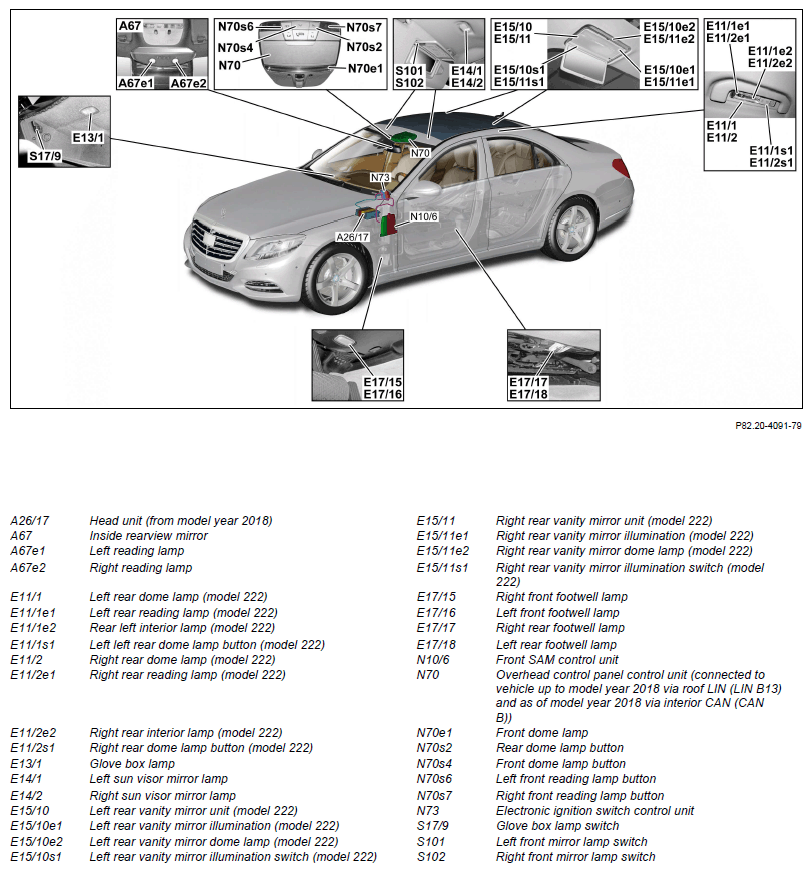

Manual interior lighting control, shown on model 222.0
In model 217, the following components are also installed, but they are not shown:

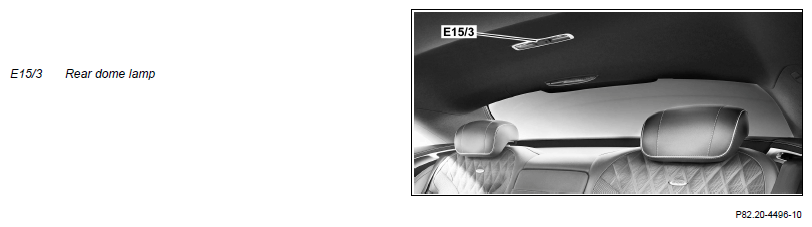

- Rear dome lamp (E15/3)
- Rear interior lamp (E15/3e3)

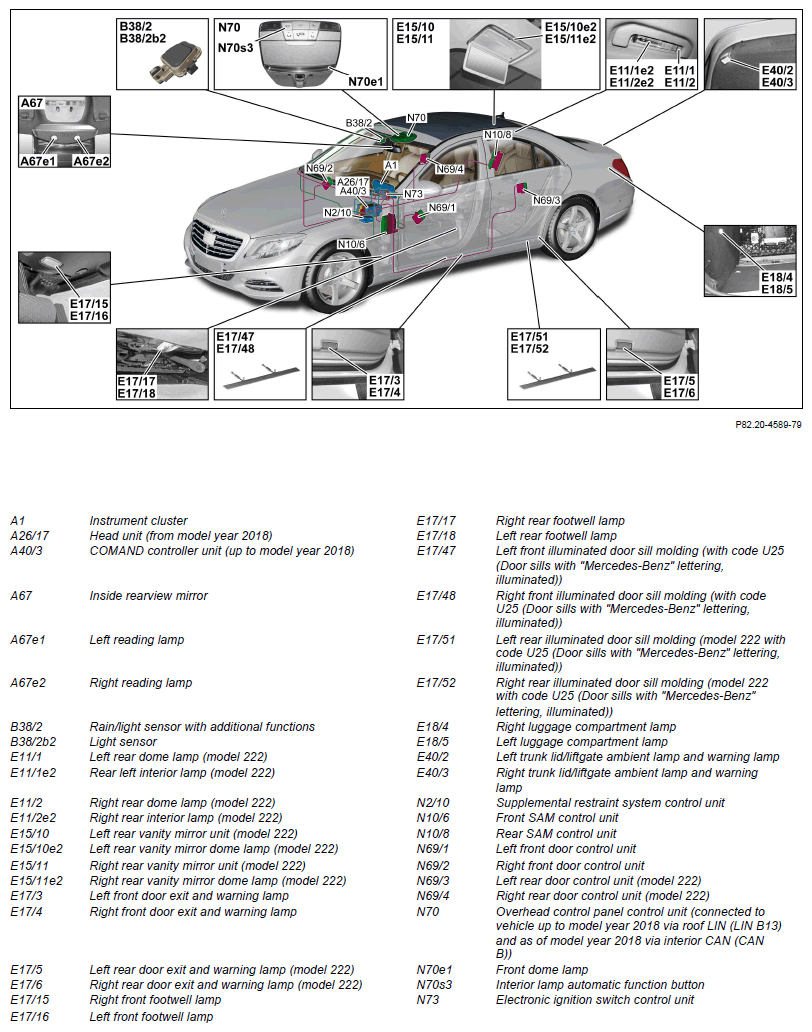

Automatic interior lighting control, shown on model 222.0
In model 217, the following components are also installed, but they are not shown:
- Rear dome lamp (E15/3)
- Rear interior lamp (E15/3e3)

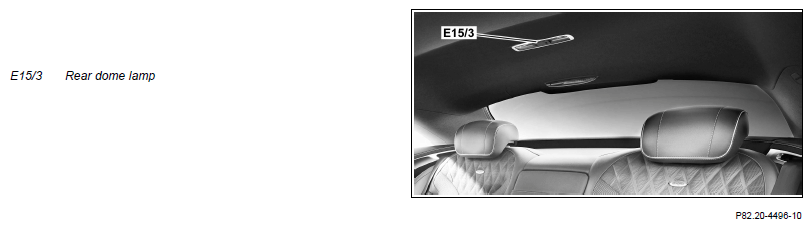

Shown on model 217.3

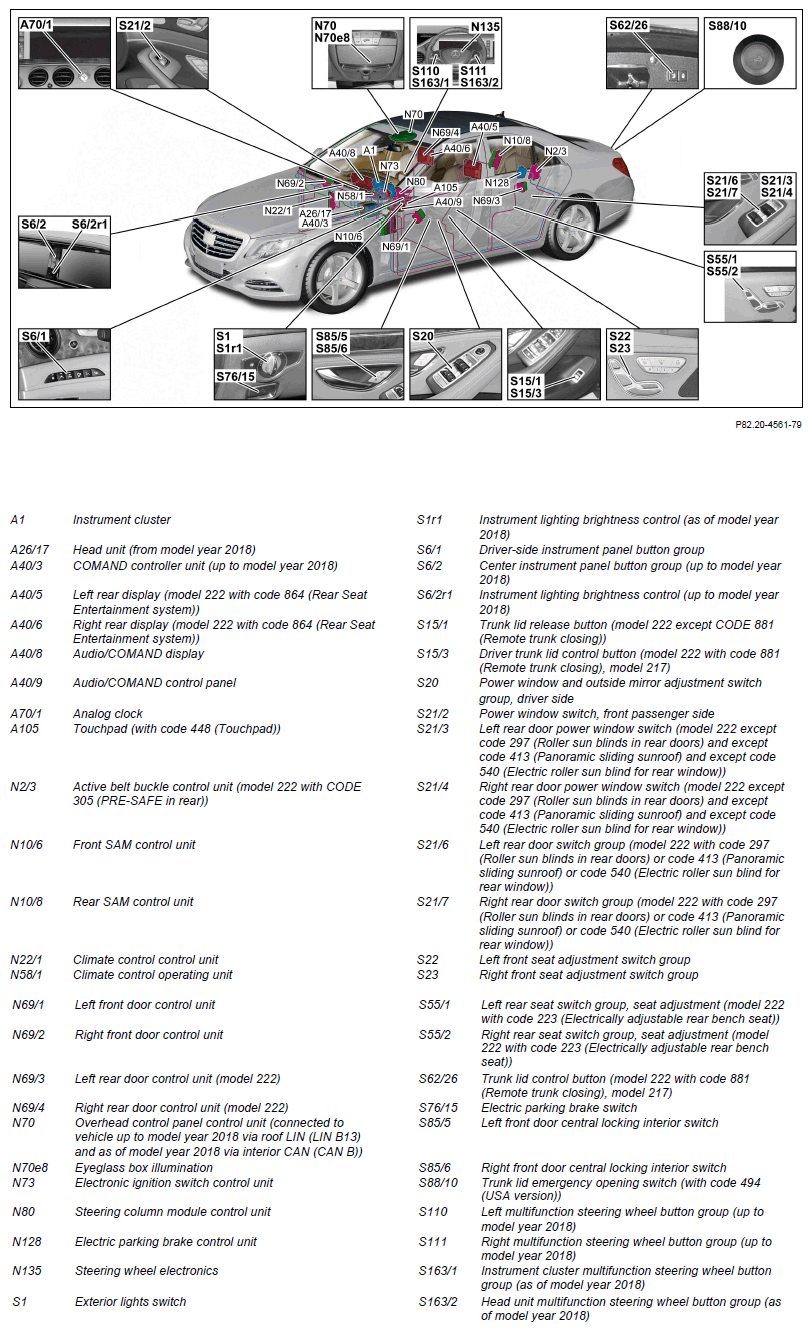

Search and symbol lighting, shown on model 222.0
Search and symbol lighting, shown on model 222.0
The following components are also installed in model 217, but they are not shown above:
- Rear dome lamp (E15/3)
- Rear dome lamp ambient lighting (E15/3e5) (model 217.3 with code 877 (Ambient lighting), model 217.4)
- Rear control unit (N22/6)
- Left rear seat heating switch (S51/3) (with code 872 (Rear seat heating))
- Right rear seat heating switch (S51/4) (with code 872 (Rear seat heating))
- Emergency call system button group (S93/3) (model 217.4 with code 351 (Emergency call system (HERMES)) or code 360 (HERMES UMTS) or code 362 (HERMES LTE))

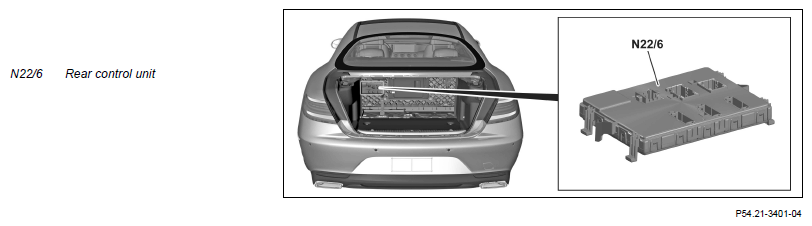

Shown on model 217.3

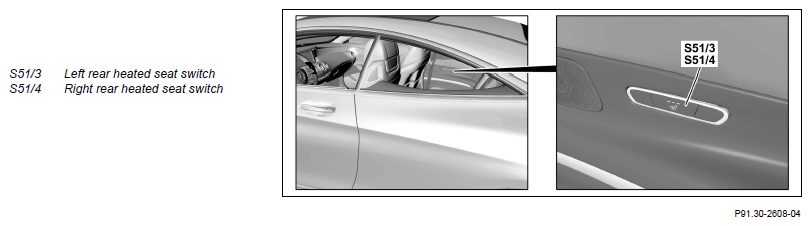

Shown on model 217.3

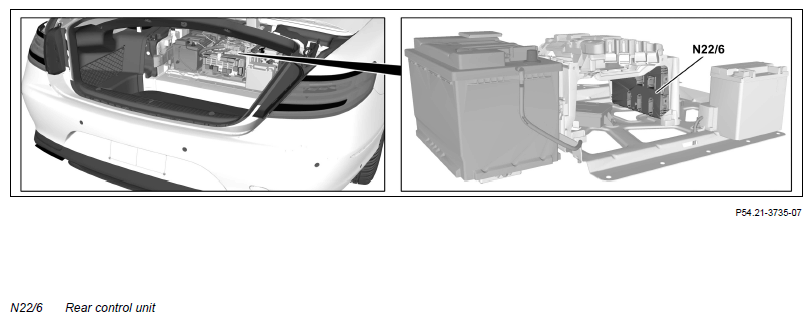

Shown on model 217.4
Shown on model 217.3

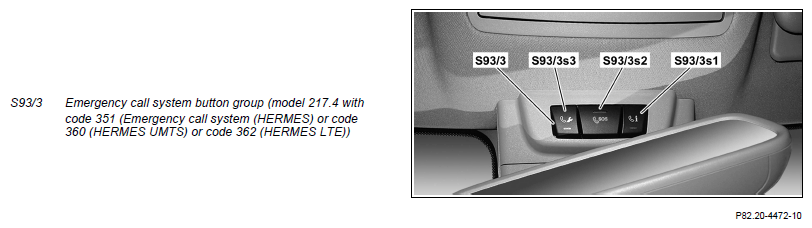

Shown on model 217.4 with code 351 (Emergency call system (HERMES)) or code 360 (HERMES UMTS) or code 362 (HERMES LTE)

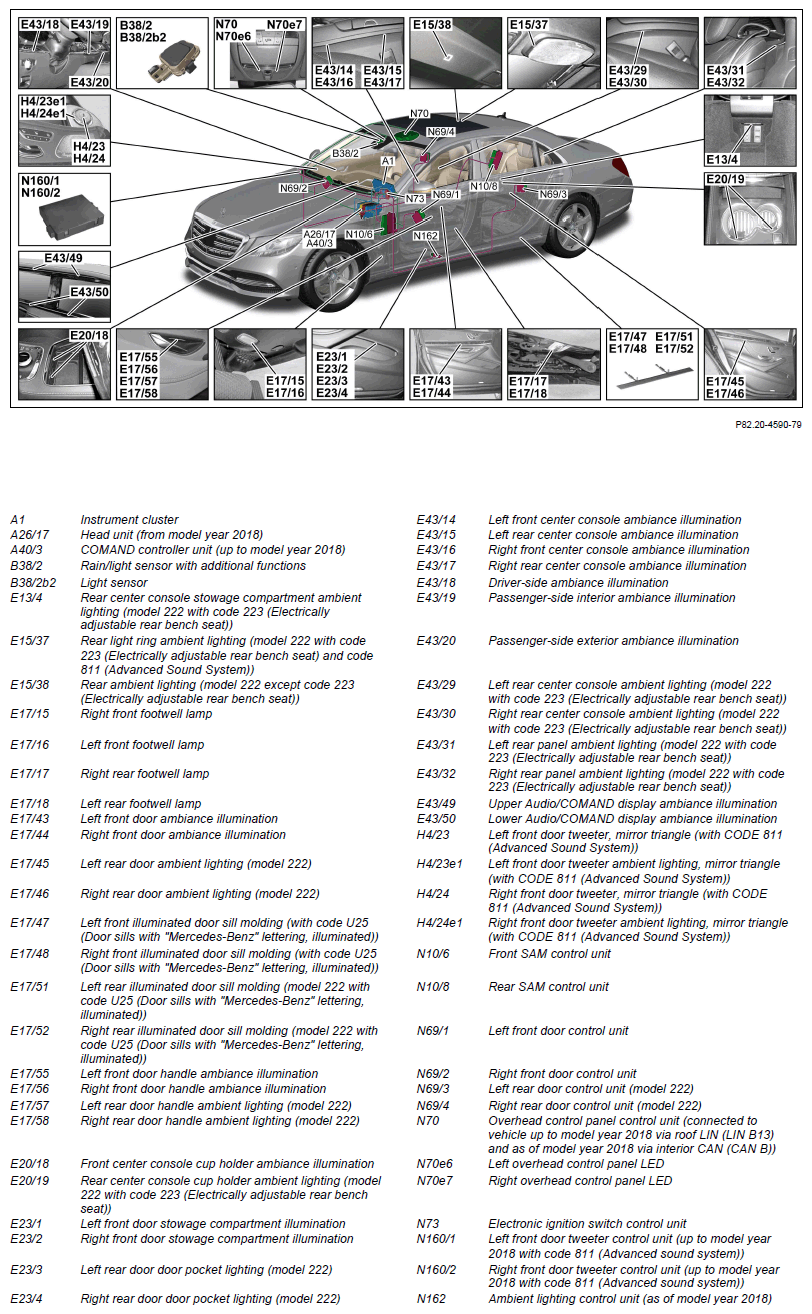

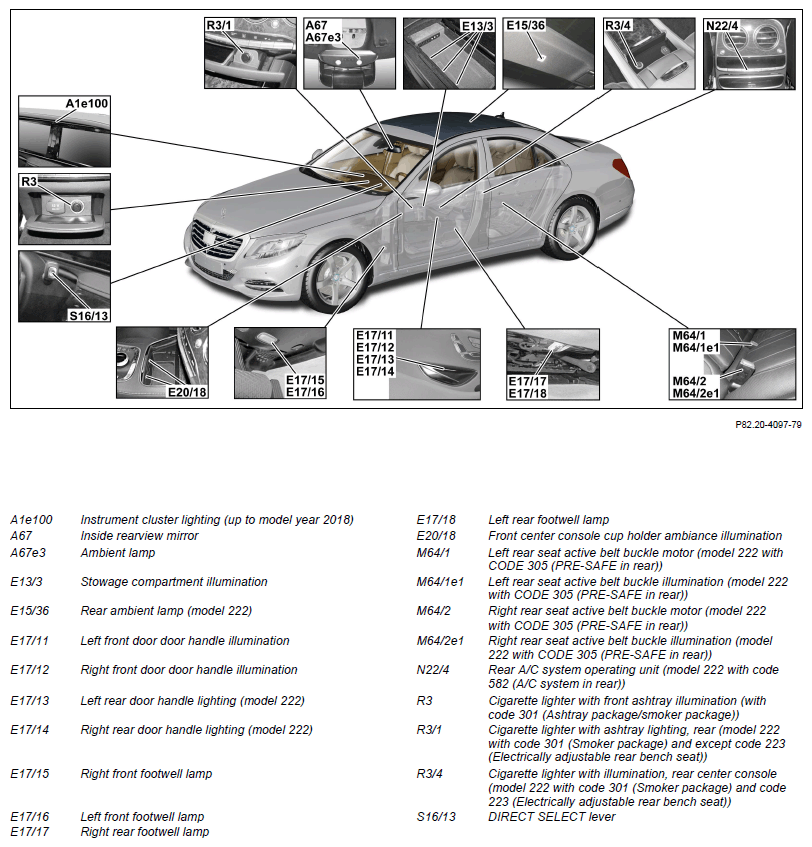

Ambient lighting (with code 877 (Ambient lighting)), shown on model 222.0
Model 217
The following component parts are also installed but are not shown here:
- Rear dome lamp (E15/3)
- Rear dome lamp ambiance illumination (E15/3e5)
Model 222.9
The following component parts are also installed but are not shown here:
- Left rear door ambient lighting (E44/1)
- Right rear door ambient lighting (E44/2)
Shown on model 217.3
| Component description for instrument cluster | Model 217, 222 up to model year 2018 A1 |
GF54.30-P-6000LF | |
| Model 217, 222 as of model year 2018 A1 |
GF54.30-P-6000LFM | ||
| Head unit, component description | Model 217, 222 as of model year 2018 A26/17 |
GF82.85-P-3140LFM | |
| Component description for COMAND controller unit | Model 217, 222 up to model year 2018 A40/3 |
GF82.85-P-3136LF | |
| Component description for rear display left/right | Model 222 with code 864 (Rear compartment entertainment package) A40/5, A40/6 |
GF82.90-P-4020LF | |
| Component description for Audio/COMAND display | Model 217, 222 up to model year 2018 A40/8 |
GF54.30-P-6150LF | |
| Model 217, 222 as of model year 2018 A40/8 |
GF54.30-P-6150LFM | ||
| Component description for Audio/COMAND control panel | Model 217, 222 up to model year 2018 A40/9 |
GF54.21-P-4501LF | |
| Model 217, 222 as of model year 2018 with code 448 (Touchpad) A40/9 |
GF54.21-P-4501LFM | ||
| Touchpad, component description | Model 217, 222 with code 448 (Touchpad) A105 |
GF54.21-P-4511LF | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005LF | |
| Active belt buckle control unit, component description | Model 222 with code 305 (Rear PRE-SAFE) N2/3 |
GF91.60-P-4122LF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080LF | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030LF | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250LF | |
| Rear climate control operating unit, component description | Model 222 with code 582 (Rear air conditioner) N22/4 |
GF83.40-P-3050LF | |
| Rear control unit, component description | Model 217 N22/6 |
GF54.21-P-4134LF | |
| Front climate control operating unit, component description | N58/1 | GF83.40-P-2260LF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009LF | |
| Component description for rear door control unit | Model 222 N69/3, N69/4 |
GF72.29-P-6021LF | |
| Component description for overhead control panel control unit | N70, S93/3 | GF82.20-P-5216LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Component description for steering column tube module control unit | Model 217, 222 up to model year 2018 N80 |
GF54.21-P-6051LF | |
| Model 217, 222 as of model year 2018 N80 |
GF54.21-P-6051LFM | ||
| Electric parking brake control unit, component description | Model 217, 222 up to model year 2018 N128 |
GF42.20-P-5005LF | |
| Steering wheel electronics control unit, component description | Model 217, 222 as of model year 2018 N135 |
GF82.90-P-4006LFM | |
| Ambiance illumination control unit, component description | Model 217, 222 with code 877 (ambient lighting) N162 |
GF82.20-P-5161LF | |
| Contents, function description of interior illumination (IBL) | GF82.20-P-0998LF |
