Electric Parking Brake Control Unit, Component Description - GF42.20-P-5005LF

Model 217

Model 222

up to model year 2018

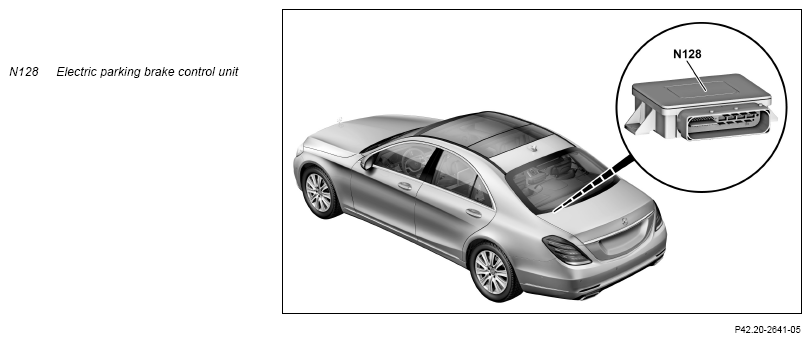

Shown on model 222

Location

The electric parking brake control unit is located at the left in the trunk behind the partition wall to the vehicle interior.

Tasks

The electric parking brake control unit has the following tasks:

• Reading in of signals
• Evaluation of input factors
• Actuation of components

Reading in of signals

The input factors are read in over the following connections:

• Direct line
• Periphery CAN (CAN PER)

Direct line

The signals from the following component are read in via direct lines:

• Status of electric parking brake switch (S76/15)

Peripherals CAN

The following information is read in via the peripherals CAN:

• Status circuit 15 ON, from the electronic ignition lock control unit (N73)
• Status of driver seat belt buckle switch (S68/3), from Supplemental Restraint System control unit (N2/10), over the user interface CAN (CAN HMI) and the electronic ignition lock control unit
• Status of trunk lid lock main detent switch (A85/5s1) from rear SAM control unit, over the interior CAN (CAN B) and the electronic ignition lock control unit
• Status of left front door first detent microswitch (A85s1), from left front door control unit (N69/1), via interior CAN to electronic ignition lock control unit
• Currently engaged drive range from fully integrated transmission control unit (Y3/8n4), drivetrain operational status, engine running and accelerator pedal position from ME-SFI control unit (N3/10) (with gasoline engine) or from CDI control unit (N3/9) (with diesel engine) via powertrain CAN and powertrain control unit (N127)
• Wheel speeds for determining the vehicle speed, from the Electronic Stability Program control unit (N30/4) over the chassis FlexRay (Flex E) and the electronic ignition lock control unit

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Actuation of components

The actuation of the components takes place via the following connections:

• Direct line
• Peripherals CAN

Direct line

The electric parking brake control unit actuates the left electric parking brake actuator motor (M76/1) and the right electric parking brake actuator motor (M76/2) via a direct line.

Peripherals CAN

The following components are actuated over the periphery CAN:

• Electronic Stability Program control unit (introduction of emergency braking) over the electronic ignition lock control unit and chassis FlexRay
• Instrument cluster (A1) (display of messages and warnings) via electronic ignition lock control unit and user interface CAN

Wiring diagram for electric parking brake control unit

PE42.20-P-2101-97SEA
