Front Climate Control Operating Unit, Component Description - GF83.40-P-2260LF
Model 217, 222

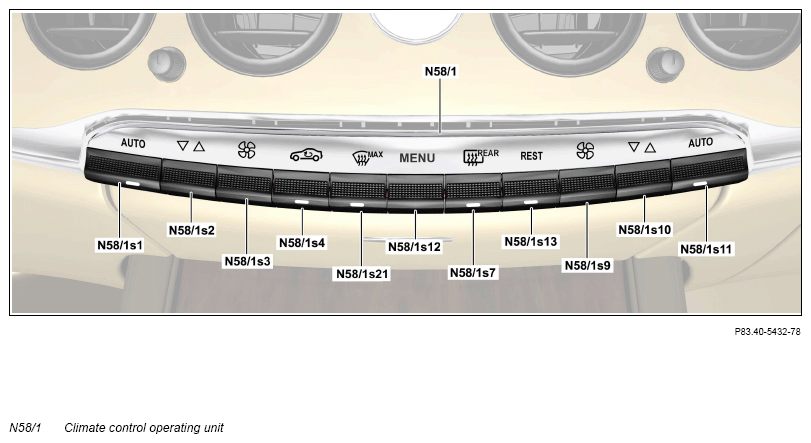

Model 217, 222 (except model 222.163/173) except code 228 (Stationary heater)
| Control element | Controllable function | Operating feedback |
|---|---|---|
| Left AUTO button (N58/1s1) | Left automatic mode ON | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Left temperature selection button (N58/1s2) | Setting of the specified temperature at left front or in left rear (model 222 with code 582 (Rear air conditioning system)) | Audio/COMAND display (A40/8) |
| Left blower button (N58/1s3) | Set blower setting at left or in rear (model 222 with code 582 (Rear air conditioning system)) | Audio/COMAND display (A40/8) |
| Air recirculation mode button (N58/1s4) | Air recirculation mode ON/OFF | Integrated LED |
| Rear window heater button (N58/1s7) | Rear window heater ON/OFF | Integrated LED |
| Right blower button (N58/1s9) | Set blower setting at right or in rear (model 222 with code 582 (Rear air conditioning system)) | Audio/COMAND display (A40/8) |
| Right temperature selection button (N58/1s10) | Setting of the specified temperature at right front or in right rear (model 222 with code 582 (Rear air conditioning system)) | Audio/COMAND display (A40/8) |
| Right AUTO button (N58/1s11) | Right automatic mode ON | Audio/COMAND display (A40/8) |
| Climate control menu button (N58/1s12) | Activate air conditioning menu in Audio/COMAND display (A40/8) | Display in Audio/COMAND display (A40/8) |
| Residual heat ON/OFF button (N58/1s13) | Residual heat utilization ON/OFF | Integrated LED |
| Defrosting button (N58/1s21) | Windshield defrost function ON/OFF | Integrated LED and indicator in the Audio/COMAND display (A40/8) |

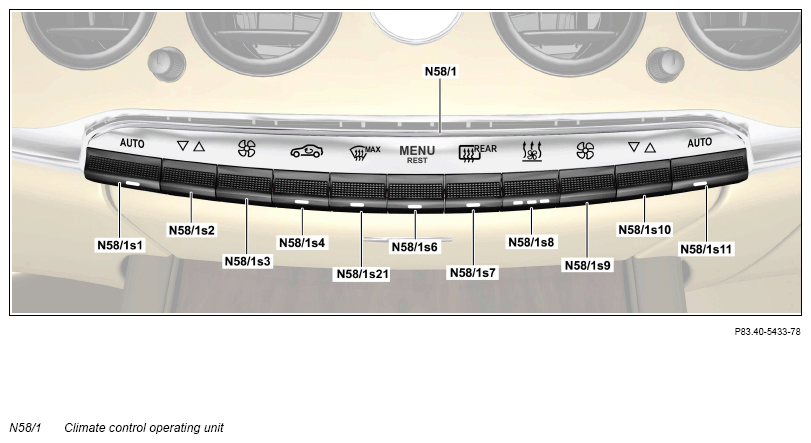

Model 217.3, 222 (except model 222.163/173) with code 228 (Stationary heater)
| Control element | Controllable function | Operating feedback |
|---|---|---|
| Left AUTO button (N58/1s1) | Left automatic mode ON | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Left temperature selection button (N58/1s2) | Setting of the specified temperature at left front or in left rear (model 222 with code 582 (Rear air conditioning system)) | Audio/COMAND display (A40/8) |
| Left blower button (N58/1s3) | Set blower setting at left or in rear (model 222 with code 582 (Rear air conditioning system)) | Audio/COMAND display (A40/8) |
| Air recirculation mode button (N58/1s4) | Air recirculation mode ON/OFF | Integrated LED |
| Climate control menu and residual heat ON/OFF button (N58/1s6) | Activate air conditioning menu in Audio/COMAND display (A40/8) and residual heat utilization ON/OFF | Integrated LED (only for residual heat with circuit 15 "Off") otherwise indicator in Audio/COMAND display (A40/8) |
| Rear window heater button (N58/1s7) | Rear window heater ON/OFF | Integrated LED |
| Stationary heater button (N58/1s8) | Stationary heater and heater booster function ON/OFF | Integrated LED |
| Right blower button (N58/1s9) | Set blower setting at right or in rear (model 222 with code 582 (Rear air conditioning system)) | Audio/COMAND display (A40/8) |
| Right temperature selection button (N58/1s10) | Setting of the specified temperature at right front or in right rear (model 222 with code 582 (Rear air conditioning system)) | Audio/COMAND display (A40/8) |
| Right AUTO button (N58/1s11) | Right automatic mode ON | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Defrosting button (N58/1s21) | Windshield defrost function ON/OFF | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
Model 222.163/173
| Control element | Controllable function | Operating feedback |
|---|---|---|
| Left AUTO button (N58/1s1) | Left automatic mode ON | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Left temperature selection button (N58/1s2) | Setting of the specified temperature at left front or in left rear (model 222 with code 582 (Rear air conditioning system)) | Audio/COMAND display (A40/8) |
| Left blower button (N58/1s3) | Set blower setting at left or in rear (model 222 with code 582 (Rear air conditioning system)) | Audio/COMAND display (A40/8) |
| Air recirculation mode button (N58/1s4) | Air recirculation mode ON/OFF | Integrated LED |
| Climate control menu and residual heat ON/OFF button (N58/1s6) | Activate air conditioning menu in Audio/COMAND display (A40/8) and residual heat utilization ON/OFF | Integrated LED (only for residual heat with circuit 15 "Off") otherwise indicator in Audio/COMAND display (A40/8) |
| Rear window heater button (N58/1s7) | Rear window heater ON/OFF | Integrated LED |
| Right blower button (N58/1s9) | Set blower setting at right or in rear (model 222 with code 582 (Rear air conditioning system)) | Audio/COMAND display (A40/8) |
| Right temperature selection button (N58/1s10) | Setting of the specified temperature at right front or in right rear (model 222 with code 582 (Rear air conditioning system)) | Audio/COMAND display (A40/8) |
| Right AUTO button (N58/1s11) | Right automatic mode ON | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Defrosting button (N58/1s21) | Windshield defrost function ON/OFF | Integrated LED and indicator in the Audio/COMAND display (A40/8) |
| Pre-entry climate control button (N58/1s23) | Pre-entry climate control ON/OFF | Integrated LED |
The switching off of the air conditioning system or the switching off of the refrigerant compressor is only possible in the menu of the COMAND controller unit (A40/3) (up to model year 2018) or head unit (A26/17) (as of model year 2018).
The rear air conditioning system can be operated from the front using the climate control operating unit or the air conditioning menu.
Operation of the rear air conditioning system is then not possible in the rear using the rear climate control operating unit (N22/4).
Location
The climate control operating unit is located in the center console.
Task
The climate control operating unit has the following tasks:
- Reception of signals and requests
- Transmission of signals and requests
Reception of signals and requests
The climate control operating unit receives requests for function feedback via the climate control LIN (LIN B8-3) for the following functions:
- Climate control
- Recirculated air mode
- Windshield defrost function
- Rear window heater (R1)
- Stationary heater or heater booster function (model 217.3, 222 with code 228 (Stationary heater))
- Pre-entry climate control (model 222.163/173)
- Residual heat utilization
Transmission of signals and requests
The climate control operating unit sends function requests via the climate control LIN that can be selected via the following controls:
- Left AUTO button
- Left temperature selection button
- Left blower button
- Air recirculation mode button
- Defrosting button
- Climate control menu and residual heat ON/OFF button (model 217.3, 222 with code 228 (Stationary heater))
- Rear window heater button
- Stationary heater button (model 217.3, 222 with code 228 (Stationary heater))
- Right blower button
- Right temperature selection button
- Right AUTO button
- Climate control menu button (except CODE 228 (Stationary heater))
- Residual heat ON/OFF button (except CODE 228 (Stationary heater))
- Pre-entry climate control button (model 222.163/173)
| Wiring diagram for automatic air conditioning (AAC [KLA]) control unit | Model 217, 222 up to model year 2018 | PE83.40-P-2101-97SEA | |
| Model 217, 222 as of model year 2018 | PE83.40-P-2101-97SED |
