Remove/Install Side Paneling In Trunk - AR68.30-P-4800LCA
Model 217.4
MODIFICATION NOTES
| 26.07.2017 | Method description modified for vehicles as of model year 2018. | Graphic P68.30-4006-05 |

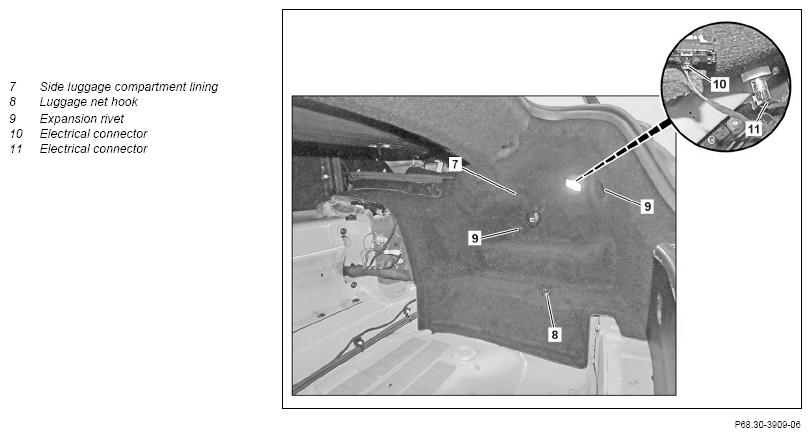

Shown on right side trunk lining up to model year 2018
Shown on right side trunk lining up to model year 2018

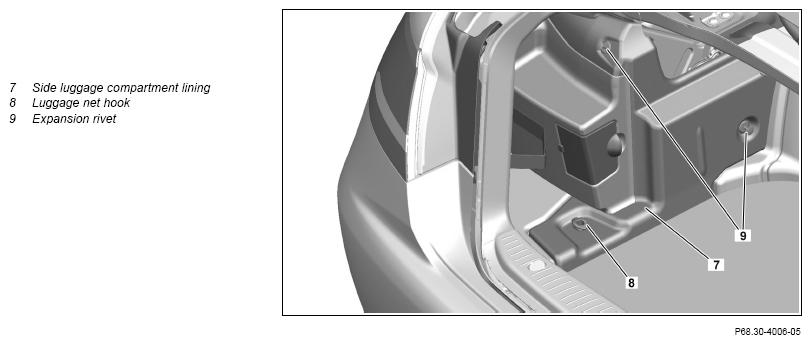

Shown on vehicle with code 865 (TV tuner) as of model year 2018
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove upper trunk paneling | AR68.30-P-4604LCA | |

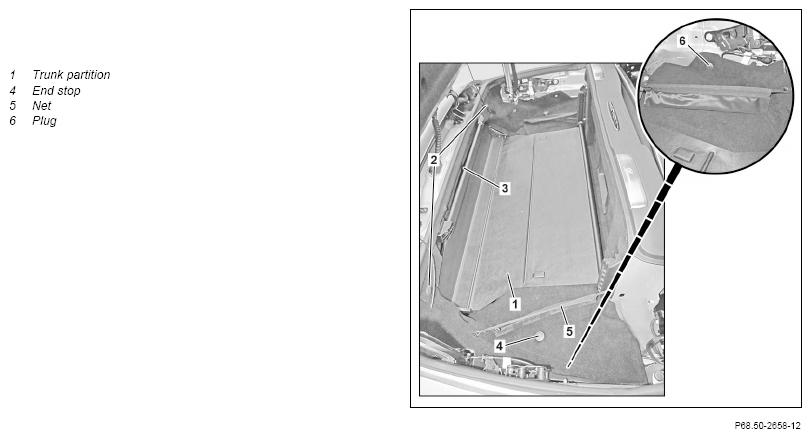

| 2 | Unhook net (5) from left and right side trunk paneling (7) | ||
| 3 | Remove stop plug (6) from left and right side trunk paneling (7) | ||
| 4 | Remove end stop (4) from left and right side trunk paneling (7) | ||
| 5 | Release soft top compartment lid and close | AR77.30-P-1030-01LCA | |
| 6 | Remove electric motor for trunk partition (1) | When removing left side left side trunk paneling (7). | AR68.50-P-3004LCA |
| 7 | Remove luggage compartment paneling | AR68.30-P-4820LCA | |
| 8 | Remove front trunk trim | AR68.30-P-4602LCA | |
| 9 | Remove rear trunk paneling | AR68.30-P-4603LCA | |
| 10 | Remove luggage net hook (8) from left or right side trunk lining (7) | ||
| 11 | Remove expansion rivet (9) from left and right side trunk paneling (7) | ||
| 12 | Slightly pull left and right side trunk paneling (7) toward inside | ||
| 13 | Disconnect electrical connector (10) from left and right side trunk paneling | ||
| 14 | Release and disconnect electrical connector (11) | When removing right side trunk paneling (7). | |
| 15 | Lift trunk partition (1) and remove from left and right side trunk paneling (7) | ||
| 16 | Install in the reverse order |
