Remove/Install Upper Luggage Compartment Lining - AR68.30-P-4604LCA
Model 217.4
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Notes on sensor system for trunk lid opening/closing | Model 217.4 with code P17 (KEYLESS-GO package) |
AH80.61-P-0001-01A | |
| Remove/install | |||

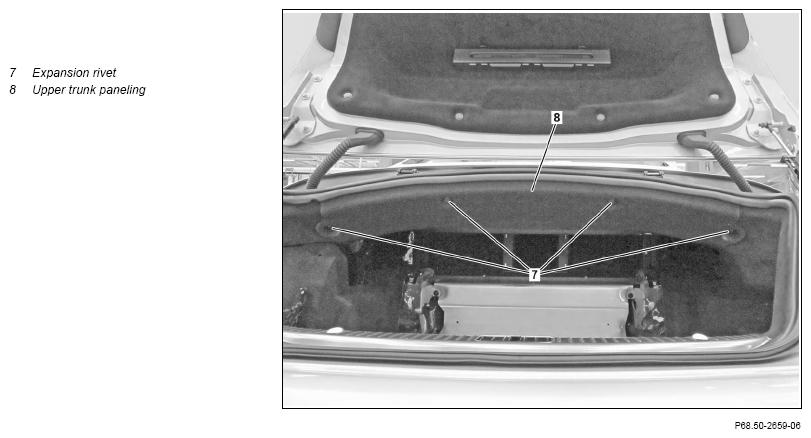

| 1 | Remove expansion rivets (7) | ||
| 2 | Close trunk lid | ||
| 3 | Position soft top compartment lid and soft top bow upright and secure | AR77.30-P-1030-01LCA | |

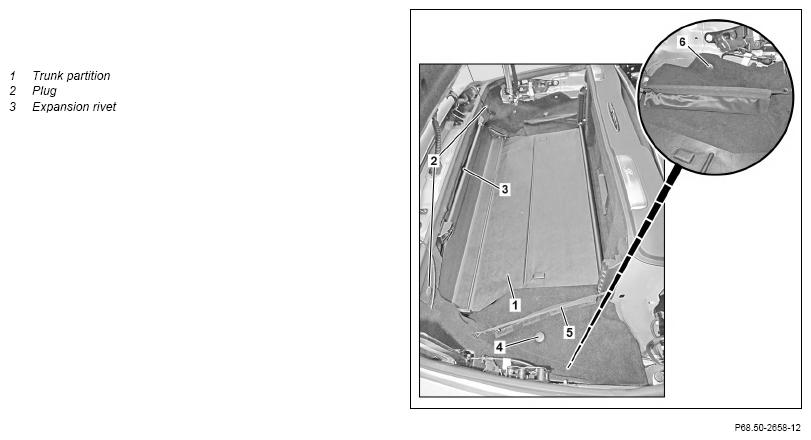

| 4 | Remove trunk partition (1) in rear area | AR68.50-P-3003LCA | |
| 5 | Remove stop plugs (2) | ||
| 6 | Remove expansion rivet (3) | ||
| 7 | Remove upper trunk paneling (8) | ||
| 8 | Install in the reverse order |
