Remove/Install Trunk Floor Paneling - AR68.30-P-4820LCA
Model 217.4
Shown on model 217.4 except code 811 (Advanced sound system)
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. Model 217.4 with code P17 (KEYLESS-GO package) | AS00.00-Z-0009-01A | |
| Notes on sensor system for trunk lid opening/closing | Model 217.4 with code P17 (KEYLESS-GO package) |
AH80.61-P-0001-01A | |
| Remove/install | |||

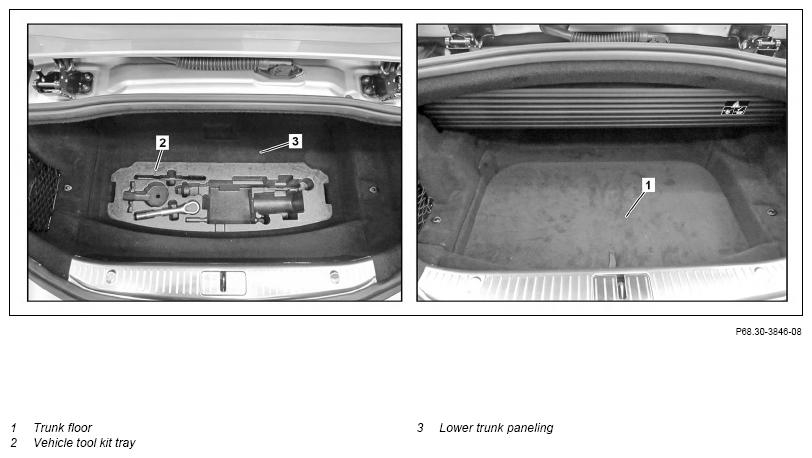

| 1 | Remove trunk floor (1) | ||
| 2 | Take out vehicle tool kit tray (2) | ||
| 3 | Remove subwoofer | Model 217.4 with code 811 (Advanced sound system) |
AR82.62-P-7841LC |
| 4 | Remove lower trunk paneling (3) | ||
| 5 | Install in the reverse order |
