Remove/Install Rear Trunk Lining - AR68.30-P-4603LCA
Model 217.4
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. Model 217.4 with code P17 (KEYLESS-GO package) | AS00.00-Z-0009-01A | |
| Notes on sensor system for trunk lid opening/closing | Model 217.4 with code P17 (KEYLESS-GO package) |
AH80.61-P-0001-01A | |
| Remove/install | |||

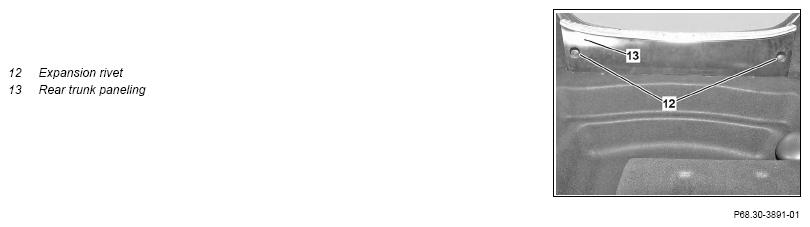

| 1 | Remove expansion rivet (12) | ||
| 2 | Unclip rear trunk paneling (13) upward and remove | ||
| 3 | Install in the reverse order |
