Remove/Install Electric Motor For Trunk Partition - AR68.50-P-3004LCA
Model 217.4
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on sensor system for trunk lid opening/closing | Model 217.4 with code P17 (KEYLESS-GO package) |
AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Position soft top bow vertically and secure | AR77.30-P-1030-01LCA | |

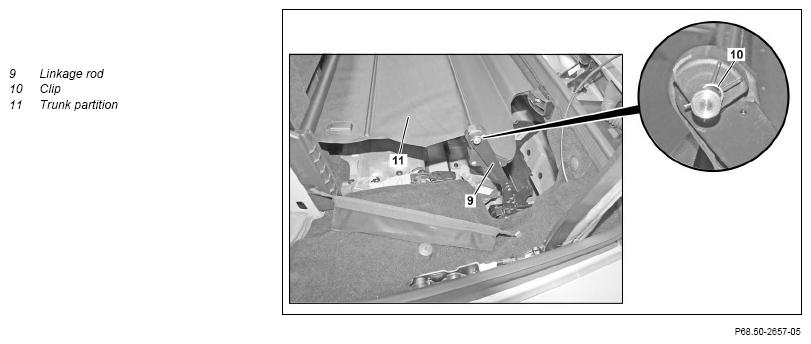

| 2 | Remove clip (10) | ||
| 3 | Unhook trunk partition (11) from linkage (9) | ||
| 4 | Unlock soft top and close fully | AR77.30-P-1030-01LCA | |

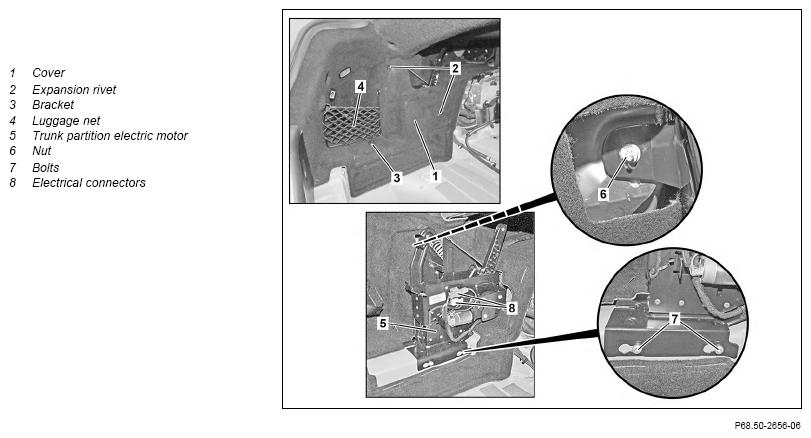

| 5 | Remove luggage net (4) | ||
| 6 | Remove bracket (3) | ||
| 7 | Remove expansion rivets (2) | ||
| 8 | Remove trim (1) | ||
| 9 | Remove bolts (7) | *BA00.10-P-1002-04A | |
| 10 | Unscrew nut (6) | *BA00.10-P-1002-04A | |
| 11 | Release and disconnect electrical connectors (8) | ||
| 12 | Remove trunk partition electric motor (5) | ||
| 13 | Install in the reverse order |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6X1 | Nm | 9 | 13 |
