Bring Soft Top To Intermediate Position And Secure - AR77.30-P-1030-01LCA

Model 217.4

Courtesy of MERCEDES-BENZ USA

1. Open soft top (1) by actuating soft top until soft top compartment cover (2) vertically and soft top (1) lays down in soft top compartment.

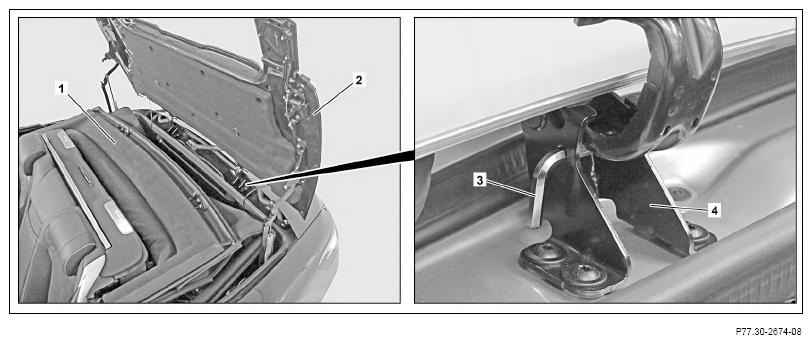

2. Insert Allen key (3) into hinge (4) through holes.

   Before closing soft top compartment lid (2) always pull out Allen key (3).

   Otherwise the soft top compartment lid (2) can be damaged.

   Courtesy of MERCEDES-BENZ USA

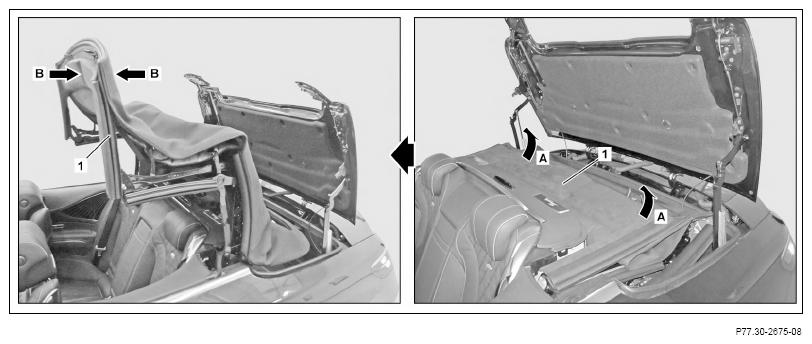

3. Manually lift soft top (1) out of soft top compartment to upright position (arrows B).

   Simultaneously lift soft top (1) on left and right.

   Otherwise the soft top mechanism can be damaged.

   Helper required.

4. Manually lay soft top (1) down on windshield frame.

   If necessary.

5. Position soft top bow (5) upright and hold with aid of helper.

   If necessary.
