Remove/Install Front Luggage Compartment Lining - AR68.30-P-4602LCA
Model 217.4
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Actuate button for trunk partition | ||
| 2 | Remove trunk floor | ||

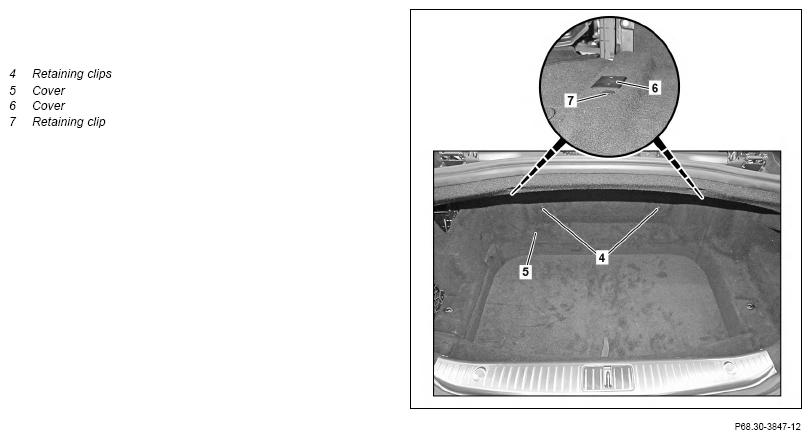

| 3 | Unclip retaining clips (4, 7) | ||
| 4 | Remove covers (6) | ||
| 5 | Remove paneling (5) and remove toward rear | ||
| 6 | Install in the reverse order |
