Remove/Install Dashboard - AR68.10-P-1000LC

Model 217

Shown on vehicle with code 463 (Head-up-Display) and code 811 (Advanced Sound-System)

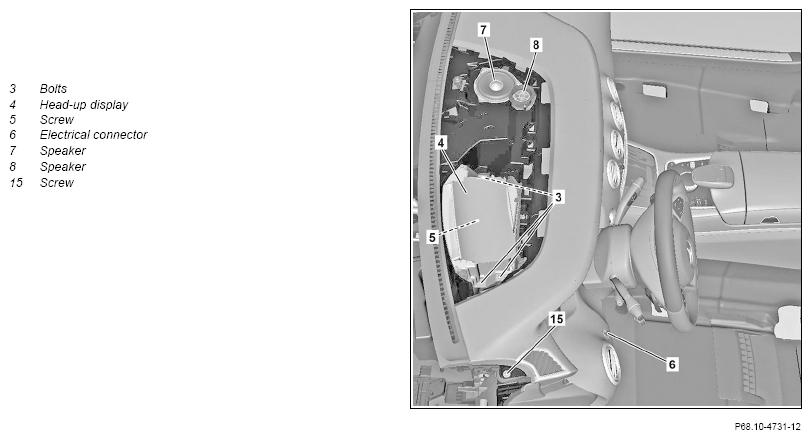

G15300755Courtesy of MERCEDES-BENZ USA

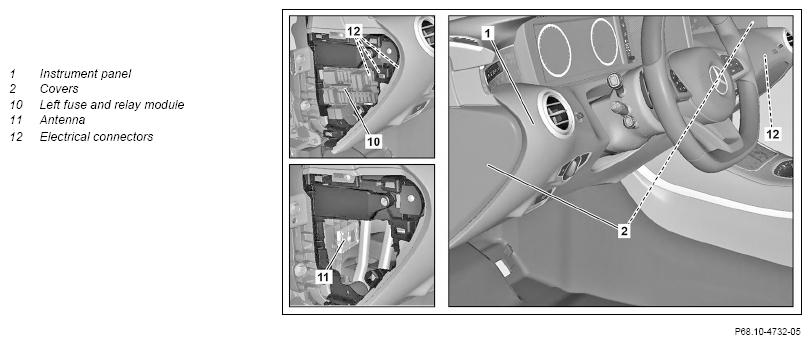

G15300756Courtesy of MERCEDES-BENZ USA

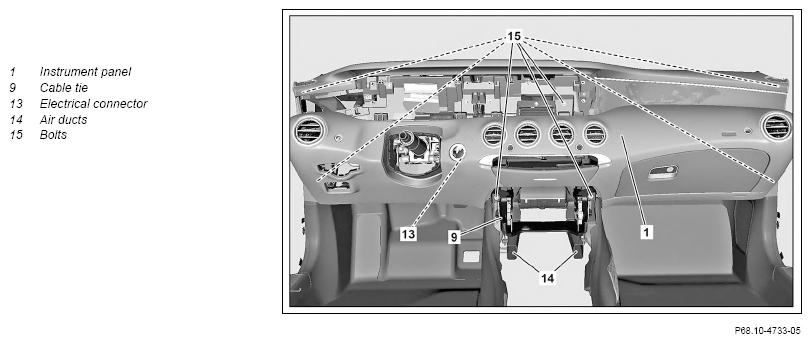

G15300757Courtesy of MERCEDES-BENZ USA
Topical note  Notes on avoiding damage to optical fibers during repair work   AH82.60-P-0001-05AK
Topical note  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVINGINSTALLING Remove/install
1 Remove center console Model 217 up to model year 2018 AR68.20-P-2000LF
Model 217 as of model year 2018 AR68.20-P-2000LFM
2 Remove covers (2)
3 Remove glove compartment   AR68.10-P-1400LC
4 Remove trim from A-pillar Model 217.4 AR68.30-P-4050LCA
Model 217.3 AR68.30-P-4050LF
5 Remove steering column tube module   AR54.25-P-2802LF
6 Remove display module   AR54.30-P-6023LF
7 Remove center dashboard cover   AR68.10-P-3430LF
8 Remove insulation from head-up-display (4) Model 217 with code 463 (Head-up display)
9 Unscrew bolts (3) from head-up-display (4) Model 217 with code 463 (Head-up display)
10 Remove head-up-display (4) and disconnect electrical connector Model 217
with code 463 (Head-up display)
IMPORTANT The head-up-display (4) remains in the instrument panel (1).

11 Remove speaker (7)
12 Remove speaker (8) Model 217 with code 811 (Advanced sound system)
13 Remove screw/bolt (5)
14 Remove left trim piece   AR68.10-P-1180LC
15 Remove side air vent   AR83.10-P-4740LF
16.1 Remove COMAND controller unit Model 217 up to model year 2018 AR82.85-P-1100LF
16.2 Remove head unit Model 217 as of model year 2018 AR82.85-P-1101LFM
17 Disconnect cable tie (9) INSTALLATION IMPORTANT : Replace cable tie (9).
18 Remove cover below instrument panel (1) on left   AR68.10-P-1500LF
19 Disconnect electrical connector (6) from potentiometer
20 Unclip left fuse and relay module (10) from instrument panel (1)
21 Unclip fuse multipoint connector from left fuse and relay module (10)
22 Unclip antenna (11) from instrument panel (1) on driver side
23 Remove light switch module   AR54.25-P-3270LF
24 Remove the electric parking brake switch   AR42.20-P-0505LF
25 Disconnect electrical connections (12)
26 Disconnect electrical connector (13) from electronic ignition lock (EZS)
27 Remove air duct (14) from retaining frame on operating unit
28 Remove screw/bolt (15)
29 Carefully remove dashboard (1) from vehicle IMPORTANT Helper required.
IMPORTANT Model 217 with code 463 (Head-up display)
For this purpose slightly lift head-up-display (4).

30 Install in the reverse order
