Remove/Install Trim Strip On Dashboard - AR68.10-P-1180LC

MODEL 217

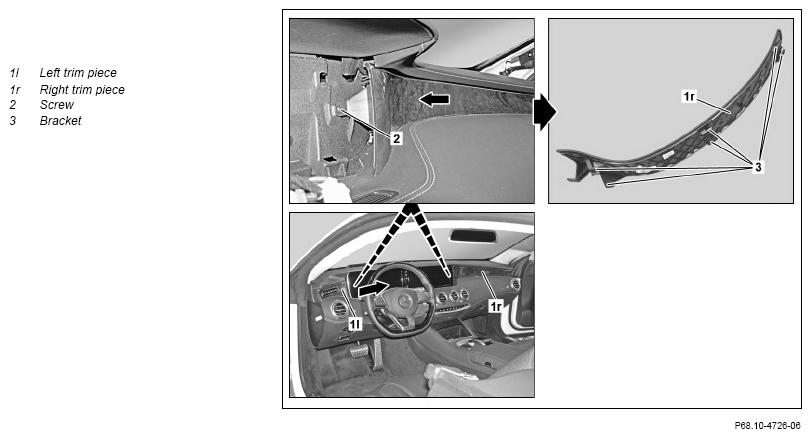

Fig 1: Trim Strip On Dashboard Component Location - Model 217

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove display module		AR54.30-P-6023LF
2	Remove bolt (2)
3	Move trim piece(s) (1l, 1r) to steering wheel (arrow)
4	Remove trim piece(s) (1l, 1r)	: The brackets (3) of the trim piece (1l, 1r) should be located in the guides of the instrument cluster.
5	Install in the reverse order
